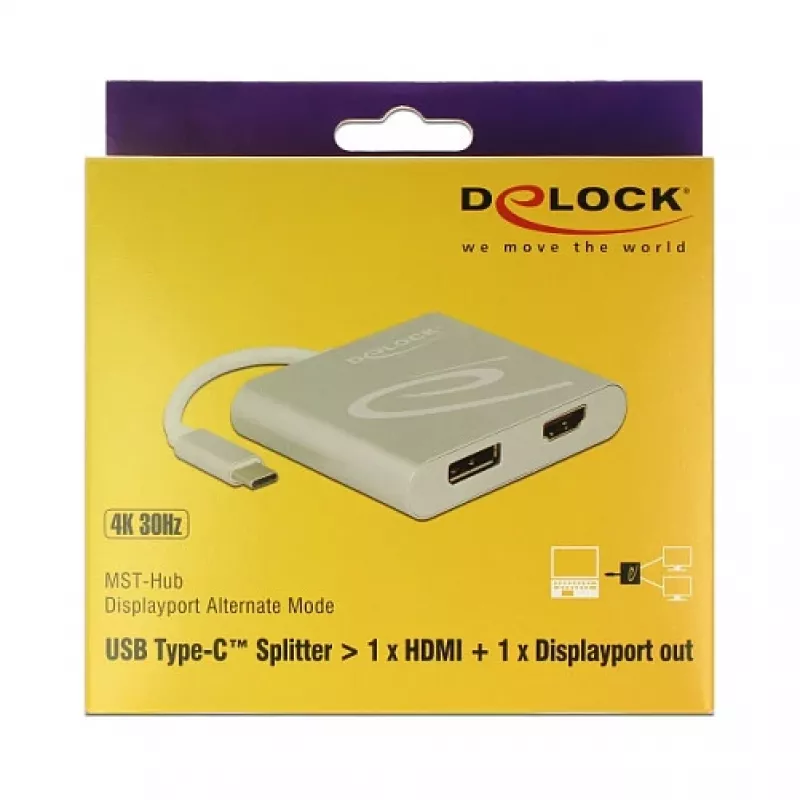

Adaptador gráfico USB DeLOCK 87716 2560 x 1440 píxeles plateado

The DeLOCK 87716 USB graphics adapter enables connecting an additional monitor to a computer via a USB-C interface that supports DisplayPort Alt Mode. It provides a DisplayPort output plus an HDMI output so two monitors can be operated simultaneously. The DisplayPort output is DP++ (dual-mode) allowing the connection of HDMI or DVI displays with a suitable adapter. The adapter is finished in silver and supports resolutions up to 2560 x 1440 pixels, with compatibility for video modes up to 2160p.

Advantages

The adapter lets you add a second display without internal graphics changes and offers both DisplayPort and HDMI outputs for flexible monitor selection. DP++ on the DisplayPort output allows use with HDMI or DVI monitors via passive adapters. The device supports high resolutions up to 2560 x 1440 px and higher video modes up to 2160p, and its plug-and-play design simplifies installation on systems with DisplayPort alternate mode over USB-C.

Suitable for

• Extending desktop workspace with a second monitor
• Connecting a DisplayPort and an HDMI monitor simultaneously
• Using HDMI or DVI monitors via DP++ with a passive adapter
• Home office, office work, and multimedia playback at up to 2560 x 1440 pixels

Key specifications

• Brand: DELOCK
• Model / MPN: 87716
• Colour: Silver
• Inputs: USB-C (requires DisplayPort Alt Mode)
• Outputs: DisplayPort (DP++, dual-mode) and HDMI
• Maximum supported resolution: 2560 x 1440 pixels (supports video modes up to 2160p)
• EAN: 4043619877164

How to use

Connect the adapter to a computer USB-C port that supports DisplayPort Alternate Mode. Attach one monitor to the DisplayPort output and another to the HDMI output. If connecting an HDMI or DVI monitor to the DisplayPort output, use a suitable passive DP-to-HDMI or DP-to-DVI adapter because the DisplayPort output supports DP++. The system should recognise the additional displays automatically; adjust resolution and display arrangement in the operating system display settings as needed.

Recommendations

Use a USB-C port with DisplayPort Alt Mode and a compatible graphics-capable host. For best image quality, use quality display cables and, when required, a certified passive DP-to-HDMI/DVI adapter. Verify the host supports the desired combined resolutions when driving two monitors simultaneously.
