Adaptador gráfico USB Vivolink VLUSBCHUB3 con soporte multipantalla

The Vivolink VLUSBCHUB3 4K USB-C HUB is a compact meeting-room hub that functions like a docking station, providing power, video and peripheral connectivity for video conferencing systems. Designed to be mounted under the meeting table, the hub supplies 4K HDMI video with audio, full USB device access and a wired LAN connection when a single USB-C cable is connected to the laptop. The unit supports DisplayLink, DP Alt Mode and DisplayPort; MacBooks require the DisplayLink Manager application to be installed for full functionality.

Advantages

This USB-C hub charges the connected laptop while delivering 4K video and audio via HDMI and providing full access to USB devices in the room. It includes a LAN port for a stable cabled network connection and is suitable for fixed installation under meeting desks. The package contains a 100W USB-C power supply with mounting bracket and both UK and EU power cables, simplifying deployment in conference rooms.

Suitable for

• Conference rooms and huddle spaces
• Video conferencing systems and meeting-room PC setups
• Single-cable laptop connection for AV and network access
• Multi-display or 4K presentation setups

Key specifications

• Model: Vivolink VLUSBCHUB3
• Video output: HDMI (4K supported)
• Supported modes: DisplayLink, DP Alt Mode, DisplayPort

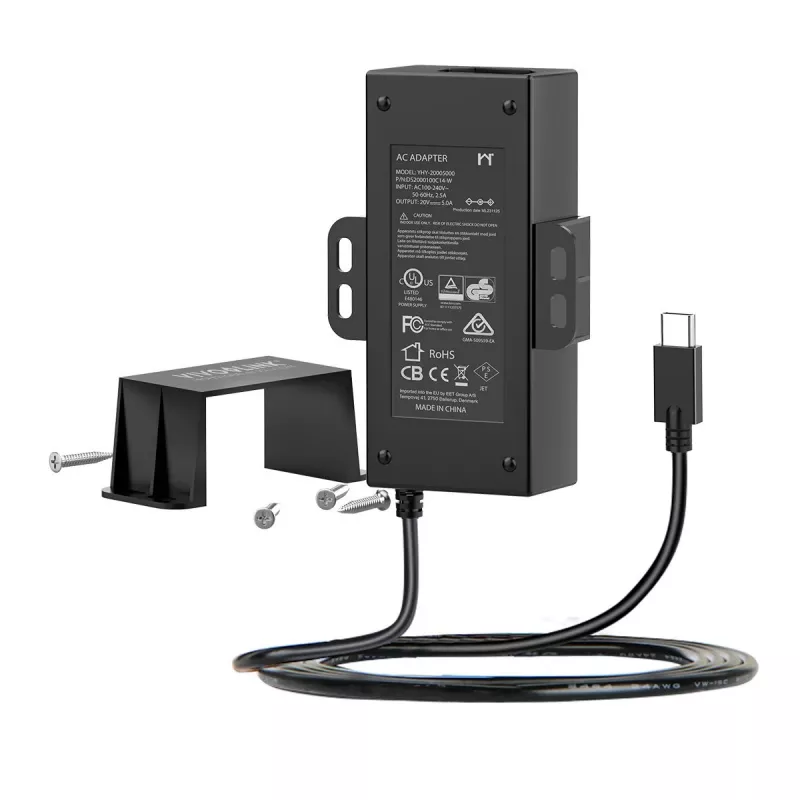

• Power delivery: 100W USB-C PSU included
• Network: Gigabit LAN port
• Mounting: Designed for under-desk installation; PSU bracket included

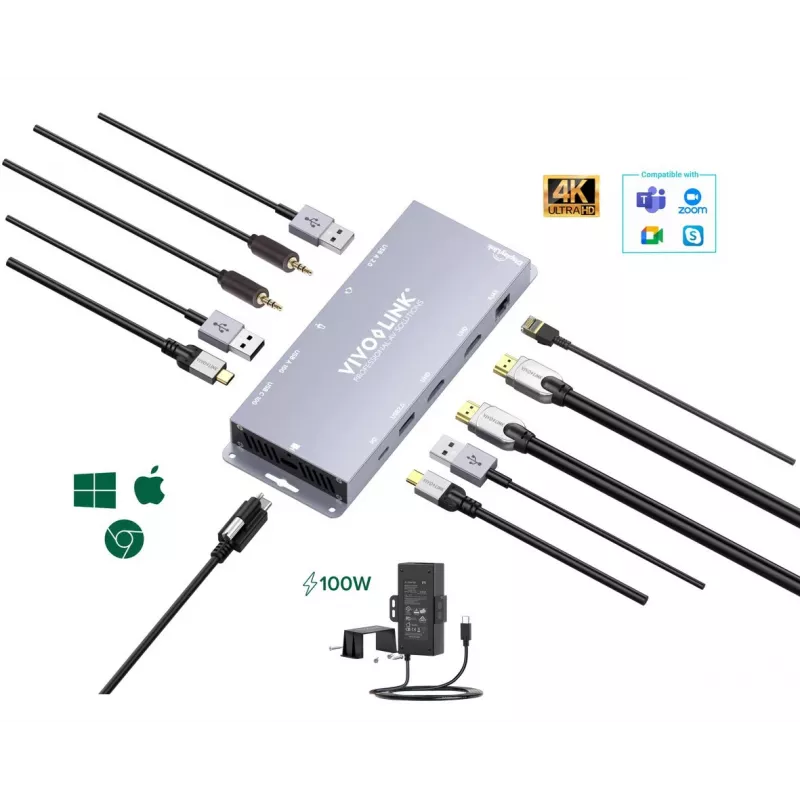

• Package contents: 1× HUB, 1× 100W USB-C PSU with mount, 1× PSU bracket, 1× UK power cable (Type G, 1.2 m), 1× EU power cable (Type C, 1.2 m), 4× adhesive cable fixers

How to use

Mount the Vivolink hub under the meeting table using the supplied bracket, connect the 100W USB-C PSU and the appropriate regional power cable, and route HDMI and LAN cables as needed. For a laptop connection, attach the recommended Vivolink PROUSBCMM or PROUSBCMMS cable with screw lock between the PC and the hub. When connected, the laptop will receive power, access USB peripherals and output video and audio via the HDMI port. For 4K at 60 Hz performance, use the recommended 2 m PROUSBCMM2 host cable and a long-distance HDMI cable such as PROHDMIOP20.

Recommendations

Ensure MacBook users install the DisplayLink Manager from https://www.synaptics.com/products/displaylink-graphics. Use the Vivolink PROUSBCMM or PROUSBCMMS screw-lock cable for secure connection; for 4K@60Hz use the PROUSBCMM2 host cable and a suitable high-quality HDMI cable for long runs.
