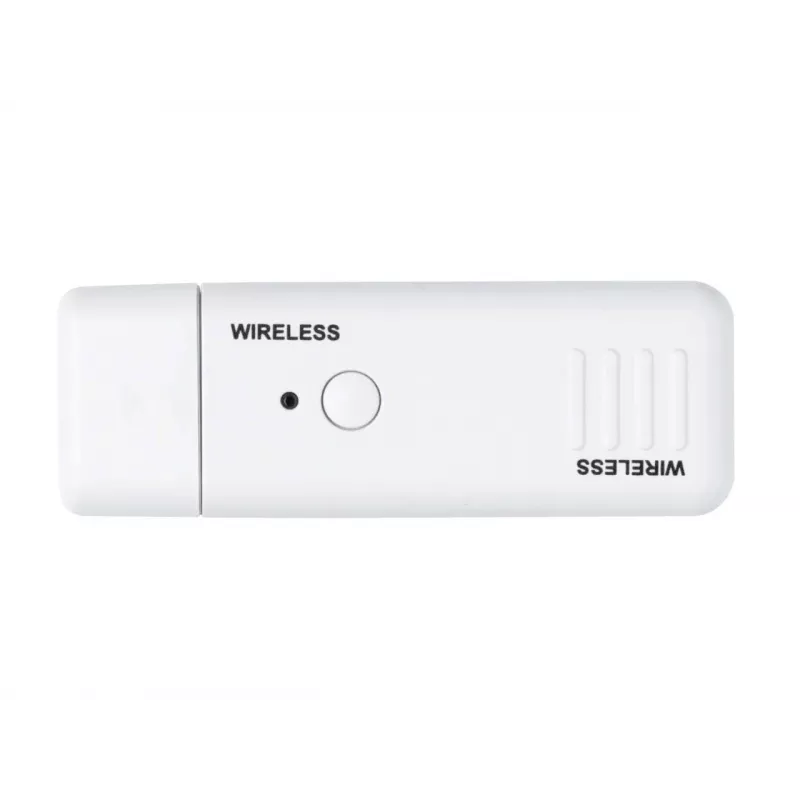

Adaptador inalámbrico NEC NP05LM2

The NEC NP05LM2 is a compact wireless adapter for NEC projectors and conference equipment that enables image transfer and remote control functions over WLAN. It supports Wi‑Fi 4 (802.11n) and connects via a USB host interface. The lightweight white adapter is intended for portable use and integrates with NEC utilities for device control and monitoring.

Advantages

The adapter allows image transfer via WLAN and provides control and monitoring of compatible projectors using PC Control Utility Pro 4.0 or HTTP access through a browser. It also offers a Virtual Remote function over WLAN and a compact, lightweight form factor for easy installation and portability.

Suitable for

• Wireless image streaming to NEC projectors
• Remote control and monitoring of projectors in meeting rooms
• Portable presentation setups requiring minimal cabling

Key specifications

• Model: NEC NP05LM2
• Connectivity: Wi‑Fi 4 (802.11n), USB host interface
• Colour: White
• Weight: 0.022 kg
• Brand: NEC
• MPN: 100013973
• EAN: 5028695611238

How to use

Connect the NP05LM2 to the projector's USB host port and configure the wireless network settings following the projector's manual. Use PC Control Utility Pro 4.0 or a web browser (HTTP access) to monitor and control projector functions. For image transfer and Virtual Remote features, ensure both the adapter and the source device are connected to the same WLAN and follow the on‑screen instructions in the projector or utility software.

Recommendations

Use the adapter on a secure, stable WLAN with sufficient bandwidth for smooth image transmission. Keep firmware and the PC Control Utility Pro up to date for best compatibility and security. For reliable operation, place the projector and wireless source within recommended range of the WLAN access point.
