HellermannTyton Abrazadera para viga B con espuma PA6GF30-BK negra 151-01186

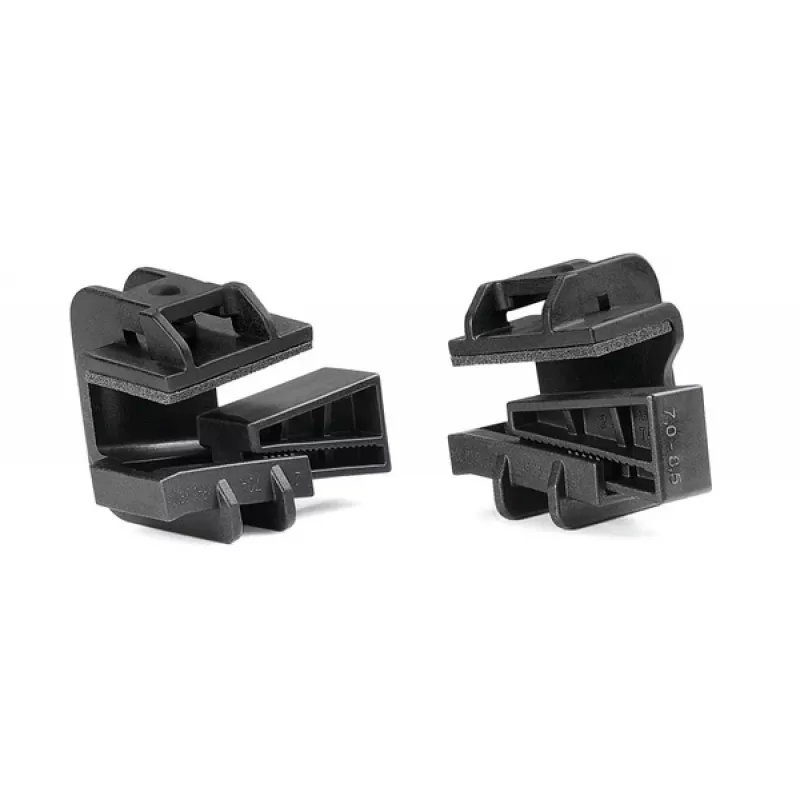

Beam clamp with integrated mounting base for tool-free push-on installation on beam flanges up to 8 mm thick. The clamp body is made of spring steel, while the mounting base is polyamide 6 with 30% glass fibre reinforcement, ensuring high strength and durability. An integrated foam pad provides vibration damping and protects the cable bundle from abrasion.

Advantages

Quick and secure fastening without tools; the foam insert dampens vibrations and prevents cable damage; the glass-fibre reinforced base withstands mechanical stress and harsh environments.

Suitable for

• Securing cables, pipes, and conduits to steel beams and flanges
• Applications requiring vibration damping and cable protection
• Industrial, automotive, and panel building installations

Key specifications

• Max. beam flange thickness: 8 mm
• Max. cable tie width: 9 mm
• Clamp material: Spring steel
• Mounting base material: PA6 GF30 (polyamide 6 with 30% glass fibre)
• Colour: Black
• Operating temperature range: -40 °C to +105 °C
• Flammability rating: UL94 V-2
• UV resistance: Good
• Halogen-free: Yes
• RoHS compliant: Yes

Recommendations

Pair with HellermannTyton cable ties up to 9 mm wide for a complete fastening solution. Ensure the beam flange thickness does not exceed 8 mm for proper engagement.
