Adaptador Mini DisplayPort a VGA ProXtend MDP-VGAP-0002W

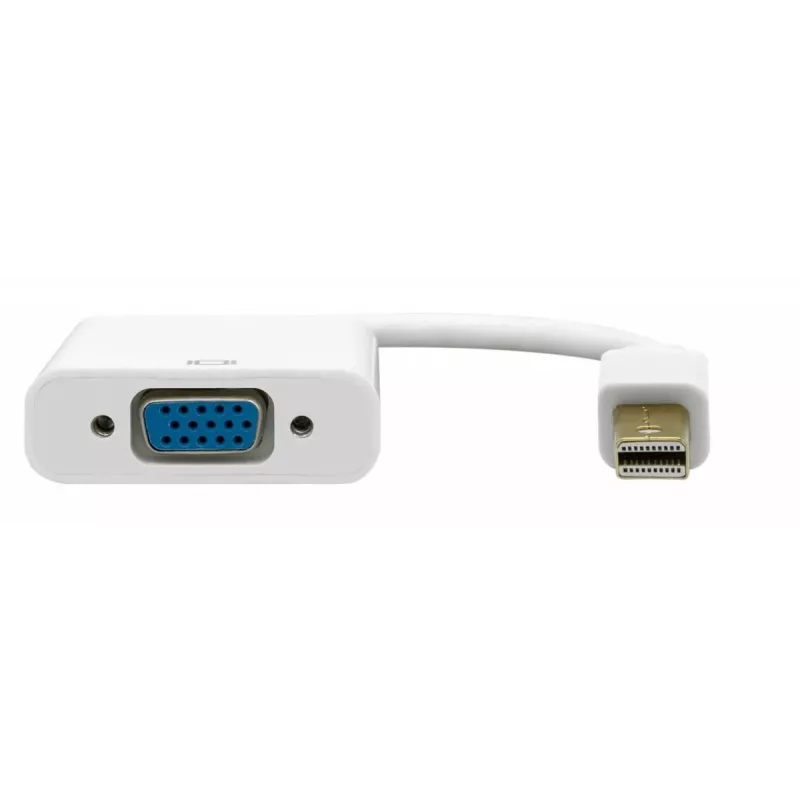

The ProXtend Mini DisplayPort to VGA Adapter (MDP-VGAP-0002W) is a passive video cable adapter that converts a digital Mini DisplayPort signal from a computer or compatible device to an analogue VGA signal for an external monitor or projector. The adapter has a 0.2 m cable and a Mini DisplayPort connector on one end and a VGA (D-Sub) connector on the other, with a white housing.

Advantages

This passive Mini DisplayPort to VGA adapter provides a straightforward plug-and-play solution for connecting Mini DisplayPort-enabled devices to VGA displays. It supports resolutions up to 1080p (1920 x 1080) at 60 Hz to ensure clear video output and is compact with a short 20 cm cable for tidy desk or presentation setups.

Suitable for

• Connecting laptops or desktops with Mini DisplayPort to VGA monitors
• Presentations with projectors that accept VGA input
• Extending or mirroring displays at up to 1080p resolution

Key specifications

• Connector 1: Mini DisplayPort
• Connector 2: VGA (D-Sub)
• Adapter type: Passive
• Maximum resolution: 1080p (1920 x 1080) @ 60 Hz
• Cable length: 0.2 m
• Product colour: White
• Brand: ProXtend, MPN: MDP-VGAP-0002W, EAN: 5714590006964

How to use

Plug the Mini DisplayPort connector into the Mini DisplayPort output on your computer or compatible device and connect the VGA (D-Sub) connector to the VGA input of the external monitor or projector. Select the appropriate input on the display device and configure display settings on the computer for mirroring or extending the desktop. No external power or drivers are required for typical use.

Recommendations

For best results, use with displays that support up to 1920 x 1080 at 60 Hz. As this is a passive adapter, ensure the source device’s Mini DisplayPort supports analogue VGA signals; otherwise a powered (active) converter may be required.
