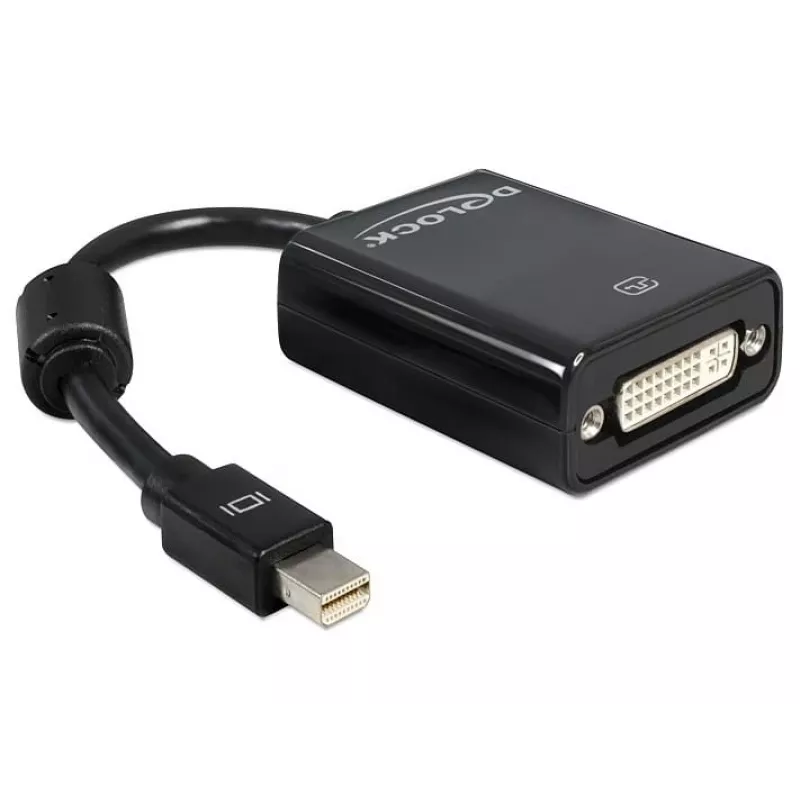

Adaptador mini DisplayPort DeLOCK 65098

This mini DisplayPort adapter from DeLOCK (model 65098) lets you connect a DVI-I 24+5 display, such as a monitor, projector or TV, to a MacBook, MacBook Pro or MacBook Air with a mini DisplayPort output. The compact 0.18 m cable and robust connectors provide a simple, space-saving connection for high-quality video output.

Advantages

The adapter uses the mini DisplayPort 1.1a standard and provides a DVI-I 24+5 female connector with screw nuts for secure attachment. It supports resolutions up to 1080p, a transfer rate up to 6.75 Gbps, bandwidth of 225 MHz / 2.25 Gbps per channel and a vertical frequency range of 50/60 Hz. Standby detection enables the connected display to enter sleep mode automatically. The product is black and has a short 18 cm cable for tidy setups.

Suitable for

• Connecting a MacBook, MacBook Pro or MacBook Air to a DVI-I 24+5 monitor
• Connecting to projectors or TVs with DVI-I input for presentations or media playback
• Temporary or portable setups where a short, compact cable is preferred

Key specifications

• Connector 1: Mini DisplayPort (20 pin, male)
• Connector 2: DVI-I 24+5 (female) with screw nuts
• Standard: Mini DisplayPort 1.1a
• Maximum resolution: up to 1080p
• Transfer rate: up to 6.75 Gbps
• Bandwidth: 225 MHz / 2.25 Gbps per channel
• Vertical frequency: 50/60 Hz
• Cable length: 0.18 m (18 cm)
• Colour: Black

How to use

Connect the mini DisplayPort male plug to the mini DisplayPort output on your MacBook or compatible device. Attach the DVI-I 24+5 female connector to the DVI cable from your monitor, projector or TV and fasten the screw nuts to secure the connection. Power on both devices; the adapter transmits video signals and supports standby detection so the display can enter sleep mode automatically when appropriate.

Recommendations

For optimal performance, use the adapter with devices that support the listed resolutions and frequencies. Ensure the DVI cable and display are rated for the required resolution. Avoid excessive bending of the short cable and secure the DVI connector screws to prevent loosening during use.
