Adaptador multi-link Barrow TWT90KND-K12 90° G1/4 macho a tubo rígido 12 mm giratorio, oro

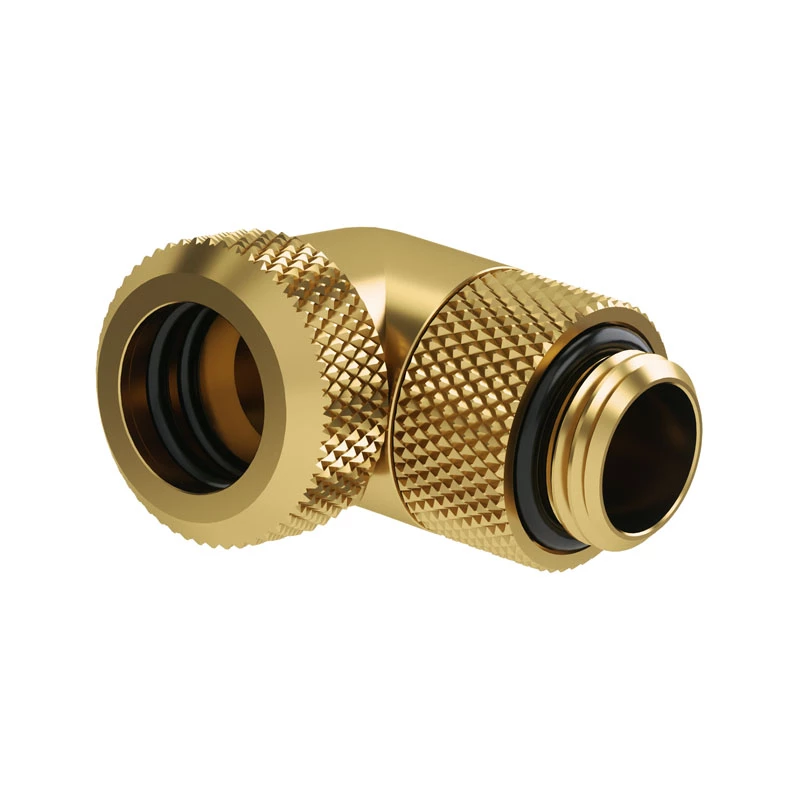

The Barrow Multi-Link Adapter TWT90KND-K12 90° G1/4 male to 12mm hardtube rotatable, gold is a compact right-angle fitting designed for liquid-cooling systems using rigid 12 mm tubing. It connects a standard G1/4 male thread to a 12 mm hard tube outlet at a 90° angle while allowing rotation to fine-tune orientation. The gold finish provides corrosion resistance and a visual accent in custom cooling loops without compromising mechanical compatibility.

Advantages

This rotatable 90° adapter enables precise alignment of 12 mm hard tubing without the need for bending or machining the tube. The G1/4 male connection offers wide compatibility with pumps, blocks, radiators, and compression fittings in PC water-cooling setups. The rotatable joint simplifies installation in tight spaces and reduces stress on fittings, contributing to more reliable, leak-resistant joints. The gold surface treatment improves wear resistance and integrates visually with a range of build themes.

Suitable for

• Custom PC liquid-cooling loops using 12 mm rigid tubing
• Tight or compact layouts where a fixed 90° turn is required
• Connections to water blocks, radiators, reservoirs, and pump outlets with G1/4 threads
• Upgrades or repairs where tube orientation must be adjusted after assembly

Key specifications

• Angle: 90° right-angle adapter
• Thread type: G1/4 male connection
• Tube compatibility: designed for 12 mm outer-diameter hard tubing
• Rotatable joint: yes, allows orientation adjustment after installation
• Finish: gold surface treatment for corrosion and wear resistance
• Material: metal construction suitable for coolant contact

How to use

Install the adapter by screwing the G1/4 male thread into a compatible female G1/4 port on a pump, block, radiator, or reservoir. Insert the 12 mm hard tube into the adapter’s compression interface according to the tube and fitting manufacturer’s instructions, and secure it as required for the chosen compression system. Rotate the adapter body to achieve the desired tube orientation before final tightening to avoid over-stressing the tube or fittings. Verify that the connection is seated and tightened to the recommended torque for your fittings, then perform a leak test before normal operation.

Recommendations

Use with compatible compression fittings and verify tube dimensions are 12 mm outer diameter. Avoid excessive torque when tightening to prevent damage to threads or deformation of the hard tube. Perform a pressure or leak test after assembly and after any adjustments to rotation to ensure a secure, leak-free connection.
