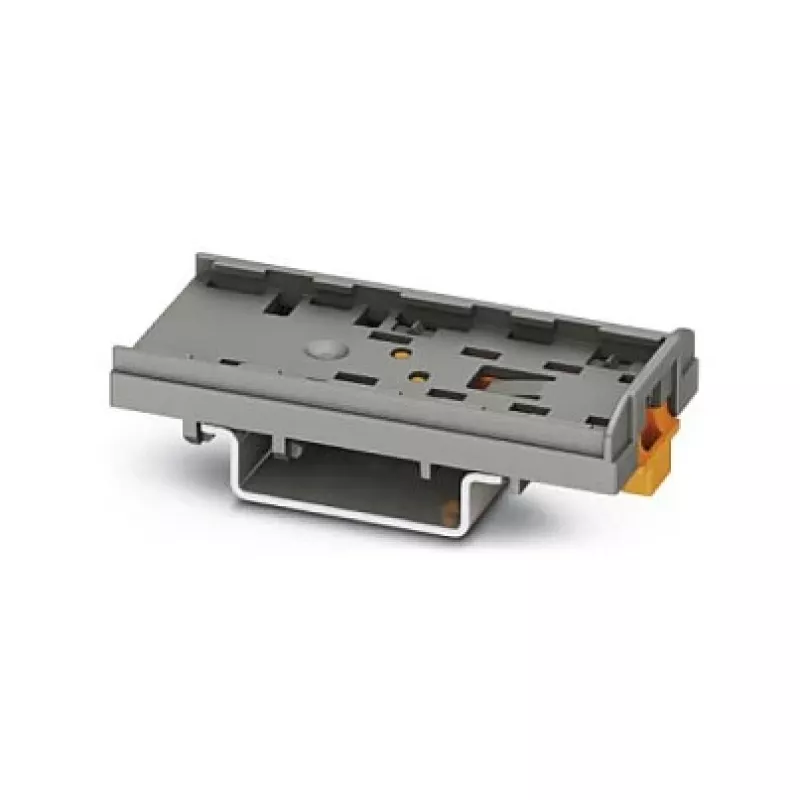

Adaptador para carril DIN Phoenix Contact PTFIX-NS35 para bloques de distribución, poliamida gris, NS 35/7,5 y NS 35/15

Mounting Phoenix Contact PTFIX distribution blocks onto a DIN rail can be a challenge without the right adapter. The Phoenix Contact 3274054 PTFIX-NS35 DIN rail adapter solves this by providing a secure, snap-on mounting solution for NS 35/7.5 and NS 35/15 rails. Made from durable gray polyamide, it ensures your distribution blocks stay firmly in place, even in demanding industrial environments.

Who is it for

This adapter is ideal for electrical engineers, panel builders, and maintenance technicians who need to install PTFIX distribution blocks in control cabinets or on DIN rails. It is perfect for applications requiring reliable, vibration-resistant mounting and easy installation without tools.

Main features

• Compatible with Phoenix Contact PTFIX distribution blocks
• Fits DIN rails NS 35/7.5 and NS 35/15
• Made of high-quality polyamide (PA) with UL 94 V0 flammability rating
• Wide operating temperature range from -60 °C to 105 °C
• RoHS and REACH compliant
• Simple snap-on mounting, no tools required

Specifications

• Product type: DIN rail adapter
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Material: Polyamide (PA)
• Color: Gray
• Compatibility: Phoenix Contact PTFIX distribution blocks
• Operating temperature range: -60 °C to 105 °C
• Flammability rating: UL 94 V0
• RoHS compliant: Yes
• REACH compliant: Yes
• Installation position: Horizontal
• Number of mounting positions: 1
• Insulating material group: I
• Manufacturer series: PTFIX
• Application: Mounting distribution blocks
• Country of origin: Germany

Tips

Ensure the DIN rail is clean and free of debris before snapping the adapter into place. For optimal stability, distribute the load evenly across the rail and verify that the adapter is fully engaged. This adapter can be used in both horizontal and vertical orientations, but horizontal is recommended for most applications.
