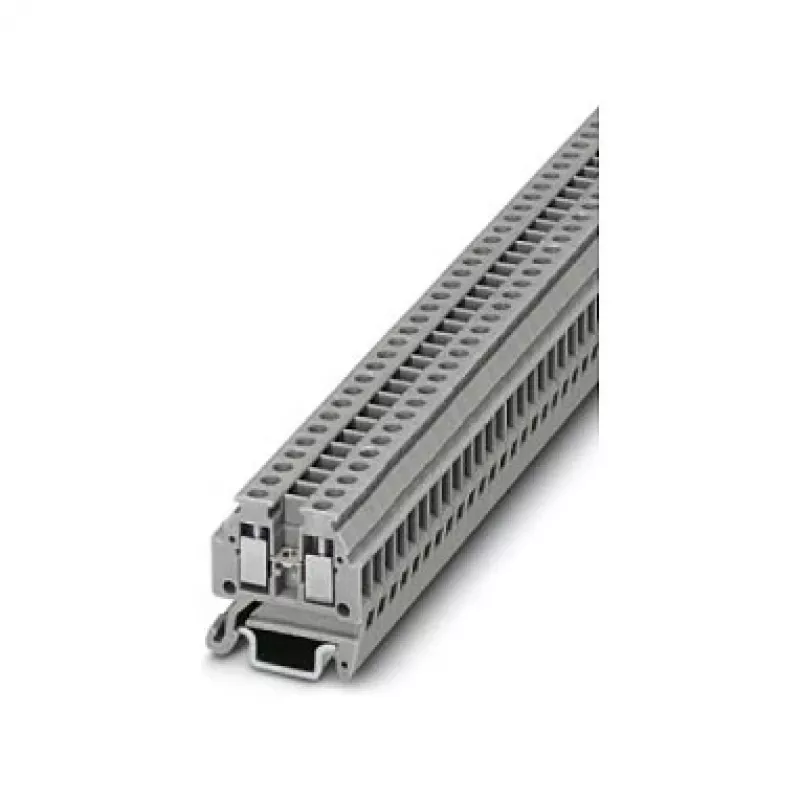

Borna de paso Phoenix 3100305 MT 1.5, conexión por tornillo, 1,5 mm², 500 V, 17,5 A, carril DIN, gris

Rated for 500 V and 17.5 A, the Phoenix 3100305 MT 1.5 feed-through terminal block delivers reliable screw-clamp connections for solid and flexible conductors up to 1.5 mm². Its compact 4.2 mm width saves space on the DIN rail while the V0-rated polyamide housing ensures fire safety in demanding industrial environments.

Overview

The Phoenix MT 1.5 is a single-level, single-position feed-through terminal block engineered for DIN rail mounting on NS 35/7.5 or NS 35/15 profiles. It provides two screw connections for secure wiring of conductors from 0.14 mm² to 1.5 mm² (26–16 AWG). The gray polyamide insulating body meets UL 94 V0 flammability standards, making it suitable for control cabinets, distribution boards, and automation systems.

What stands out

• High current rating of 17.5 A and 500 V rated voltage for versatile power distribution.
• Accepts both solid and flexible conductors up to 1.5 mm², with 8 mm stripping length.
• M2 screw thread with 0.22–0.25 Nm tightening torque for reliable, maintenance-free connections.
• Compact 4.2 mm width maximizes terminal density on standard DIN rails.
• Pollution degree 3 and overvoltage category III with 6 kV surge voltage rating for harsh electrical environments.

Technical details

• Connection type: Screw connection
• Number of positions: 1
• Number of connections: 2
• Conductor cross section solid: 0.14–1.5 mm²
• Conductor cross section flexible: 0.14–1.5 mm²
• AWG range: 26–16
• Rated voltage (IEC): 500 V
• Rated current (IEC): 17.5 A
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Insulating material: PA (polyamide)
• Flammability rating (UL 94): V0
• Stripping length: 8 mm
• Screw thread: M2
• Tightening torque: 0.22–0.25 Nm
• Pollution degree: 3
• Overvoltage category: III
• Rated surge voltage: 6 kV

Our verdict

The Phoenix 3100305 MT 1.5 is a robust and space-efficient feed-through terminal block that meets stringent safety and performance standards. Its screw connection technology ensures long-term stability, while the V0 housing and high surge voltage rating make it a dependable choice for professional electrical installations.
