Adaptador PCIe interno DeLOCK 64345 USB 2.0 Mini PCI Express

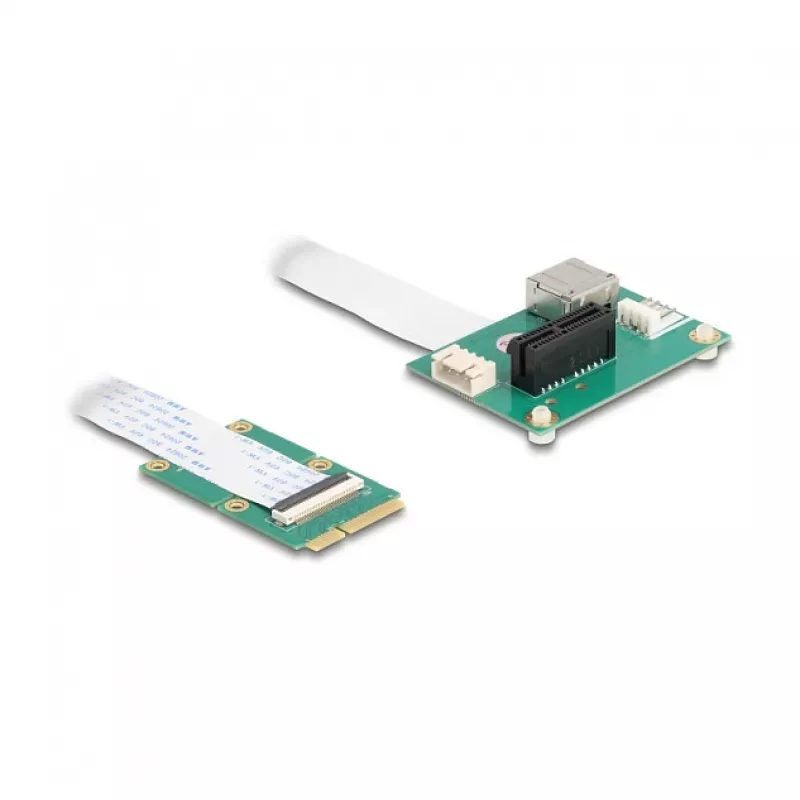

The DeLOCK 64345 Internal PCIe Adapter converts a Mini PCI Express interface into a standard PCI Express slot while providing an additional USB 2.0 Type-A port. It enables installation of different PCIe cards into systems that only provide a Mini PCIe connector and offers an accessible USB interface for connecting USB devices. The adapter is compact, green, and intended for internal use.

Advantages

The adapter supports a direct conversion from Mini PCIe to a PCI Express slot, expanding compatibility with PCIe cards. An integrated USB 2.0 Type-A output allows connection of USB devices without occupying separate internal headers. Its small form factor is suitable for space-constrained installations.

Suitable for

• Adding PCIe expansion cards to systems with only Mini PCIe connectors
• Connecting internal or external USB 2.0 devices via the onboard Type-A port
• Compact builds and embedded systems requiring internal adapters

Key specifications

• Manufacturer: DELOCK
• Model: 64345
• Host interface: Mini PCI Express
• Output: PCI Express slot
• Additional port: USB 2.0 Type-A
• Product colour: Green
• Manufactured in: China

How to use

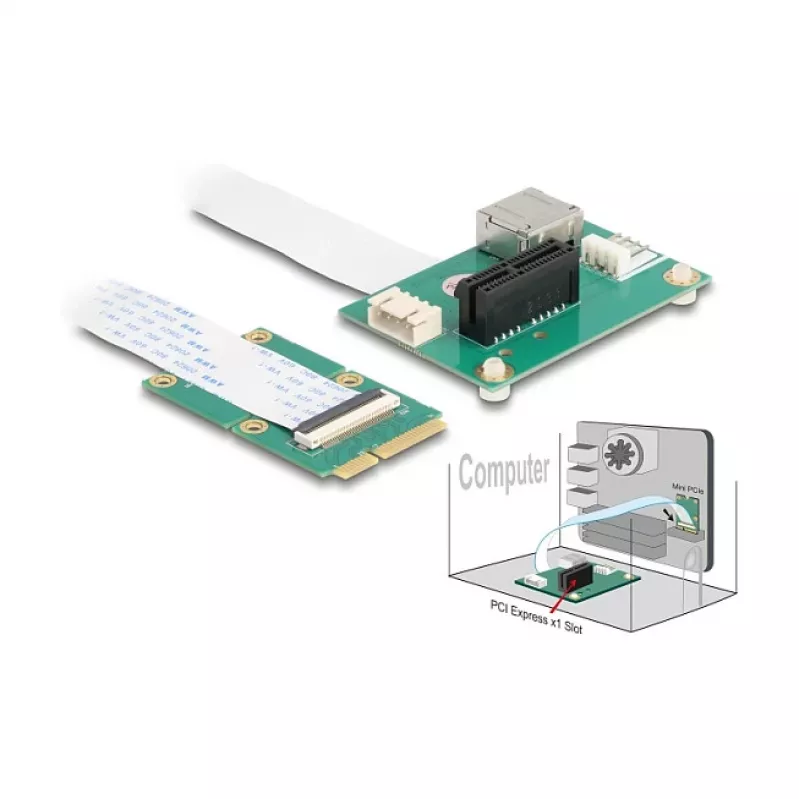

Install the adapter into the Mini PCIe connector on the host board and secure it according to the system’s installation guidelines. Insert the desired PCIe card into the provided PCI Express slot and ensure proper alignment and fastening. Connect any USB device to the Type-A port; ensure the host system supplies the necessary USB power and drivers as required.

Recommendations

Use the adapter only in powered-off systems during installation. Verify compatibility of the chosen PCIe card with the host system and ensure the Mini PCIe interface supports the required signal lines. For USB devices, confirm that USB 2.0 bandwidth and power meet device requirements.
