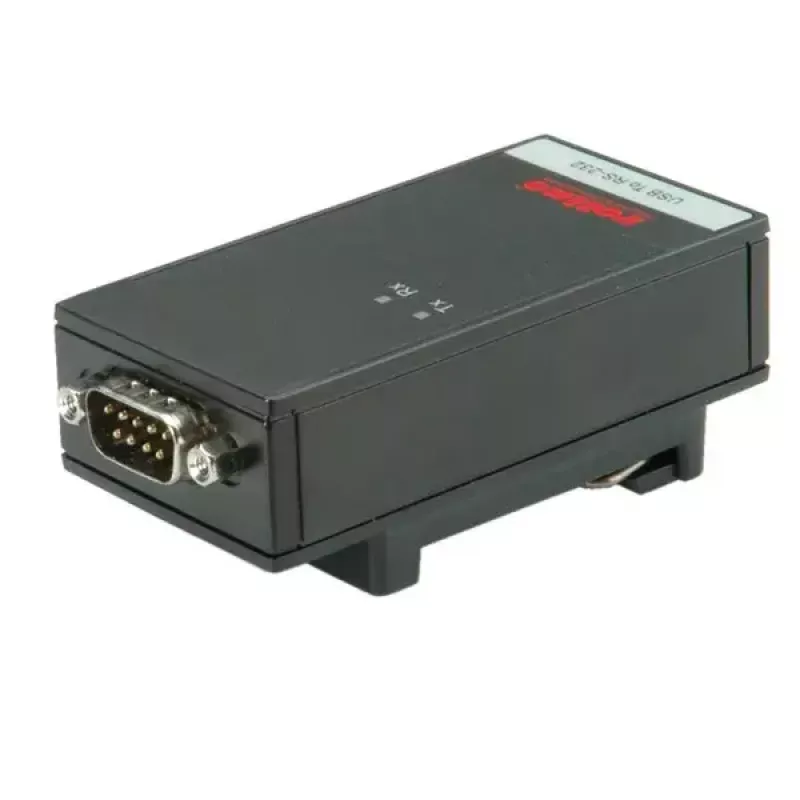

Adaptador USB 2.0 a RS232 ROLINE 12.02.1001

ROLINE USB 2.0 to RS232 Adapter ROLINE 12.02.1001 provides a compact solution to connect RS232 serial devices to a PC USB port. The adapter supports USB 2.0/1.1/1.0 standards, offers a data transfer rate up to 115200 bit/s and includes 15 kV ESD protection on the RS232 port. Designed for DIN-rail mounting, it is powered via the Mini USB Type B connector (40 mA) and is compatible with a range of Windows operating systems.

Advantages

The adapter combines wide OS compatibility and plug-and-play convenience with a compact DIN-rail ready form factor. It provides robust ESD protection for the RS232 interface and supports the standard serial baud rate up to 115200 bit/s. The unit uses a Mini USB Type B power and data connection, reducing cable clutter and simplifying installation in industrial or control cabinet environments.

Suitable for

• Connecting legacy RS232 devices (e.g., serial meters, controllers, barcode scanners) to modern PCs or embedded systems
• DIN-rail installations in control cabinets and automation racks
• Applications requiring ESD protection for serial communication

Key specifications

• Interface: USB 2.0 to RS232 (DB9 Male)
• USB compatibility: USB 2.0, USB 1.1, USB 1.0
• Maximum data rate: up to 115200 bit/s
• ESD protection: 15 kV on RS232 port
• Connectors: 1x DB9 Male, 1x Mini USB Type B
• Power: supplied via Mini USB Type B (40 mA)

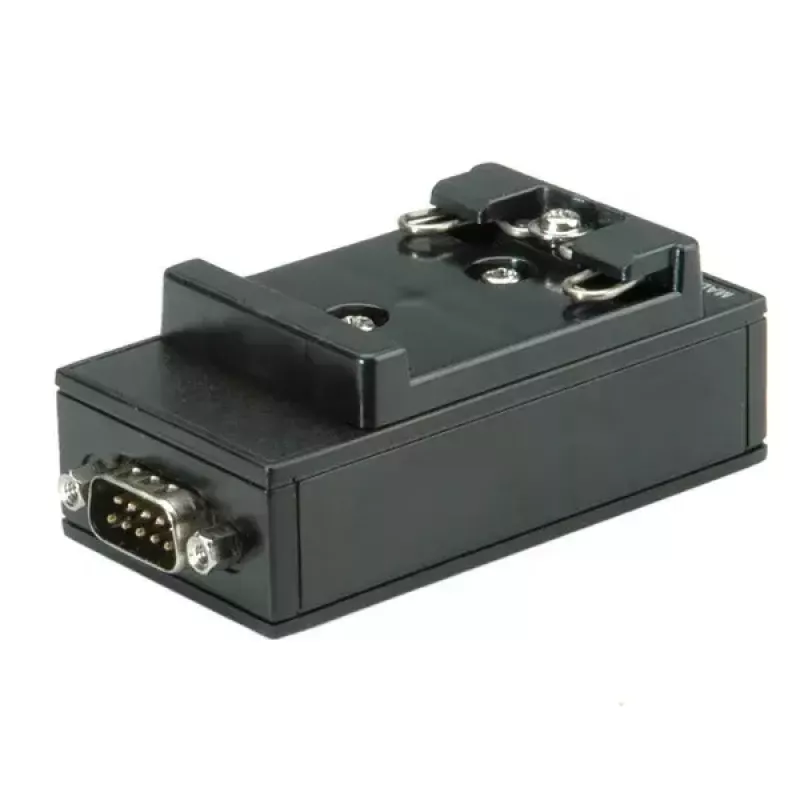

• Mounting: DIN-rail
• Supported OS: Windows 98SE/ME/2000/Server 2003/XP/Server 2008/Vista/7
• Colour: Black

How to use

Mount the adapter on a DIN rail and connect the DB9 male connector to the RS232 device. Plug a Mini USB Type B cable into the adapter and into a PC USB port to provide data and power. Install any required drivers if prompted by the operating system; many systems will recognize the adapter as a COM port for serial communication. Configure the host software serial port settings (baud rate, parity, data bits, stop bits) to match the RS232 device, up to 115200 bit/s.

Recommendations

For reliable operation, use a shielded USB cable and avoid routing the USB cable alongside high-voltage power lines. Verify driver compatibility with your Windows version before deployment and ensure the RS232 device settings match the COM port configuration on the host.
