Adaptador USB 3.2 InLine, conector macho USB-E de panel frontal interno a conector hembra USB-C

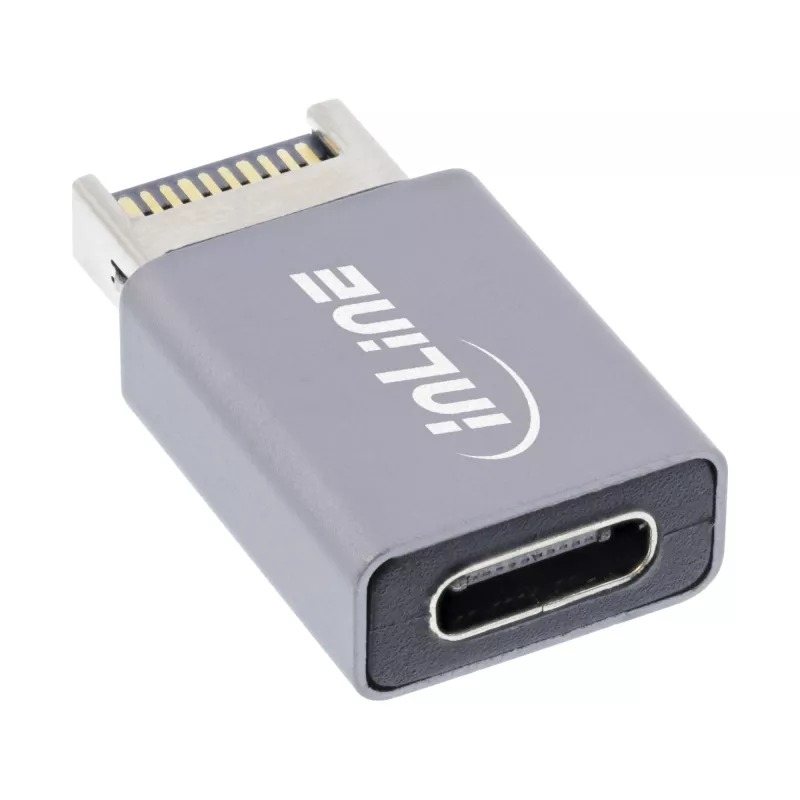

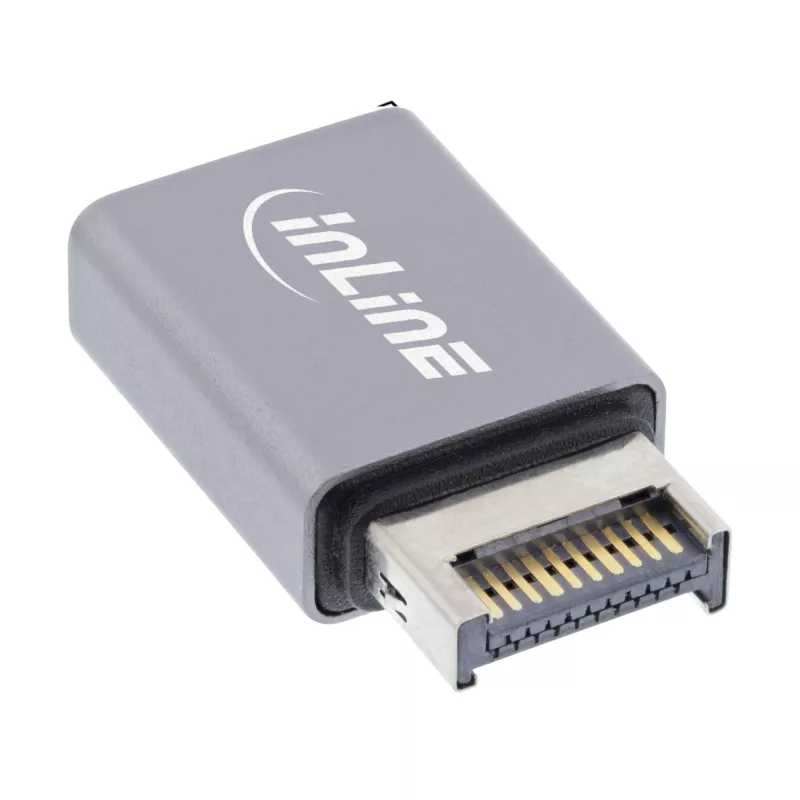

The InLine USB 3.2 adapter connects an internal USB-E front panel male connector to an external USB-C female port, enabling use of USB 3.2 (Gen 2) devices via a motherboard front-panel USB header. It supports data transfer rates up to 10 Gb/s and has a compact grey housing measuring 26 mm × 15 mm × 7 mm.

Advantages

This adapter provides a simple way to add a USB Type-C port to the PC front panel without changing the motherboard. The compact size allows installation in confined front-panel spaces, while the USB 3.2 (Gen 2) compatibility ensures high-speed data transfer up to 10 Gb/s. The grey finish matches many PC interiors.

Suitable for

• Connecting external USB-C devices (storage, peripherals) to a motherboard front-panel USB-E header
• Upgrading a PC case front panel with a USB Type-C port
• Systems where space for front-panel connectors is limited

Key specifications

• Standard: USB 3.2 (Gen 2)
• Maximum data transfer rate: 10 Gb/s
• Input connector: internal USB-E front panel male
• Output connector: USB-C female
• Dimensions: 26 mm (W) × 15 mm (D) × 7 mm (H)
• Colour: Grey
• Brand: InLine, MPN: 33446P, EAN: 4043718315178

How to use

Locate the motherboard's front-panel USB-E (USB 3.2) header and insert the adapter's male connector into the header with correct orientation. Secure the adapter in the front-panel opening or mounting point if available, then connect your USB-C device to the adapter's USB-C female port. The operating system should recognize connected devices automatically if drivers for USB 3.2 are present.

Recommendations

For best performance, connect USB 3.2 (Gen 2) devices and use quality USB-C cables; ensure the adapter is seated correctly on the motherboard header to avoid intermittent connections.
