Adaptador USB cambiador de género InLine 69927N — Cable cambiador de género para invertir el sexo del conector

IP68-certified protection for harsh environments:Silicone seal and PA66 housing provide reliable protection against water and dust – ideal for outdoor use.
Stable data transmission with USB-C:Supports up to 5 Gb/s – suitable for fast signals in industrial or mobile applications.
Simultaneous power supply possible:Transfers up to 5 V/2 A – perfect for charging points or sensors with USB-C power supply.
Compact format with M20 thread:Fits into standardized housing openings – easy integration into distributors, machines, or panels.
Easy installation:Can be easily integrated into housings, technical boxes, or distributors.

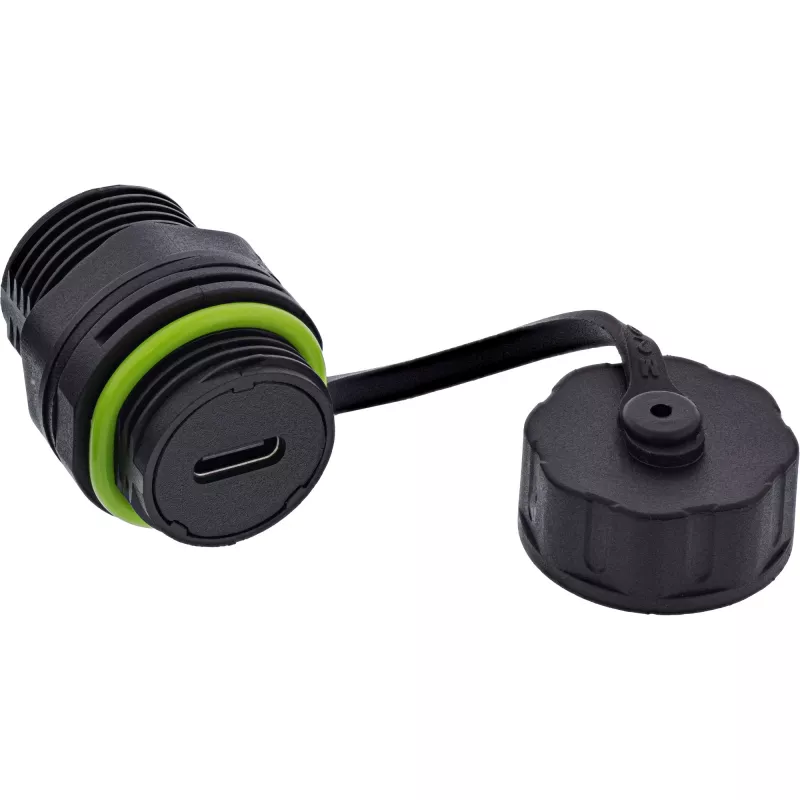

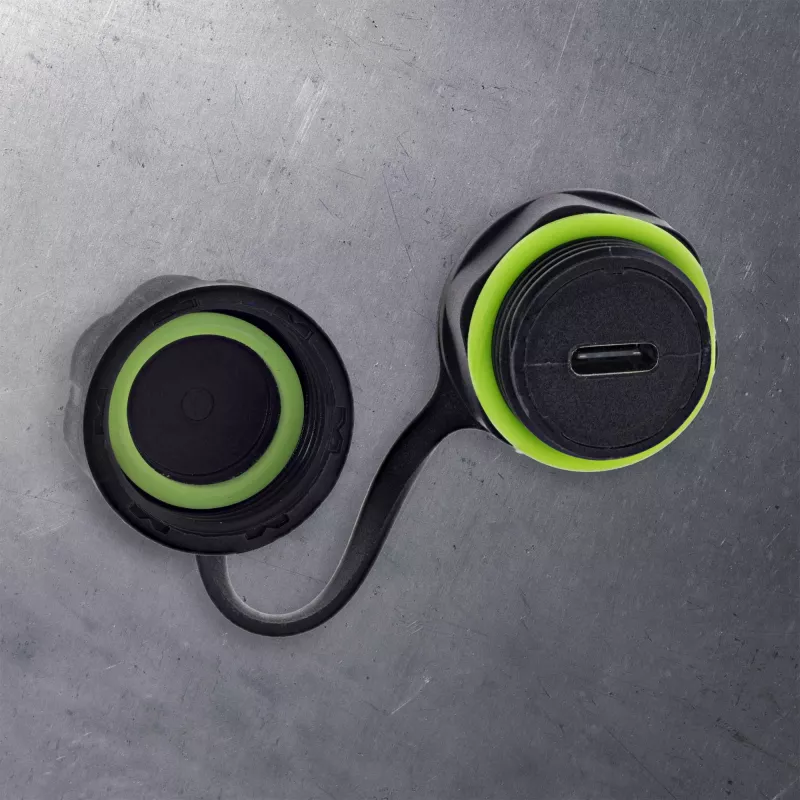

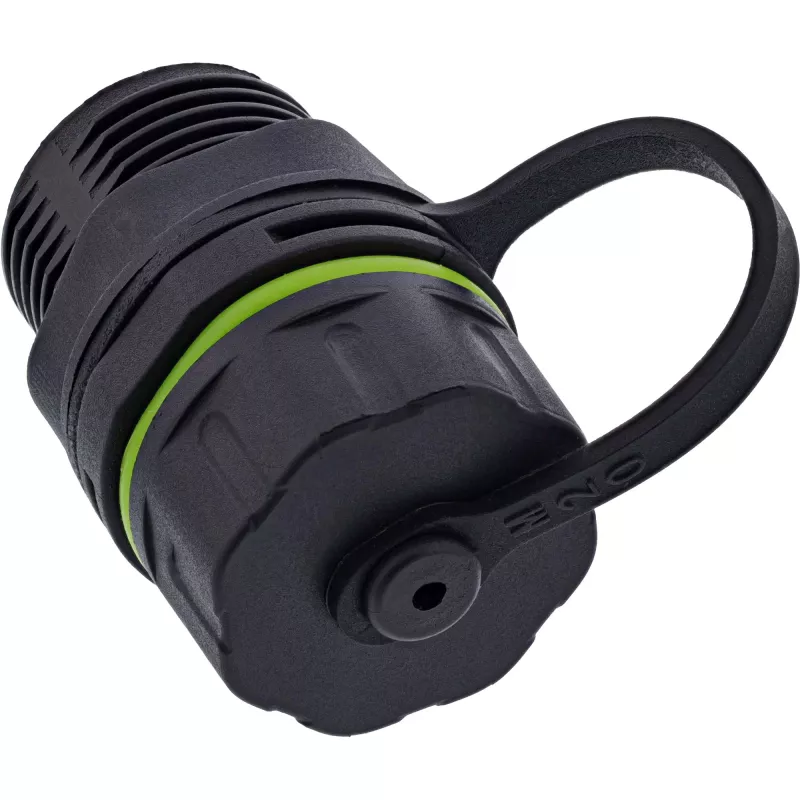

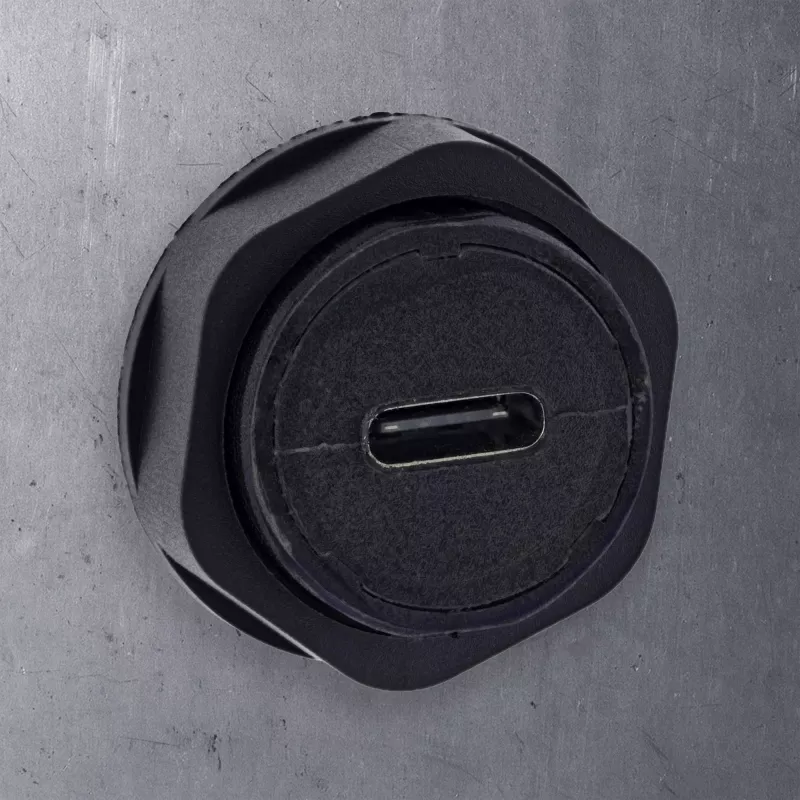

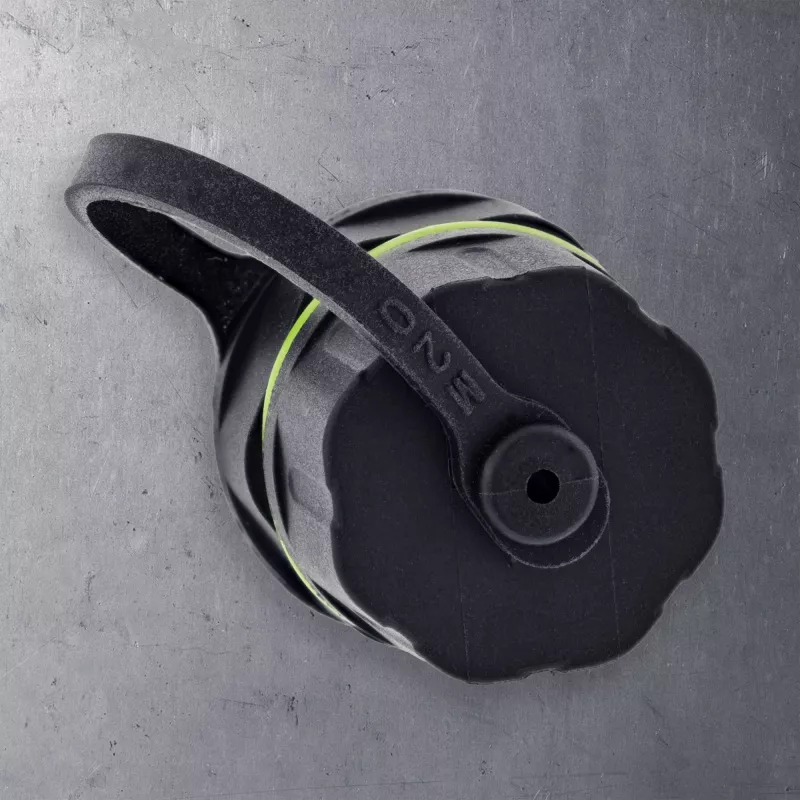

The InLine® USB-C cable coupling Mini with IP68 certification is the ideal solution for robust USB-C connections in industrial, outdoor, and technical environments. Whether in machine housings, distribution cabinets, or mobile applications, this shielded coupling ensures secure data and power connections under demanding conditions.
Thanks to the PA66 plastic housing and a high-quality silicone seal, the connection remains reliably protected even under adverse conditions. The coupler transmits data at up to 5 Gb/s and power at up to 5 V and 2 A – ideal for sensor technology, charging points, or USB-C communication in the field.

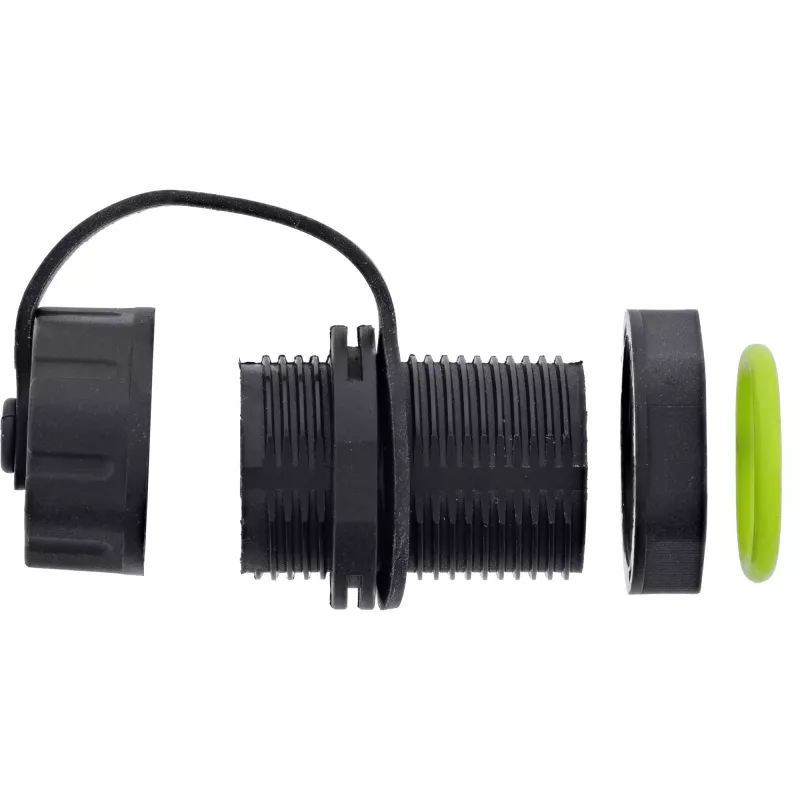

The M20 thread allows for easy installation in enclosures or feed-throughs.
Whether for professional installations or tech-savvy users, this USB-C coupling impresses with its versatility, compactness, and durability.

Material: Nylon (PA66)
Thread size: M20
Module: USB-C female/female
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: Yes
Protection rating: IP68
Temperature resistance: –25 °C to +105 °C

InLine 69927N. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 25 mm, Depth: 40 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 50 mm, Package depth: 120 mm, Package height: 30 mm

How to use

Install the coupling into a compatible M20 panel or enclosure opening and secure it according to the enclosure’s mounting instructions. Connect existing USB-C cables to both sides of the female-to-female coupler to extend or adapt cable gender while maintaining a sealed connection. Ensure cables are correctly aligned and fully inserted to maintain data and power continuity and preserve the IP68 seal.

Recommendations

For reliable sealing and long service life, inspect the silicone seal before installation and avoid excessive mechanical stress on the mounted coupling. Use within the specified voltage, current, and temperature ranges and avoid exposure to chemicals that may degrade the PA66 housing or silicone seal.
