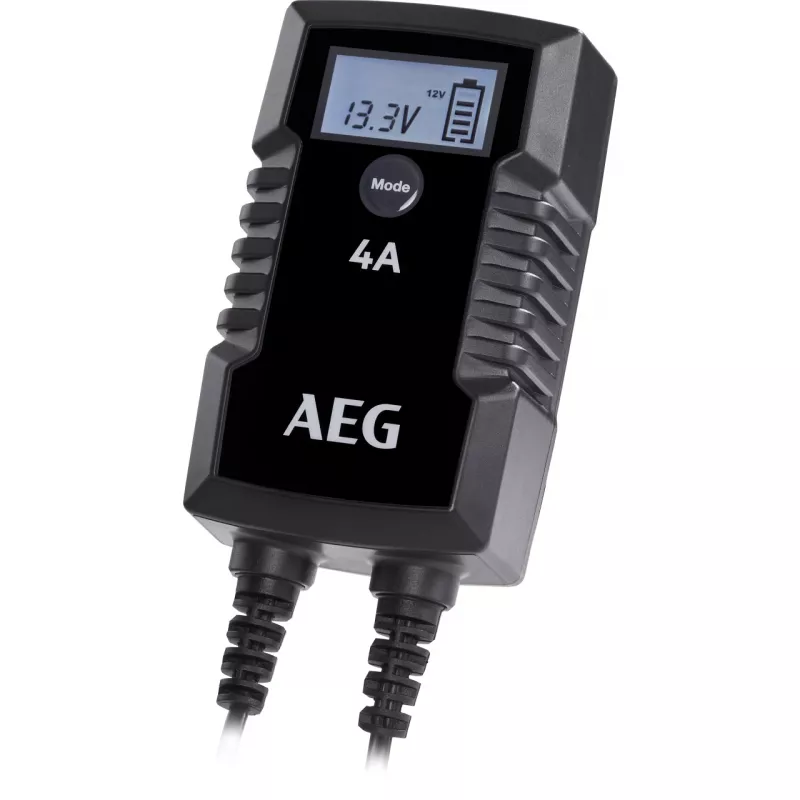

AEG LD4 10616 cargador automático de batería de coche 6V/12V 2A/4A para plomo-ácido, GEL, AGM, MF, Ca/Ca

Charge 6V and 12V batteries with selectable 2A or 4A current, supporting lead-acid, GEL, AGM, MF, and Ca/Ca types. The AEG LD4 10616 features an 8-stage automatic charging process with winter mode, trickle charge, battery test, and memory function.

Overview

The AEG LD4 10616 is a versatile car battery charger designed for a wide range of vehicles including cars, motorcycles, boats, caravans, and lawnmowers. It operates on 220-240V AC input and delivers 6V DC at 2A or 12V DC at 2A or 4A. Suitable for battery capacities from 1.2 Ah to 120 Ah depending on voltage.

What stands out

• 8-stage automatic charging for optimal battery care
• Supports lead-acid, GEL, AGM, MF, and Ca/Ca batteries
• Winter mode for charging in cold temperatures
• Trickle charge function maintains battery at full capacity
• Battery test function checks battery condition
• Memory function saves settings for convenience
• IP65 rated: dust-tight and protected against water jets
• LED indicators show charging status
• Protection against overcharge, short circuit, reverse polarity, overheating, and sparks
• 1.8m AC and DC cables with crocodile clips
• Operating temperature range: -20°C to +50°C

Technical details

• Input voltage: 220-240V AC, 50/60Hz
• Output voltage: 6V DC / 12V DC
• Charging current: 2A (6V), 2A/4A (12V)
• Battery capacity range: 1.2-14 Ah (6V), 1.2-120 Ah (12V)
• Charging stages: 8-stage automatic
• Protection: overcharge, short circuit, reverse polarity, overheating, spark protection
• IP rating: IP65
• Display: LED indicators
• Cable length: AC 1.8m, DC 1.8m with crocodile clips
• Housing material: ABS plastic
• High-frequency charging technology for efficiency

Our verdict

The AEG LD4 10616 is a robust and feature-rich battery charger suitable for a variety of lead-acid battery types. Its 8-stage charging, winter mode, and comprehensive protection make it a reliable choice for maintaining vehicle batteries year-round.
