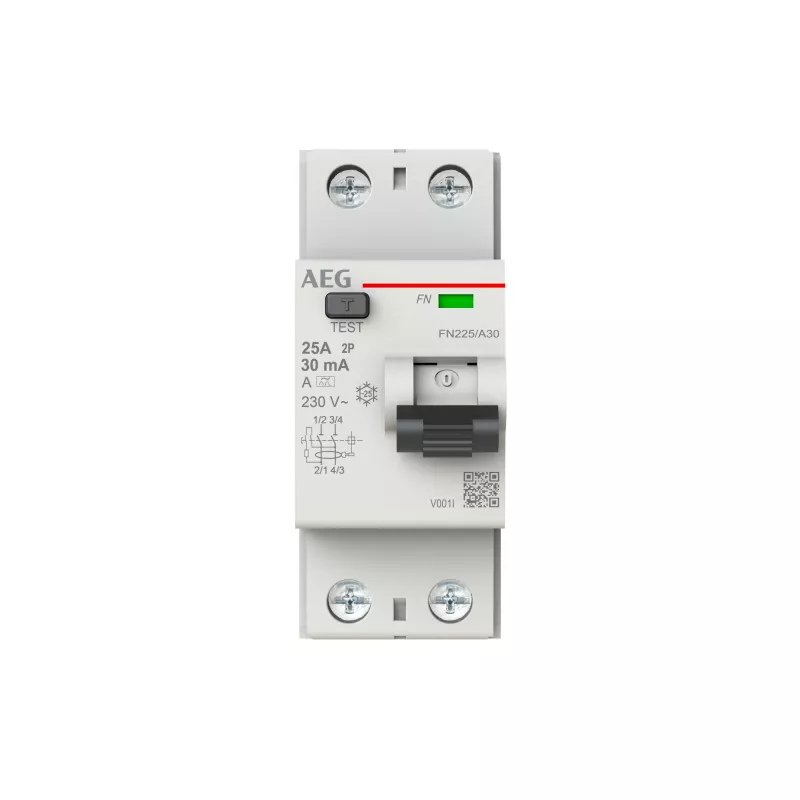

AEG Power Solutions Interruptor diferencial FN225/A30 2P Type-A 25A 30mA

The AEG Power Solutions FI-Schutzschalter FN225/A30 is a high-quality residual current circuit breaker (RCCB) designed for reliable protection against electric shock and fire hazards. This 2-pole Type A device is suitable for AC and pulsating DC residual currents, making it ideal for modern electrical installations with electronic loads.

Advantages

Ensures safety by disconnecting the circuit in case of earth faults. Compact 2-module design saves space on DIN rail. High breaking capacity of 10 kA provides robust protection. Complies with international standards IEC/EN 61008-1.

Suitable for

• Residential and commercial electrical panels
• Circuits with electronic devices like computers, inverters, and LED lighting
• Protection against sinusoidal AC and pulsating DC fault currents

Key specifications

• Product Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 2-pole (2P)
• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Residual Current Type: Type A
• Rated Voltage (Un): 230 V AC
• Rated Frequency: 50/60 Hz
• Rated Short-Circuit Current (Inc): 10 kA
• Mounting Type: DIN rail
• Module Width: 2 modules (35 mm)
• Degree of Protection: IP20 (terminals), IP40 (enclosure)
• Operating Temperature Range: -25 to +55 °C
• Standards: IEC/EN 61008-1
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Terminal Type: Screw terminals
• Terminal Capacity: Rigid 25 mm², Flexible 16 mm²

Recommendations

For optimal safety, always install this RCCB in accordance with local electrical regulations. Pair with appropriate MCBs for overcurrent protection.
