AG Neovo LMA-02 165,1 cm (65") negro

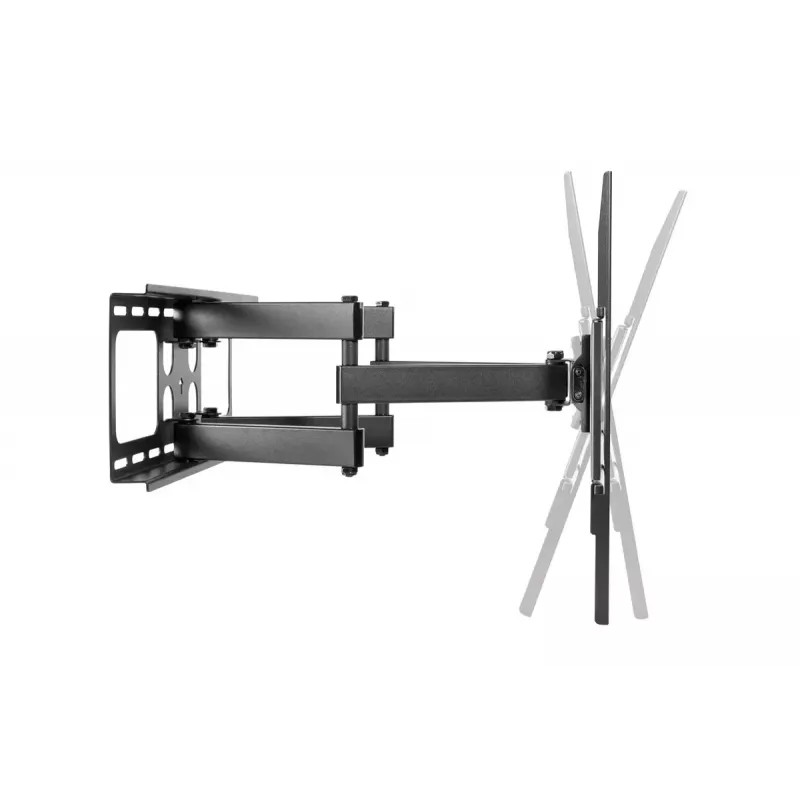

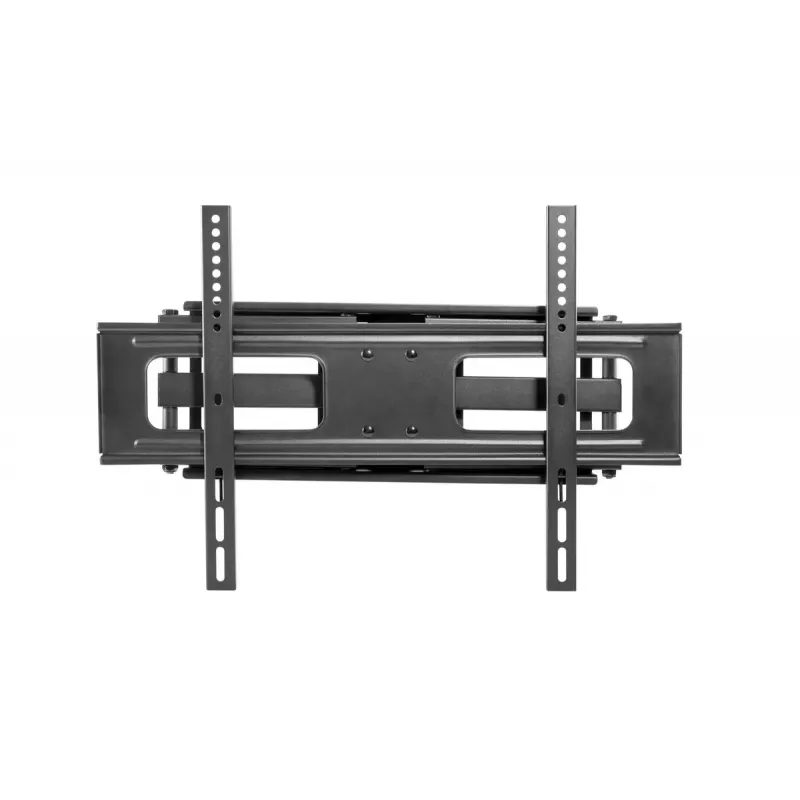

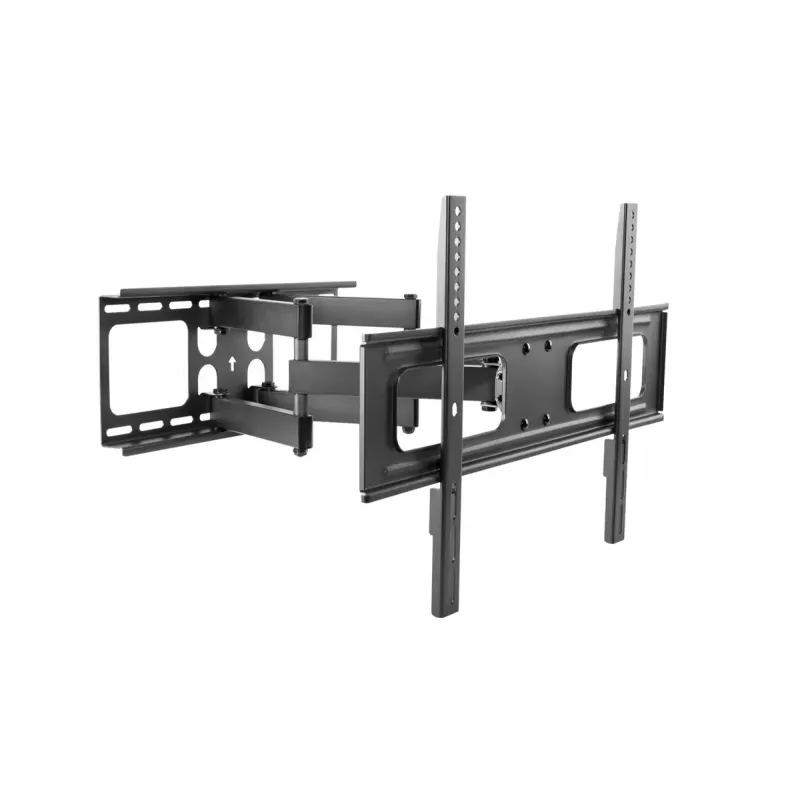

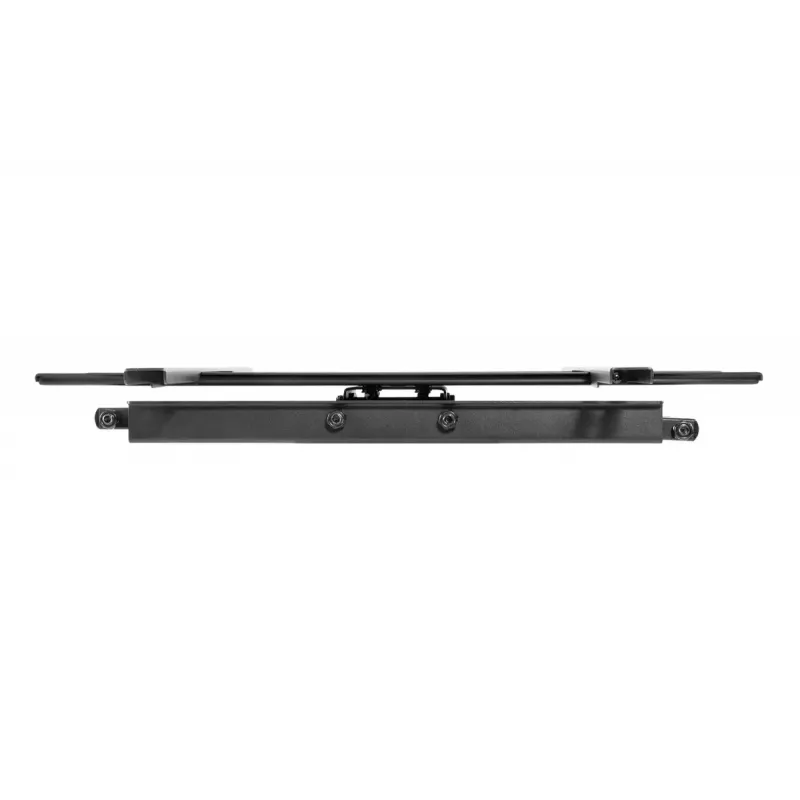

The AG Neovo LMA-02 wall mount is designed for mounting a single flat-panel display with a screen size up to 65 inches. It supports VESA patterns from 200 x 200 mm up to 600 x 400 mm and a maximum load of 50 kg. The mount provides a tilt range from -20° to 10° to help adjust viewing angle and reduce glare, while its black finish offers a discreet, modern appearance suitable for home, office or public display environments.

Advantages

The LMA-02 combines wide VESA compatibility and a substantial weight capacity to support most 32–65 inch displays. Its tilt adjustment allows for quick angle changes without removing the screen. Constructed for wall installation, the mount is compact and maintains a low profile once fitted, which helps preserve wall space and creates a tidy visual presentation. The black colour minimizes visual distraction and pairs easily with common display designs.

Suitable for

• Home living rooms and media centers
• Office meeting rooms and huddle spaces
• Retail displays and point-of-sale screens
• Reception areas and waiting rooms
• Classrooms and training facilities

Key specifications

• Compatible screen size: up to 65 inches
• Supported VESA patterns: 200 x 200 mm to 600 x 400 mm
• Maximum load capacity: 50 kg
• Tilt range: -20° to 10°
• Number of displays supported: 1
• Product weight: 7 kg
• Finish: black

How to use

Select an appropriate mounting location on a solid wall and confirm the wall structure can support the combined weight of the mount and display. Align the mount with the chosen VESA pattern on the display, secure the mounting plate to the screen using the correct fasteners for the VESA holes, and attach the assembly to the wall bracket following the included installation steps. Use the tilt adjustment to set the viewing angle between -20° and 10°, then tighten all fasteners and verify stability before leaving the installation unattended.

Recommendations

Check that the display's VESA pattern and weight do not exceed the mount's specifications. Use appropriate wall anchors or fixings for the wall material, and if uncertain about structural strength or proper installation, consult a professional fitter. Periodically inspect mounting fasteners and connections and re-tighten if any loosening is observed.
