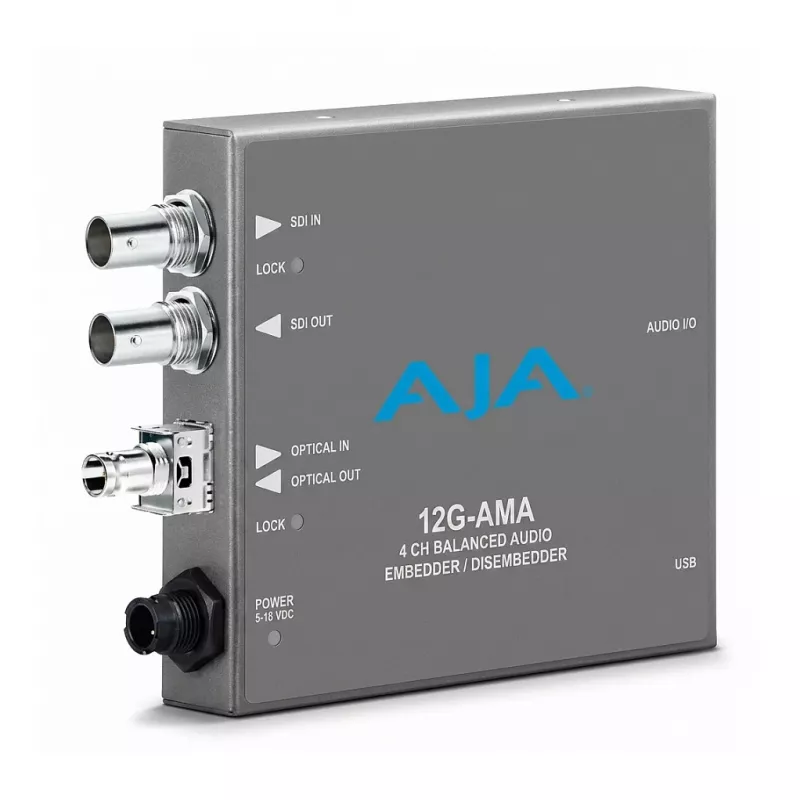

AJA 12G-AMA-R 12G-SDI Embedder/Disembedder de audio analógico con XLR de 4 canales

The AJA 12G-AMA-R is a professional 12G-SDI analog audio embedder and disembedder, designed for broadcast and production environments. It supports simultaneous embedding and disembedding of 4-channel analog audio over a single 12G-SDI link, with reclocked loop-through and processed SDI outputs. The unit features four balanced XLR inputs and outputs, switchable between line and mic levels, and is powered via 5-20V DC with an included universal power supply.

Advantages

Compact and robust, the 12G-AMA-R simplifies audio integration in 4K/UltraHD/2K/HD/SD workflows. Its reclocked loop-through output ensures signal integrity, while the processed output allows for flexible audio routing. The USB control interface via AJA Mini-Config software provides easy setup and monitoring.

Suitable for

• Broadcast studios requiring reliable audio embedding/disembedding
• Live production trucks and mobile units
• Post-production facilities integrating analog audio with SDI
• Any professional video environment needing 4-channel analog audio over 12G-SDI

Key specifications

• SDI Input: 1x 12G-SDI BNC
• SDI Output: 1x 12G-SDI BNC (Reclocked Loop-Through), 1x 12G-SDI BNC (Processed)
• Analog Audio Input: 4x XLR (Balanced, Switchable Line/Mic Level)
• Analog Audio Output: 4x XLR (Balanced, Switchable Line/Mic Level)
• Audio Channels: 4-Channel Analog Audio
• Functionality: Simultaneous Audio Embedding and Disembedding
• SDI Formats Supported: SMPTE 259M, 292M, 424M, 425M, 2081-1, 2082-1
• Video Formats Supported: 4K/UltraHD/2K/HD/SD
• Audio Sample Rate: 48 kHz
• Audio Bit Depth: 24-bit
• Power Input: 5-20V DC (DWP-U-R1 Universal Power Supply Included)
• Control Interface: USB (via AJA Mini-Config Software)
• Analog Audio Input Impedance: >10 kΩ
• Analog Audio Output Impedance: <50 Ω
• Analog Audio Frequency Response: ±0.2 dB from 20 Hz to 20 kHz
• Analog Audio Dynamic Range: >100 dB
• Analog Audio SNR: >100 dB
• Analog Audio THD+N: <0.005%
• Power Consumption: 6W (Typical)

Recommendations

For optimal performance, use high-quality 12G-SDI cables and ensure proper grounding. The 12G-AMA-R is ideal for integrating analog audio sources into modern SDI-based workflows.
