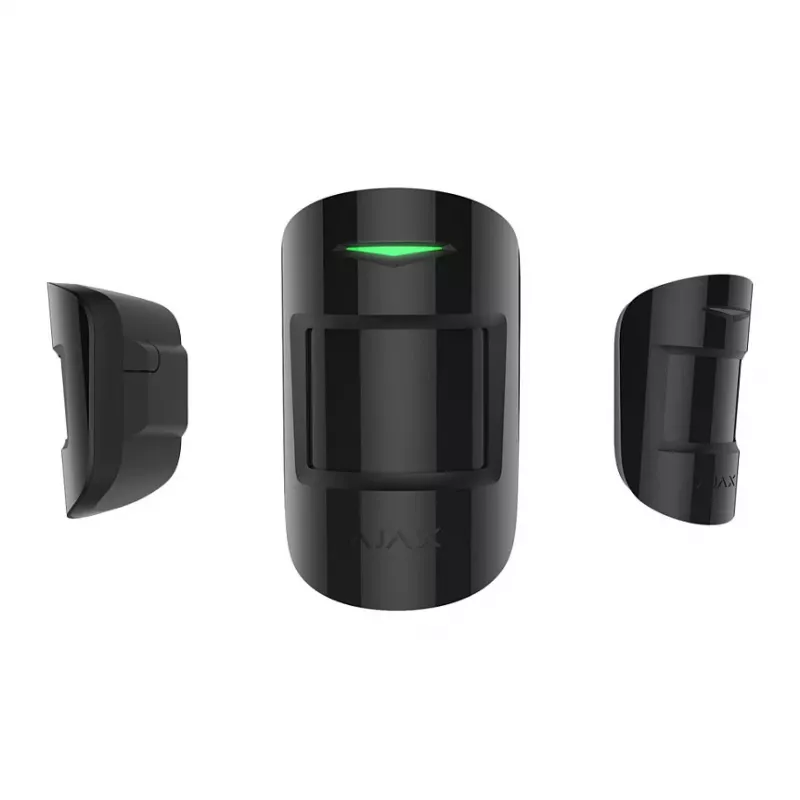

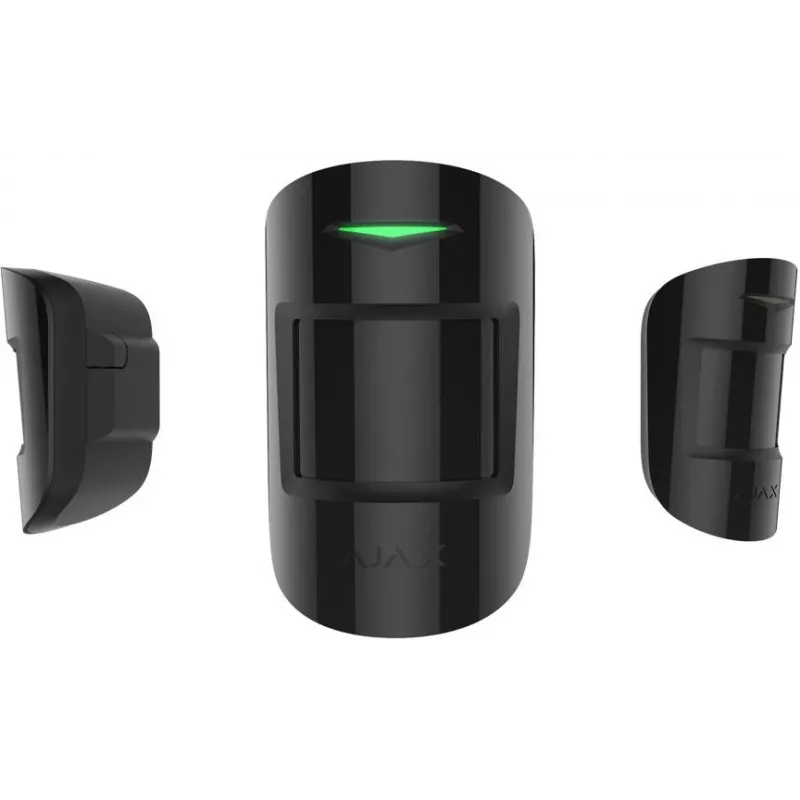

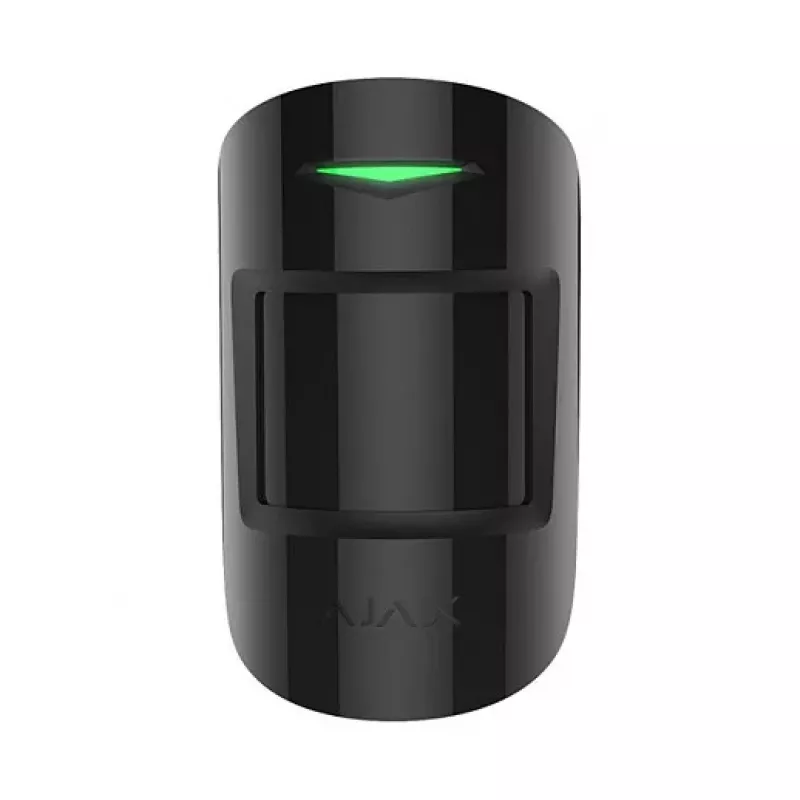

AJAX MotionProtect detector de movimiento PIR inalámbrico negro

The AJAX MotionProtect is a wireless passive infrared (PIR) motion detector designed for indoor use. It provides reliable intrusion detection for residential and commercial security systems, integrating seamlessly with Ajax hubs and range extenders via the Jeweller radio protocol. With pet immunity up to 20 kg and a detection range of 12 meters, it offers precise motion detection while minimizing false alarms.

Advantages

Pet immunity up to 20 kg and 50 cm height ensures pets do not trigger false alarms. The detector features a fast alarm signal delivery time of 0.15 seconds and three sensitivity levels for customization. Its compact design and tamper protection enhance security. Battery life of up to 5 years reduces maintenance.

Suitable for

• Indoor security systems in homes and offices
• Integration with Ajax alarm systems
• Areas requiring pet-friendly motion detection
• Installations where wireless communication up to 1700 m is needed

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Detection Range: Up to 12 m
• Detection Angle: 88.5° horizontal, 80° vertical
• Pet Immunity: Up to 20 kg weight, up to 50 cm height
• Wireless Technology: Ajax Jeweller radio protocol
• Communication Range: Up to 1700 m (open space)
• Frequency Band: 868.0 – 868.6 MHz
• Power Supply: 1 x CR123A battery
• Battery Life: Up to 5 years
• Operating Temperature: -10°C to +40°C
• Operating Humidity: Up to 75%
• Anti-Tampering: Tamper protection against opening
• Color: Black
• Compatibility: All Ajax Hubs and range extenders
• Recommended Mounting Height: 2.4 m
• Alarm Signal Delivery Time: 0.15 s
• Motion Detection Speed: 0.3 to 2 m/s
• Sensitivity Adjustment: 3 levels

Recommendations

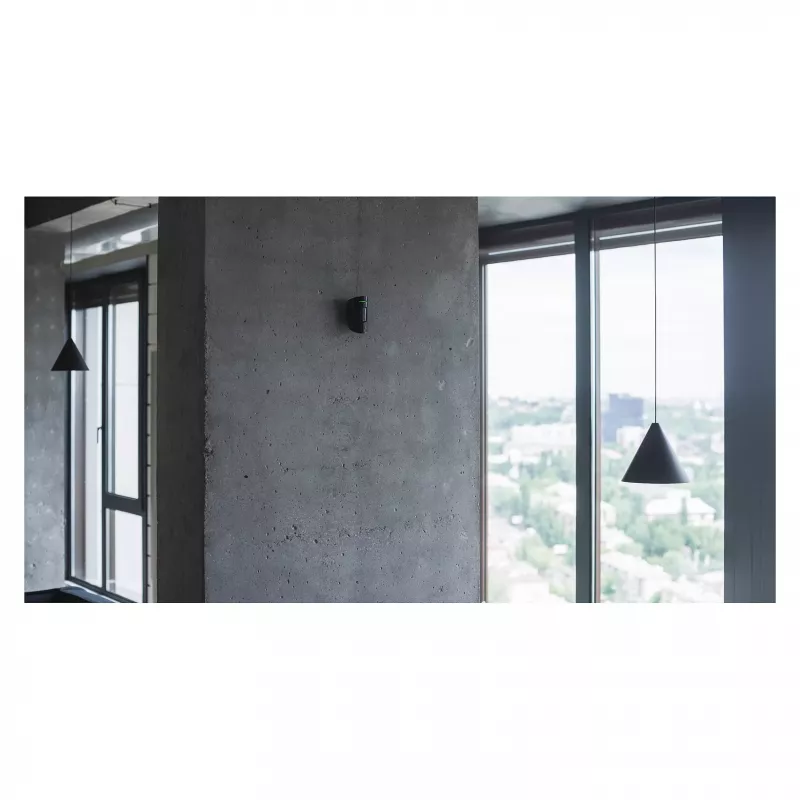

Install at the recommended height of 2.4 m for optimal coverage. Ensure the detector is within range of an Ajax hub or range extender. Test sensitivity settings to suit your environment.
