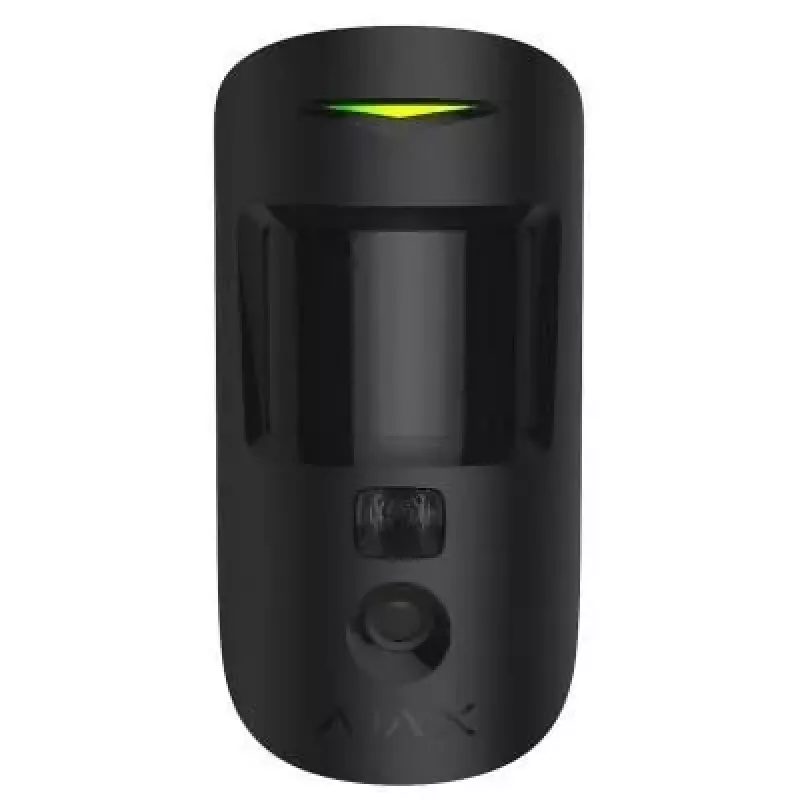

AJAX Wireless MotionCam detector de movimiento con cámara, negro

The AJAX Wireless MotionCam is a sophisticated motion detector with a built-in photo camera, designed for indoor security applications. It combines passive infrared (PIR) motion detection with instant photo capture to provide visual verification of alarms. The device uses Jeweller radio protocol for reliable alarm transmission and Wings protocol for photo transfer, ensuring fast and secure communication with the Ajax hub.

Advantages

Instant visual alarm verification with up to 5 photos per event; pet immunity up to 20 kg; long battery life up to 4 years; tamper protection against opening and removal; easy wireless installation.

Suitable for

• Residential and small business security systems
• Indoor areas requiring visual alarm confirmation
• Integration with Ajax Hub 2 or Hub 2 Plus

Key specifications

• Detection type: Passive Infrared (PIR)
• Camera: Built-in photo camera, VGA resolution (640x480)
• Photo series: 1-5 photos per alarm
• IR backlight: Yes, for night vision
• Motion detection angle: Horizontal 88.5°, Vertical 80°
• Detection distance: Up to 12 m
• Pet immunity: Up to 20 kg, 50 cm height
• Wireless technology: Jeweller (alarms), Wings (photos)
• Frequency: 868.0–868.6 MHz
• Communication range: Up to 1700 m (line of sight)
• Power supply: 2 x CR123A batteries
• Battery life: Up to 4 years
• Operating temperature: -10°C to +40°C
• Humidity: Up to 75%
• Tamper protection: Yes
• Color: Black
• Compatibility: Ajax Hub 2 or Hub 2 Plus

Recommendations

For optimal performance, install the MotionCam in a corner at a height of 2.4 m, avoiding direct sunlight and heat sources. Use only recommended CR123A batteries.
