Akyga AK-EC-23 Cargador para vehículos eléctricos GB/T LCD monofásico 16A 3,8kW 5m

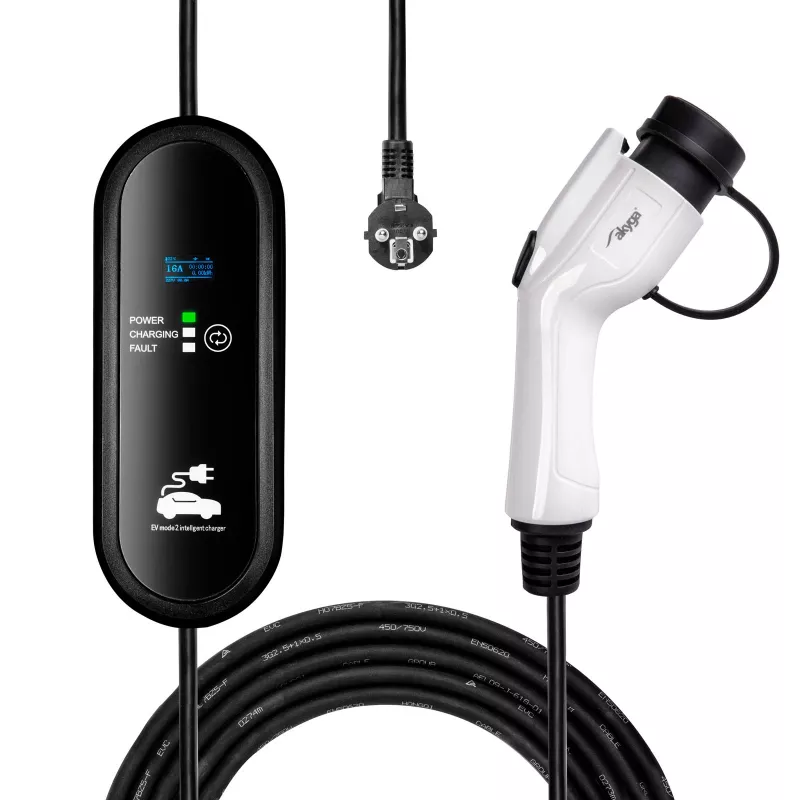

The Akyga AK-EC-23 is a single-phase EV charger equipped with a GB/T connector, designed for electric vehicles imported from China that are not compatible with the European Type 2 standard. It delivers up to 3.8 kW at 16 A and features a 5-metre cable with a CEE 7/7 plug, allowing charging from any 230 V mains socket. The charger includes an LCD display and adjustable charging current.

Key features

• GB/T connector for vehicles imported from China
• Single-phase charging up to 3.8 kW at 16 A
• Adjustable charging current: 8 A, 10 A, 13 A, 16 A

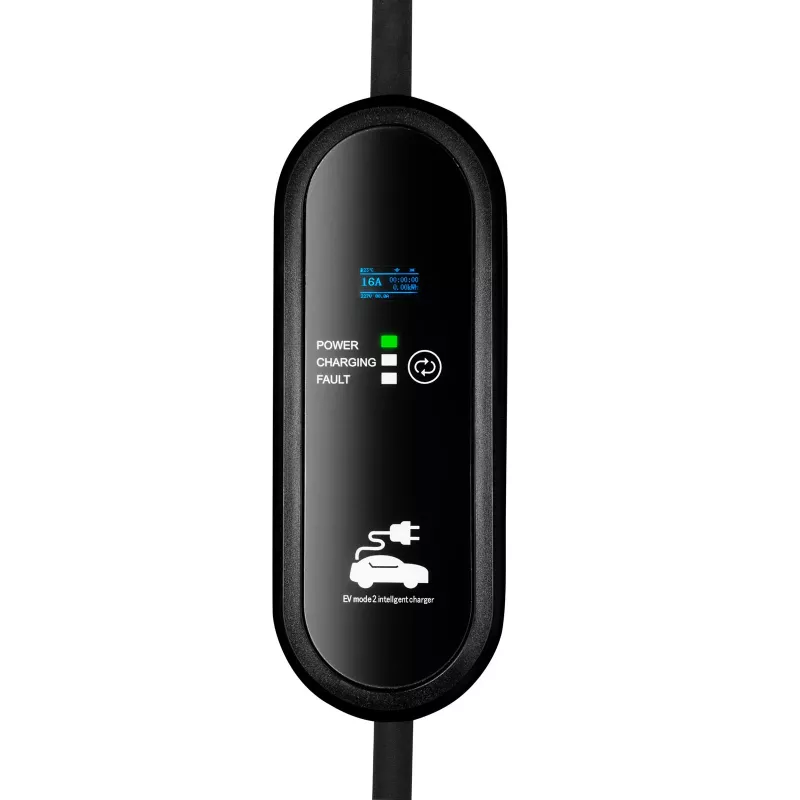

• LCD display shows temperature, current, charging time, voltage, energy consumption and connection status
• Safety features: surge, overcurrent and thermal protection
• IP54 rated for outdoor use
• 5-metre cable with CEE 7/7 plug

Specifications

• Brand: Akyga
• MPN: AK-EC-23
• Product type: Electric Car Accessory
• Supply voltage: 110-250 V / 50/60 Hz
• Number of phases: 1 phase
• Maximum current: 16 A
• Maximum power: 3.8 kW
• Ground wire: Yes
• Flame resistance: UL94V-0
• IP rating: IP54
• OVP: Yes
• OCP: Yes
• OPP: Yes
• OTP: Yes
• SCP: Yes
• Cable length: 5 m

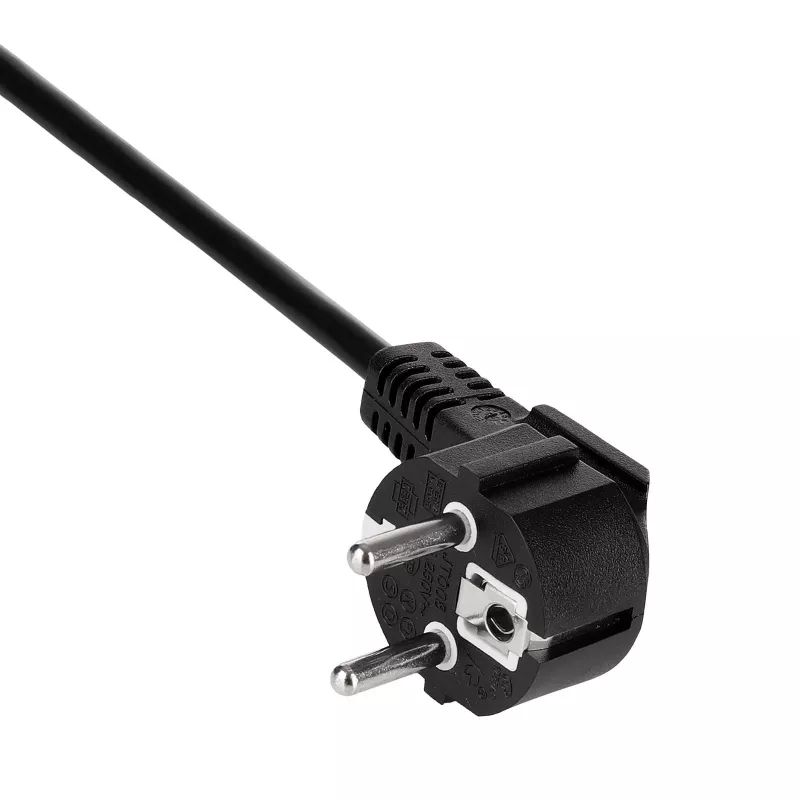

• Cable plug #1: CEE 7/7

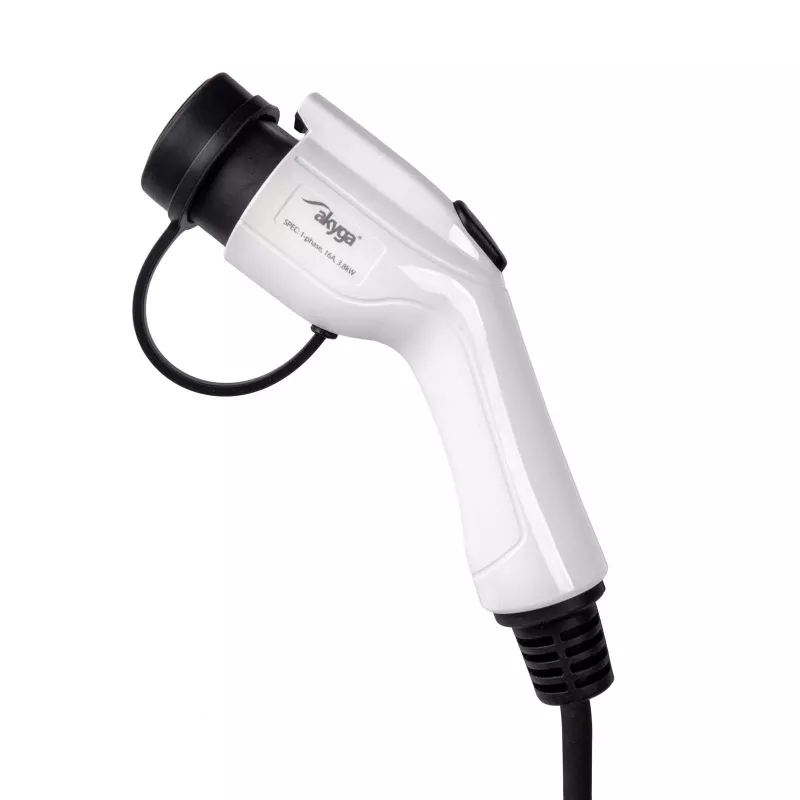

• Cable plug #2: GB/T (20234.2-2015) Male
• Plated plugs: Silver
• Wire gauge: 3 x 2.5 mm² + 1 x 0.5 mm²
• Isolation material: TPE
• Material: ABS
• Product colour: Blue
• Display: Yes
• MTBF: 10000 h
• Temperature: -30 / +50 °C
• Package: EcoBox
• Net weight: 2 kg
• CE compatibility: Yes
• FCC compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes

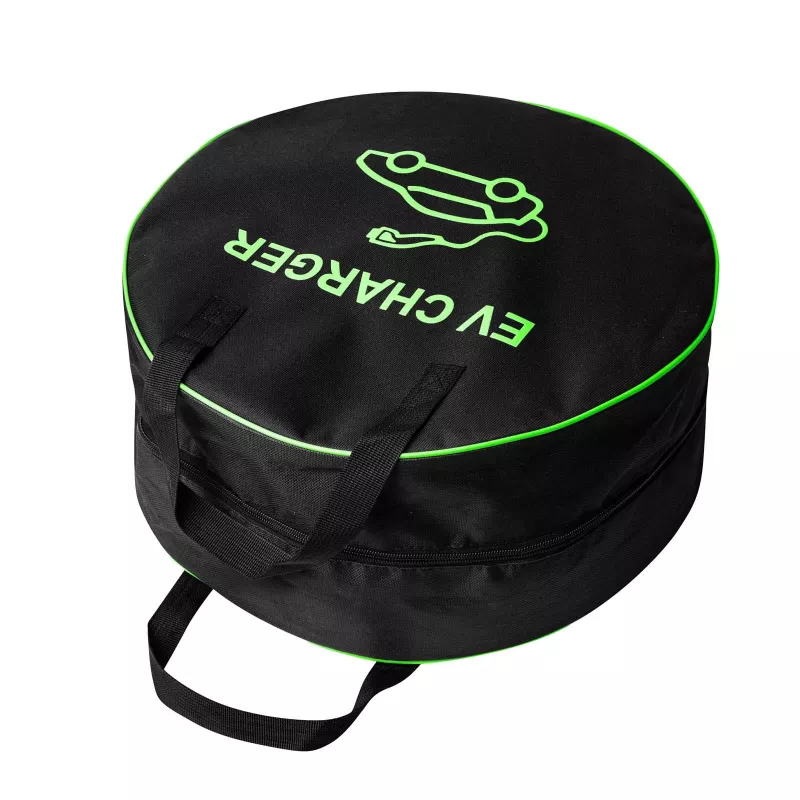

• Included accessories: Protective bag
• EAN code: 5906708750900
