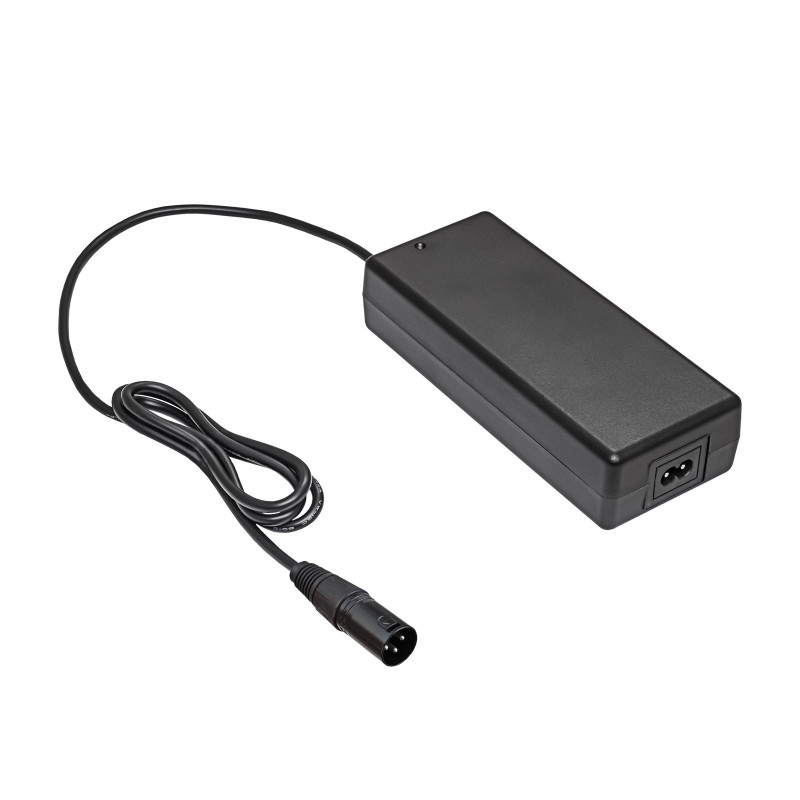

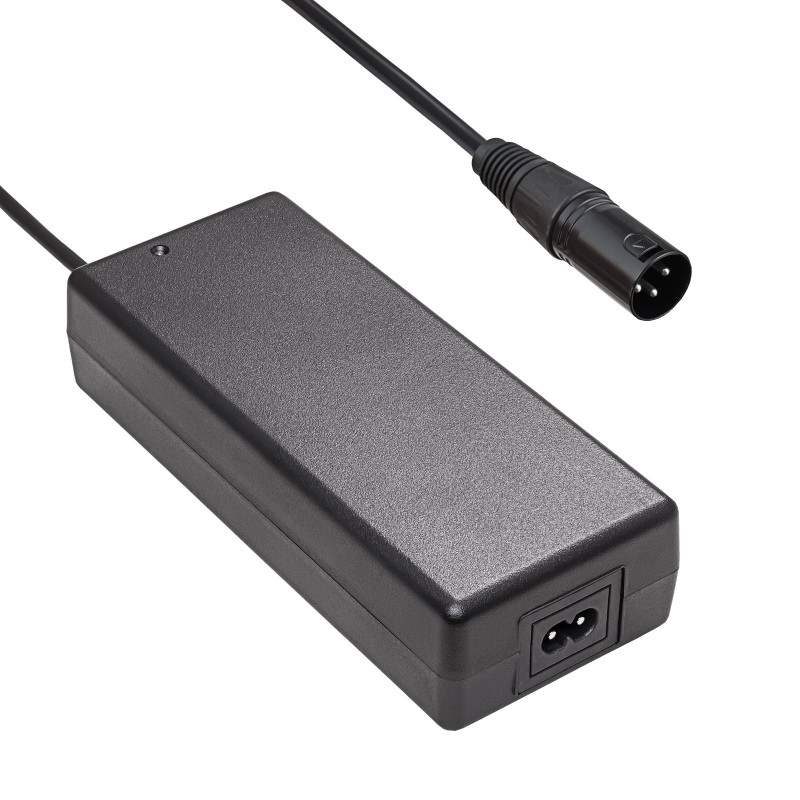

Akyga AK-EV-04 cargador para bicicletas eléctricas para baterías de 48 V, 54,6 V / 2 A, 110 W, conector macho XLR de 3 pines, 1 m

The Akyga AK-EV-04 is a charger designed for electric bicycles with a 48 V lithium-ion battery pack. It delivers a maximum power of 110 W and features an output cable terminated with a Cannon XLR male connector.

Key features

• Designed for eBike vehicles with 48 V lithium-ion battery pack
• Maximum power: 110 W

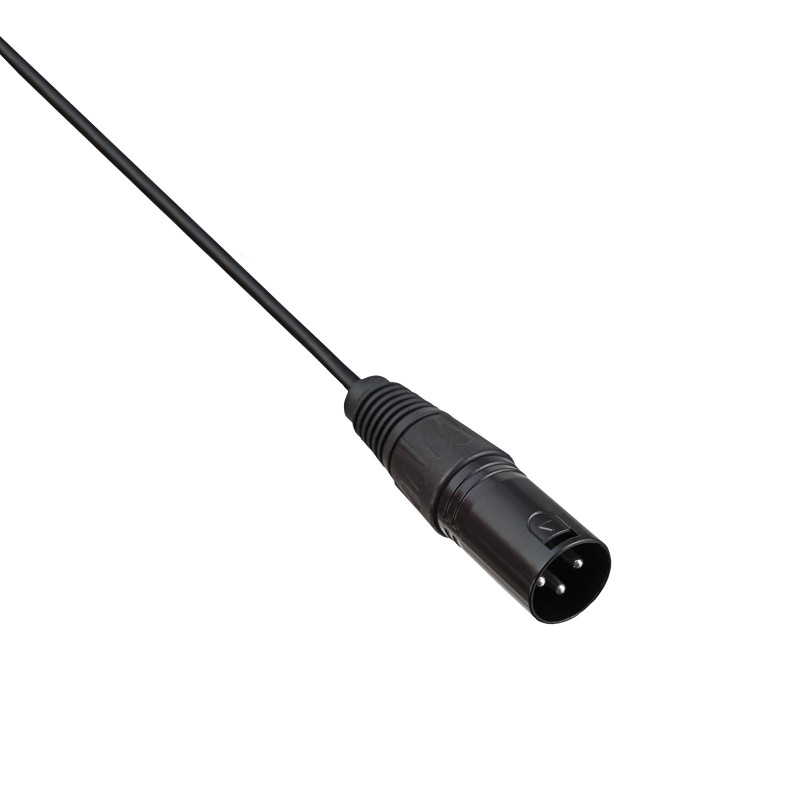

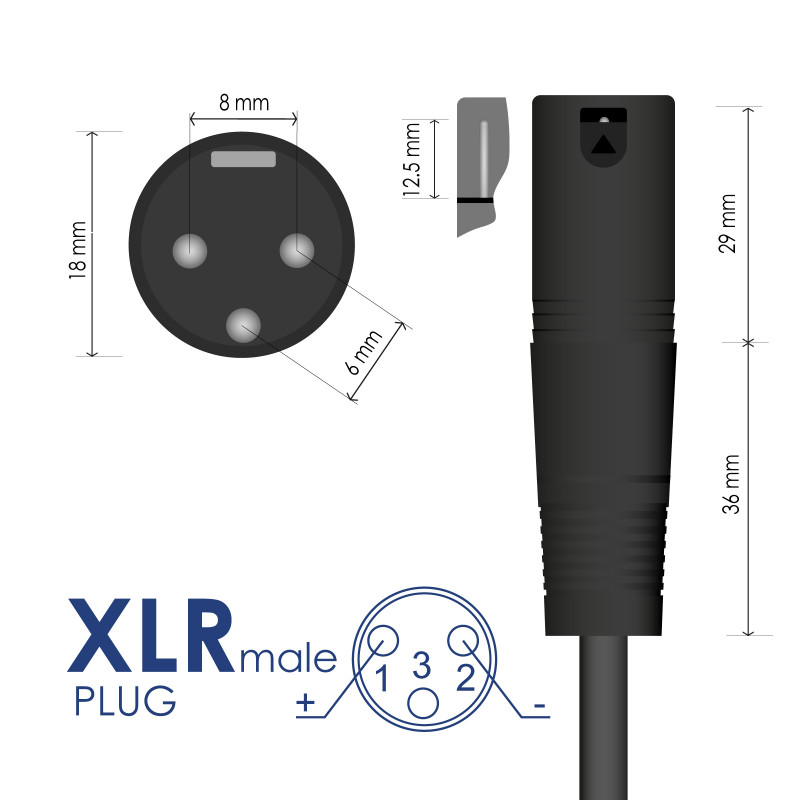

• Output connector: Cannon (3 DIN) XLR (m)
• Efficiency: > 80 %
• LED control indicating charging duration or completion
• OVP, OCP, OPP, SCP protections
• Compatible with bicycle brands like Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle, etc.

Specifications

• Brand: Akyga
• MPN: AK-EV-04
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Output voltage: 54.6 V
• Output amperage: 2 A
• Output cord length: 1 m

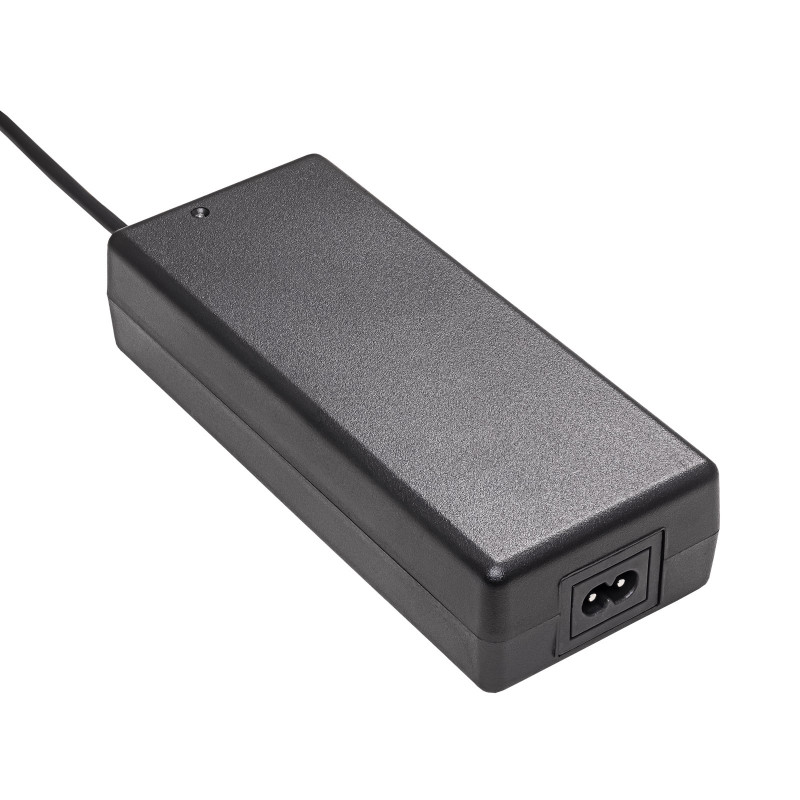

• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• Material: ABS
• Product colour: Black
• Backlight colour: Bicolor diode
• Display: None
• MTBF: 10000 h
• Product size (L x W x H): 170 x 40 x 72 mm
• Net weight: 467 g
