Akyga AK-EV-05 cargador para bicicletas eléctricas para baterías de 48 V, 54,6 V / 2 A, 110 W, conector hembra GX16 12 mm, 1 m

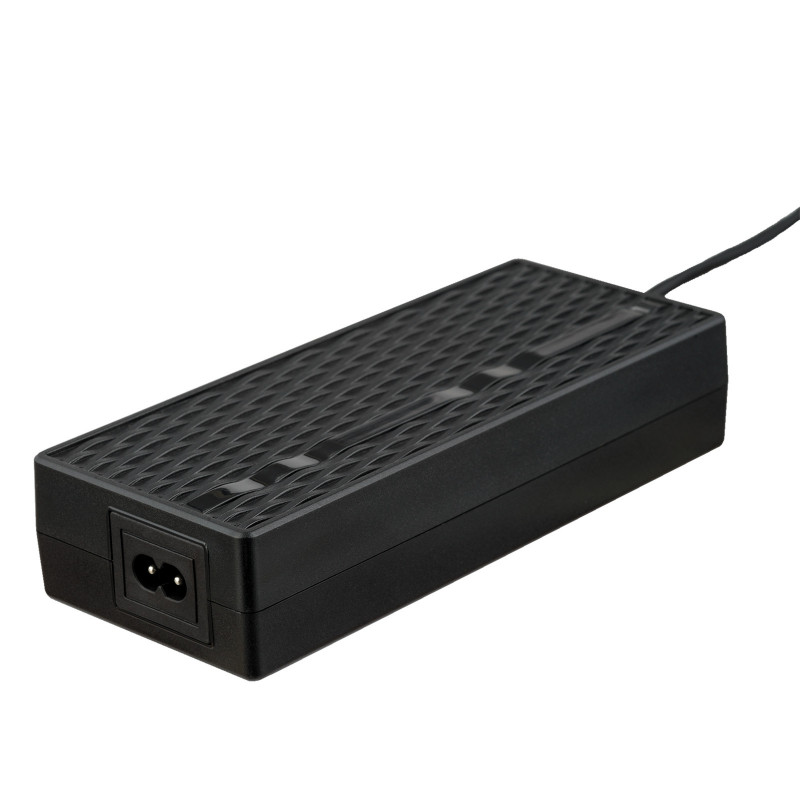

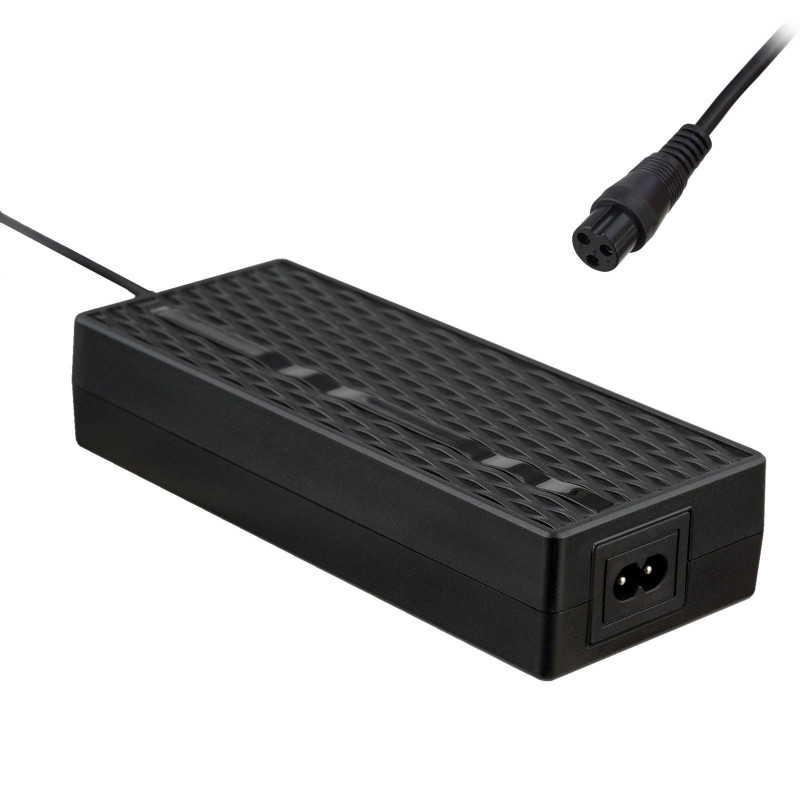

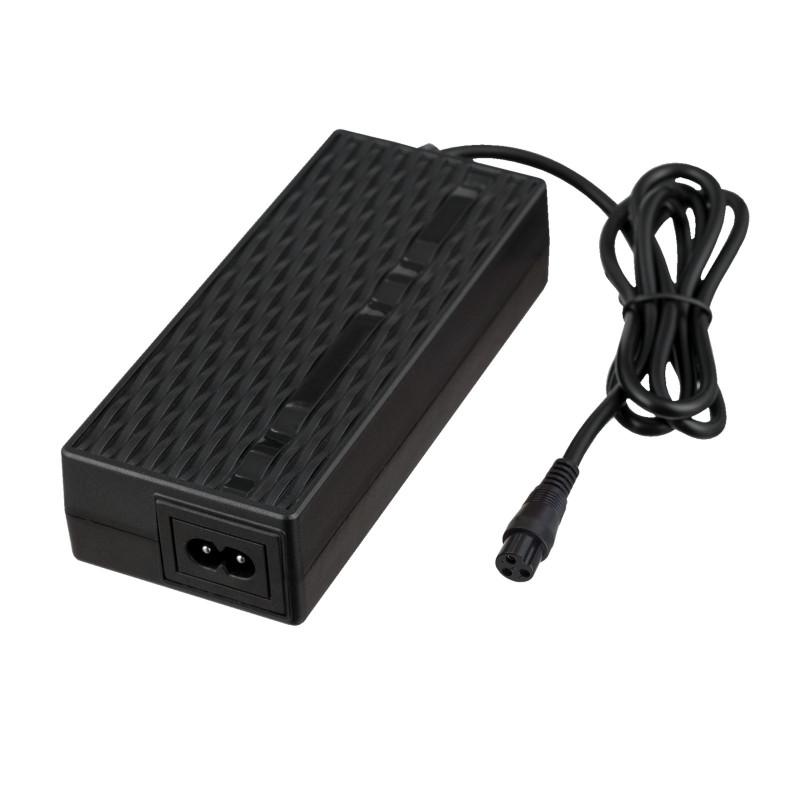

The Akyga AK-EV-05 is an AC/DC adapter designed for charging electric bicycles with a 48 V cell pack. It features a GX16 12 mm female output connector on a 1-meter cable and is powered via an IEC C8 inlet.

Key features

• Output voltage: 54.6 V
• Output amperage: 2 A
• Maximum power: 110 W
• Efficiency: > 80%
• LED control for charging status
• OVP, OCP, OPP, SCP protections
• IP20 rating
• Black colour

Specifications

• Brand: Akyga
• MPN: AK-EV-05
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Output voltage: 54.6 V
• Output amperage: 2 A
• Outlet cord length: 1 m

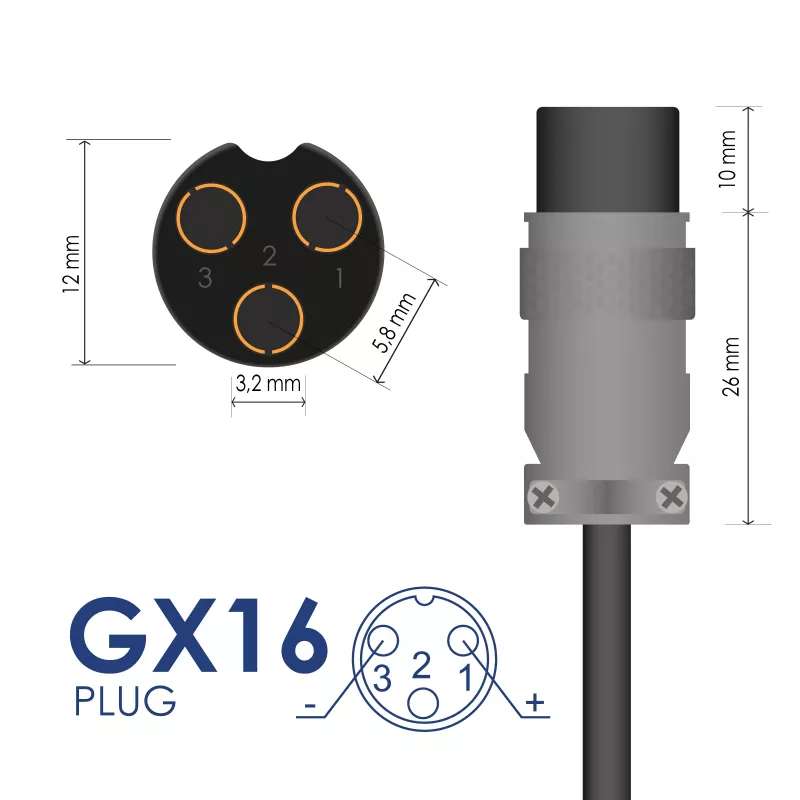

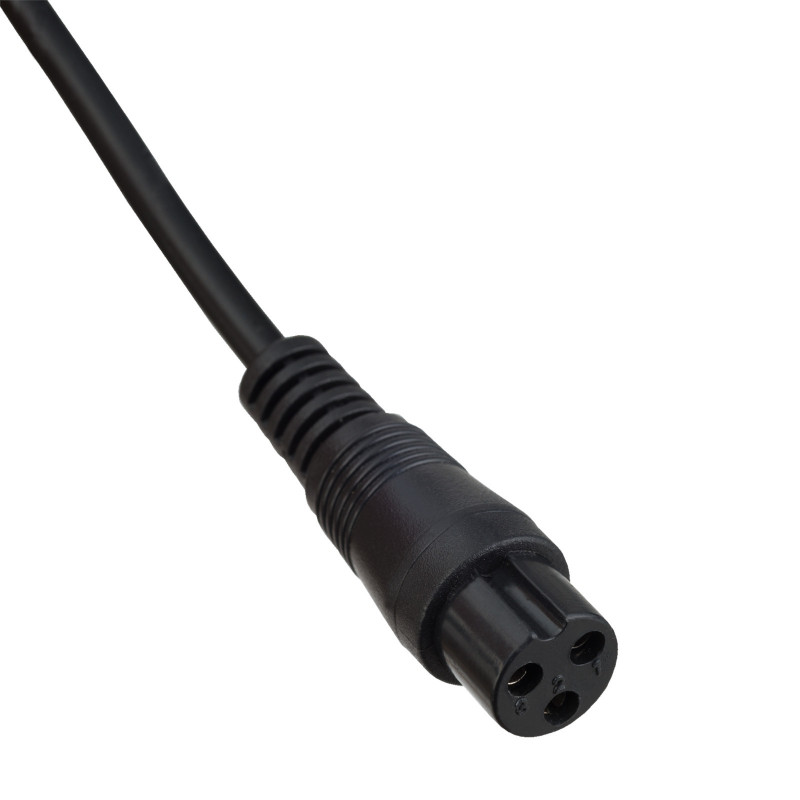

• Output connector: GX16 12 mm (f)
• Maximum power: 110 W
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Ferrite filter: None
• Power cable included: None
• Material: ABS
• Product colour: Black
• Backlight colour: Bicolor diode
• Display: None
• MTBF: 10000 h
• Product size (L x W x H): 172 x 73 x 37 mm
• Net weight: 459 g
