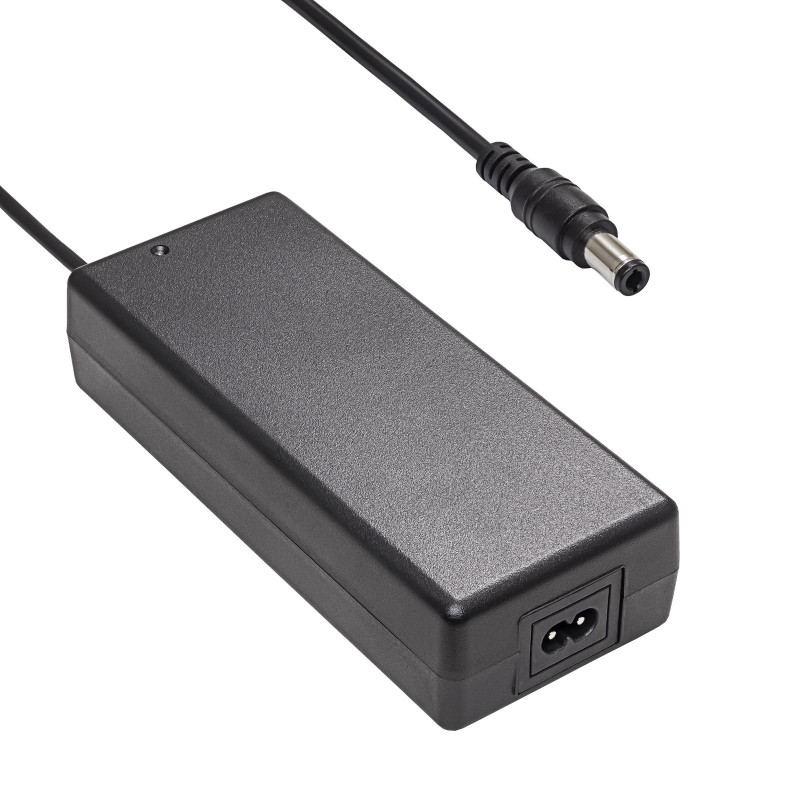

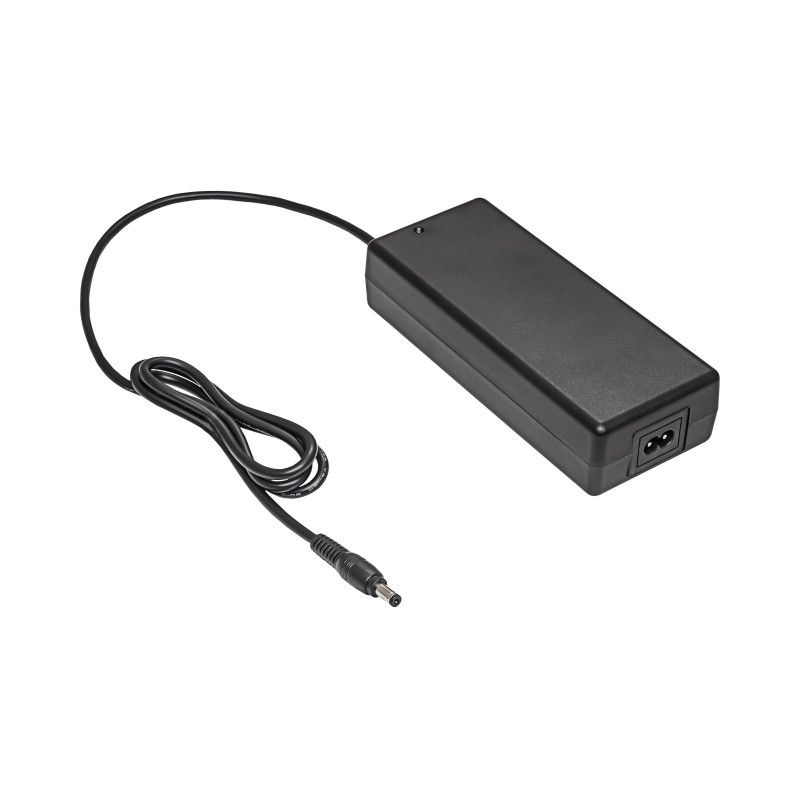

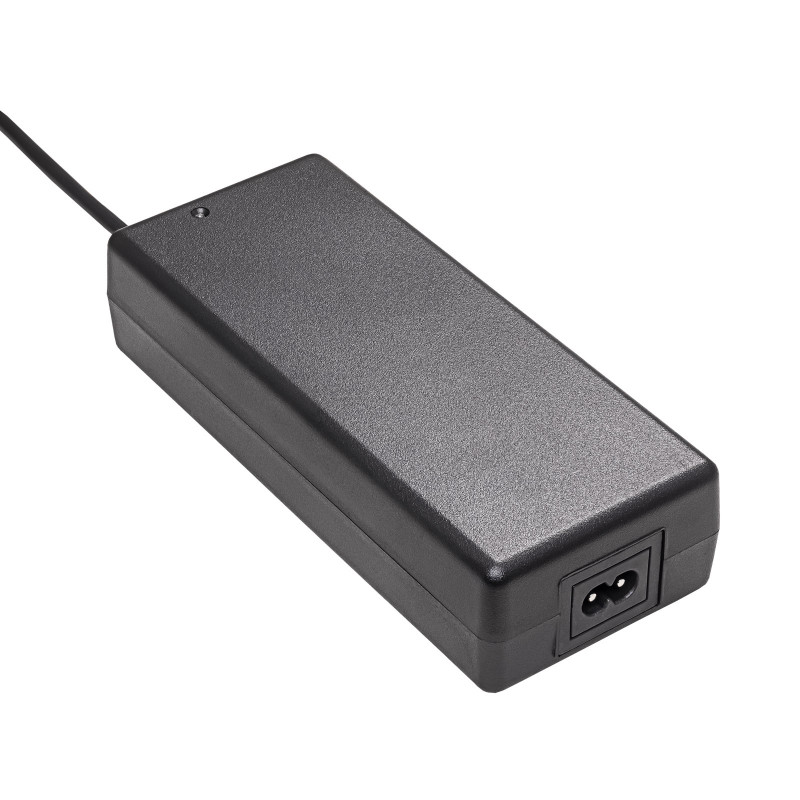

Akyga AK-EV-06 cargador para baterías de 48 V, 54,6 V / 2 A 110 W, DC 5,5 x 2,1 mm, 1 m

The Akyga AK-EV-06 is an AC/DC adapter designed for charging bicycles and electric skateboards equipped with 48 V batteries. It delivers a maximum power of 110 W with an output of 54.6 V / 2 A and features a 1-meter output cable with a 5.5 x 2.1 mm DC plug. The charger includes an LED indicator that changes from red to green when charging is complete.

Key features

• Designed for 48 V batteries in bicycles and electric skateboards
• LED control changes from red to green when charging is complete
• Compatible with popular vehicle models such as Archos, Koowheel, etc.
• Compatible with bicycle brands like Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle, etc.
• OVP, OCP, OPP, SCP protections
• II protection class

Specifications

• Brand: Akyga
• MPN: AK-EV-06
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Efficiency: > 80 %
• Output voltage: 54.6 V
• Output amperage: 2 A
• Outlet cord length: 1 m

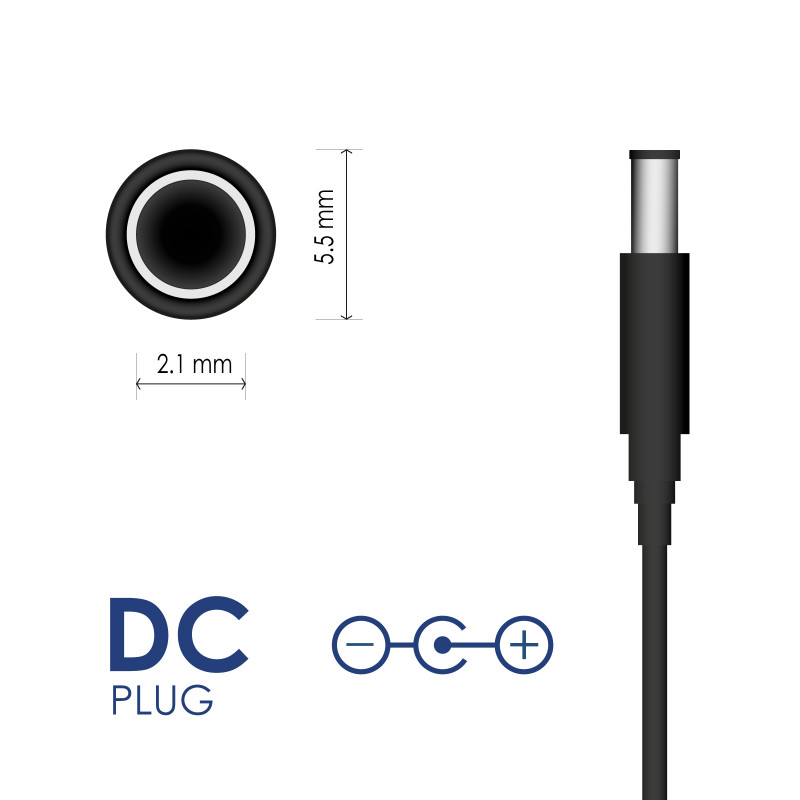

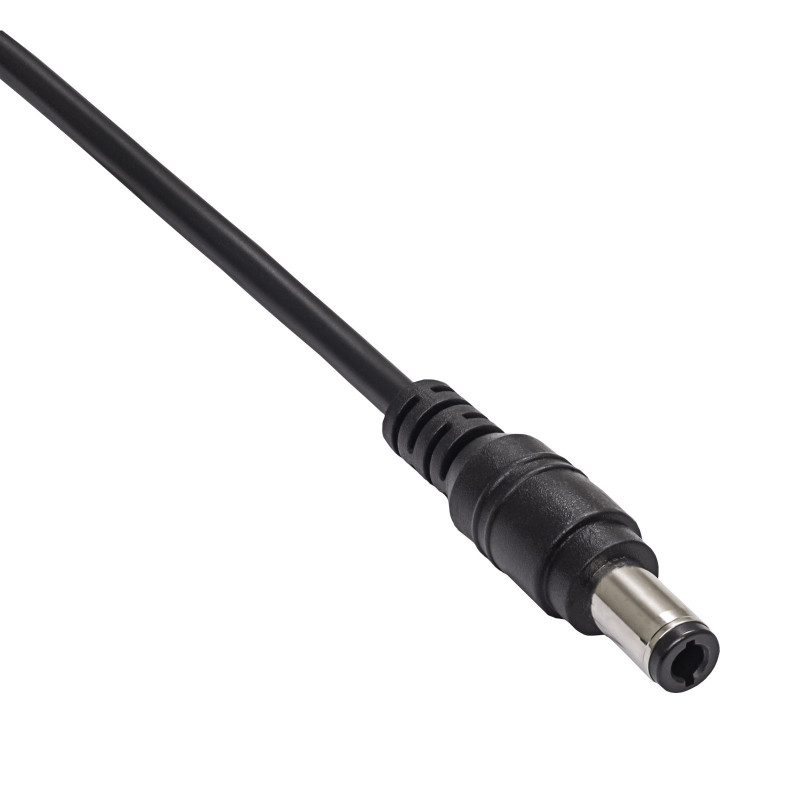

• Output connector: DC 5.5 x 2.1 mm
• Maximum power: 110 W
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Ferrite filter: None
• Power cable included: None
• Material: ABS
• Product color: Black
• Backlight color: Bicolor diode
• Display: None
• MTBF: 10000 h
• Package: EcoBox
• Product size (L x W x H): 170 x 40 x 72 mm
• Net weight: 452 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720135933
