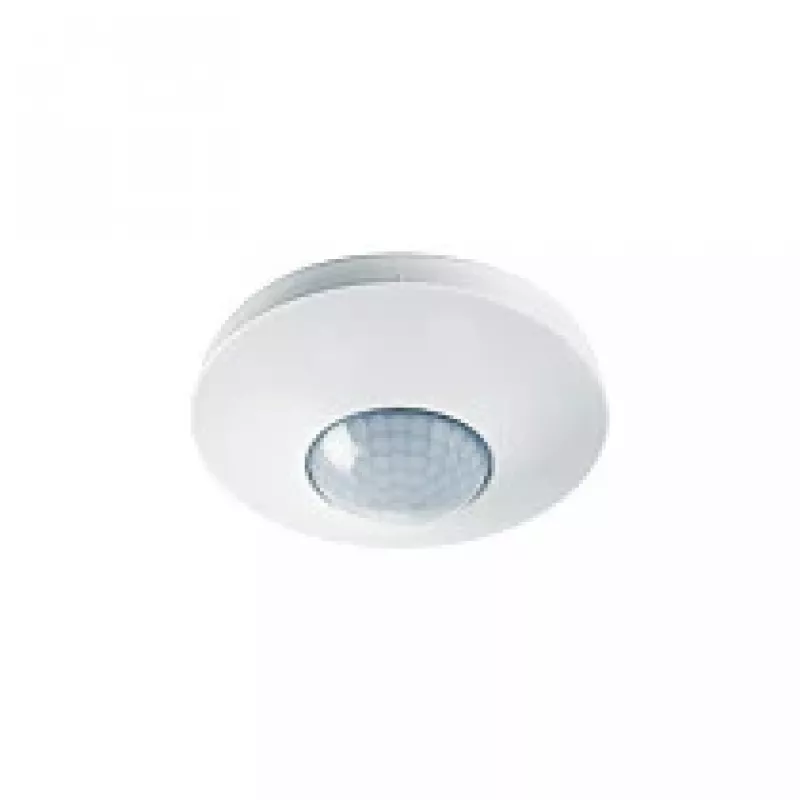

ESYLUX MD-C 360i/8 sensor infrarrojo pasivo (PIR), montaje en techo, 8 m de cobertura, blanco

The ESYLUX MD-C 360i/8 is a high-quality passive infrared (PIR) sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and an 8-meter tangential detection range, it provides reliable presence and motion detection for energy-efficient lighting management. The sensor is flush-mounted on the ceiling and features a fully automatic control mode, adjustable time delay (60 s to 16 min), and a light sensor range of 5 to 2000 lux. Its robust UV-stabilised polycarbonate housing ensures long-lasting performance, while the white finish (RAL 9010) blends seamlessly with modern interiors.

Advantages

Energy savings through demand-based lighting control; easy installation with flush-mounted design; adjustable settings for time delay and light threshold; reliable detection even in challenging ambient temperatures (-25 °C to +50 °C); low standby power consumption (<0.5 W).

Suitable for

• Office spaces
• Conference rooms
• Corridors and stairwells
• Storage rooms
• Any indoor area requiring automatic lighting control

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Angle: 360°
• Detection Range (Tangential): 8 m diameter (at 2.5 m mounting height)
• Detection Range (Presence): 3 m diameter (at 2.5 m mounting height)
• Mounting Type: Ceiling flush-mounted
• Recommended Mounting Height: 2.0 - 3.0 m
• Operating Voltage: 230 V AC, 50 Hz
• Max. Switching Capacity (Resistive Load): 2300 W / 10 A
• Max. Switching Capacity (Inductive Load): 1150 VA / 5 A (cos φ = 0.5)
• Light Sensor Range: 5 - 2000 Lux
• Time Delay Setting: 60 s - 16 min
• Protection Class: IP20
• Ambient Temperature Range: -25 °C to +50 °C
• Color: White (RAL 9010)
• Standby Power Consumption: < 0.5 W
• Control Mode: Fully automatic
• Material: UV-stabilised polycarbonate
• Installation Depth: 60 mm

Recommendations

For optimal performance, mount the sensor at the recommended height of 2.5 m and ensure the detection area is free from obstructions. Pair with compatible lighting loads up to 2300 W resistive or 1150 VA inductive.
