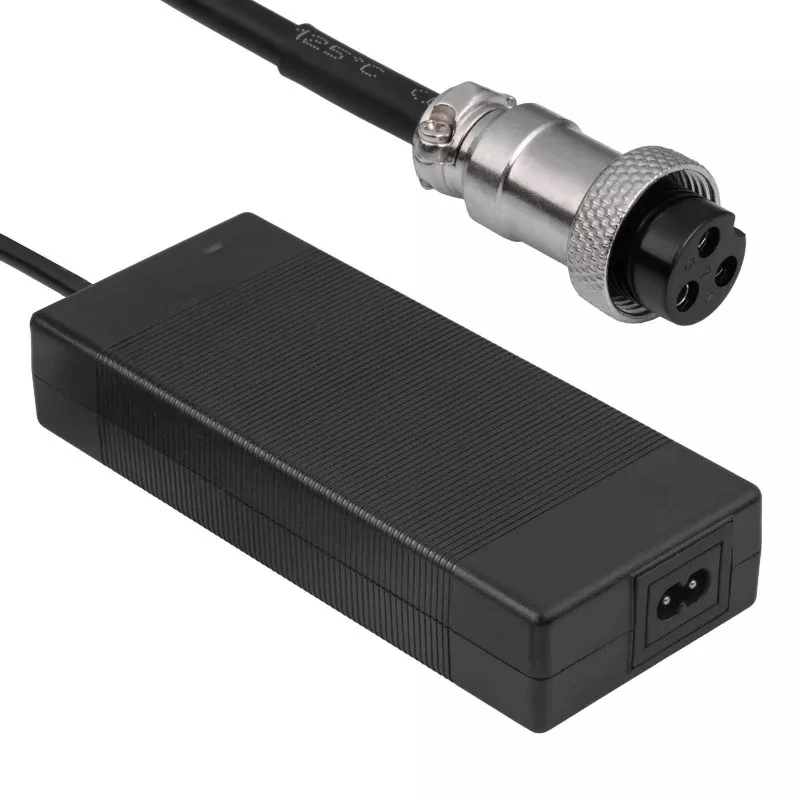

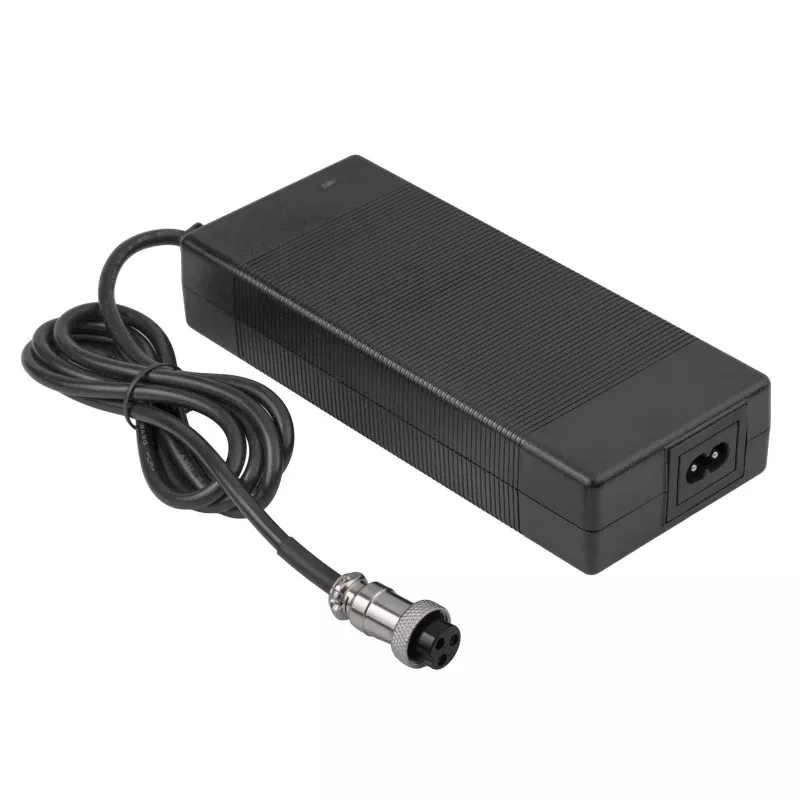

Akyga AK-EV-22 cargador para bicicleta eléctrica para baterías de litio de 60 V (16S), 67,2 V, 2 A, 135 W, conector hembra GX16 12 mm, 1,2 m

The Akyga AK-EV-22 is an AC/DC adapter designed for charging 60 V (16S) lithium-ion batteries, delivering 67.2 V at 2 A and 135 W. It features a GX16 12 mm female connector and a 1.2 m power cable, making it suitable for e-bikes, electric scooters, mobility scooters, and electric skateboards.

Key features

• Output voltage: 67.2 V
• Output current: 2 A
• Output power: 135 W

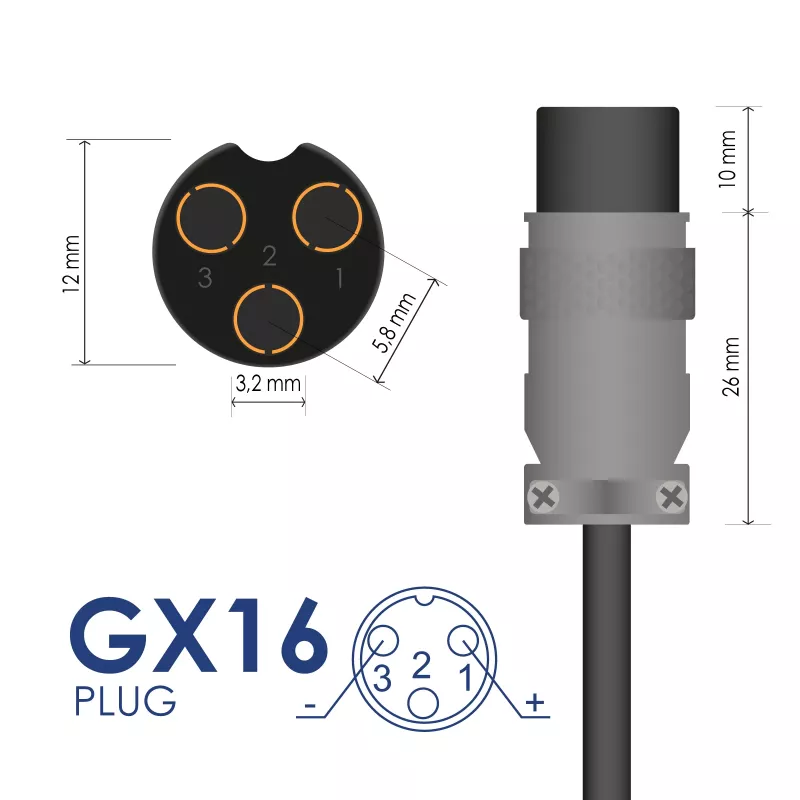

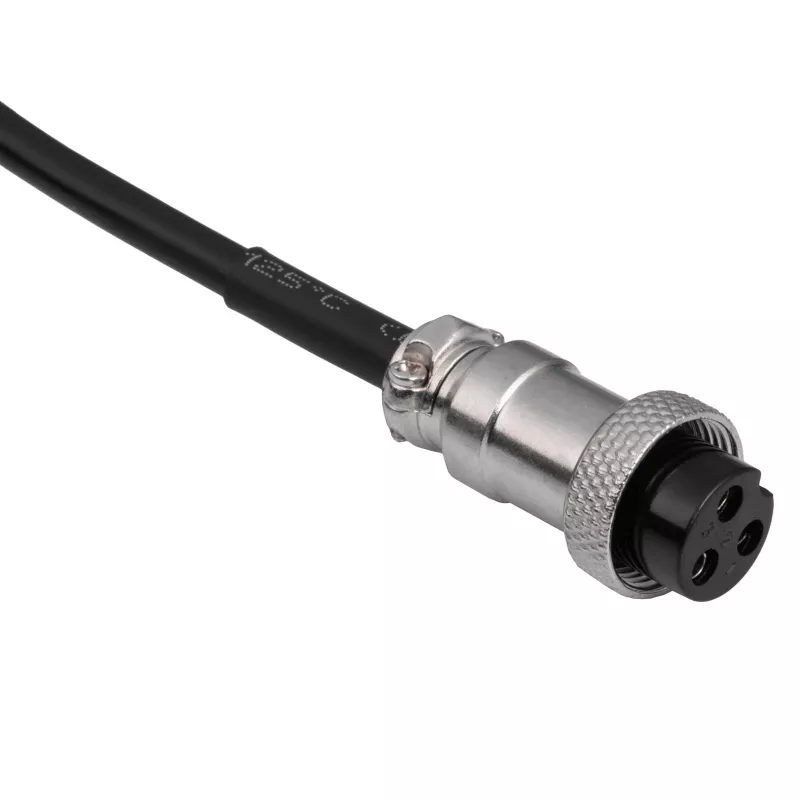

• Connector type: GX16 12 mm female
• Power cable length: 1.2 m
• AC input voltage: 100-240 V AC
• AC input frequency: 50/60 Hz
• Power protection features: Over voltage, Over current, Over power, Short circuit
• Suitable for: E-bikes, Electric Scooters, Mobility Scooters, Electric Skateboards
• Product colour: Black
• Housing material: ABS Plastic
• Compliance certificates: CE, RoHS, REACH

Specifications

• Brand: AKYGA
• MPN: AK-EV-22
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 2.5 A
• Efficiency: > 80 %
• Output voltage: 67.2 V
• Output amperage: 2 A
• Outlet cord length: 1.2 m
• Output connector: GX16 12 mm (f)
• Pin length: 10 mm
• Maximum power: 135 W
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Ferrite filter: None
• Power cable included: None
• Material: ABS
• Product color: Black
• Backlight color: Bicolor diode
• Display: None
• MTBF: 10000 h
• Product size (L x W x H): 170 x 77 x 32 mm
• Net weight: 514 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
