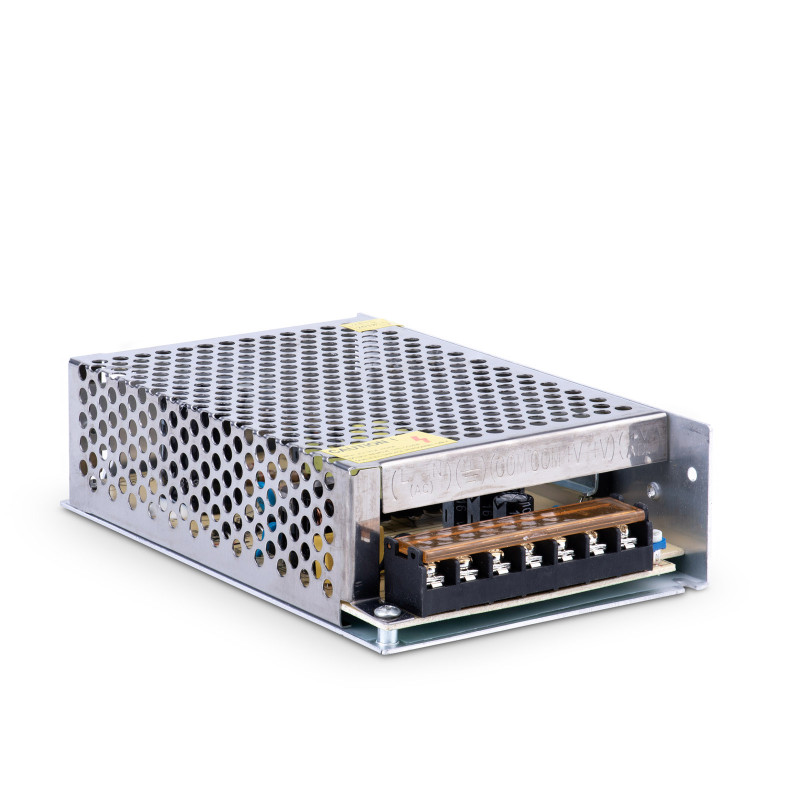

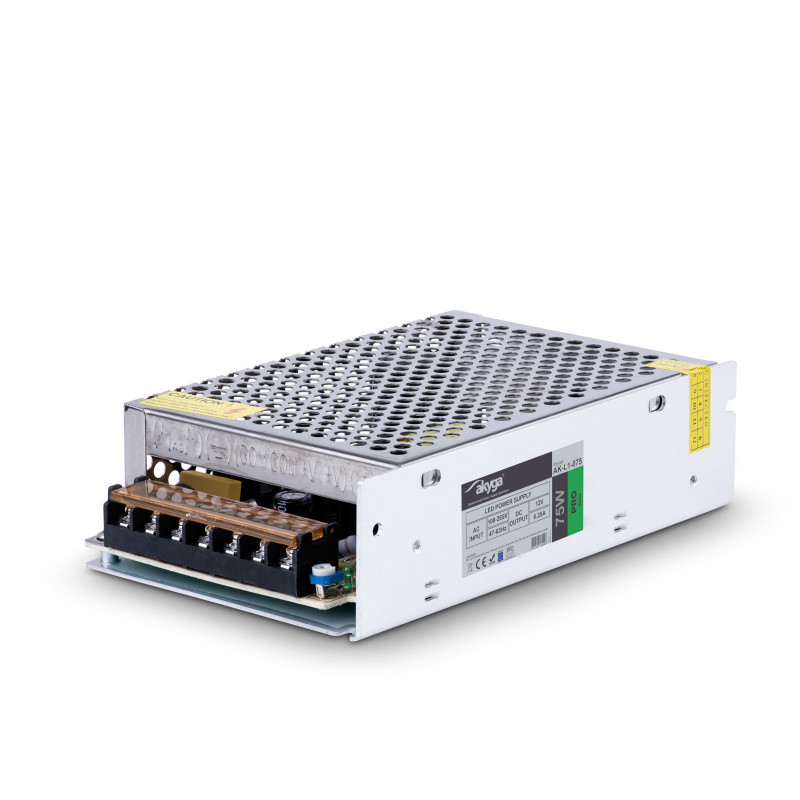

Akyga AK-L1-075 Fuente de alimentación conmutada LED 12 V, 6,25 A, 75 W, IP20

The Akyga AK-L1-075 is a 75W LED power supply designed for industrial automation systems, machine control, and LED lighting. It delivers 12V DC at 6.25A and can power LED strips, LED bulbs, LED panels, RGB LED drivers, and other electronic equipment requiring 11-15V DC. The output voltage is regulated by a potentiometer.

Key features

• 75W power supply for industrial automation, machine control, and LED lighting
• Output: 12V DC, 6.25A
• Voltage regulated by potentiometer
• Can power two different circuits simultaneously
• Protections: OVP, OCP, OPP, OTP, SCP
• Screw power supply connector
• IP20 rating

Specifications

• Brand: Akyga
• MPN: AK-L1-075
• Product type: LED power supply
• Series: Pro
• Supply voltage: 100-265 V
• Output voltage: 12V DC (11-15V DC regulated)
• Current capacity: 6.25A
• Power: 75W
• Mechanical switch: None
• IP rating: IP20
• Power supply connector: Screw
• Operating temperature: 5 - 50 °C
• Product size (L x W x H): 159 x 98 x 43 mm
• Net weight: 298 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720134998
