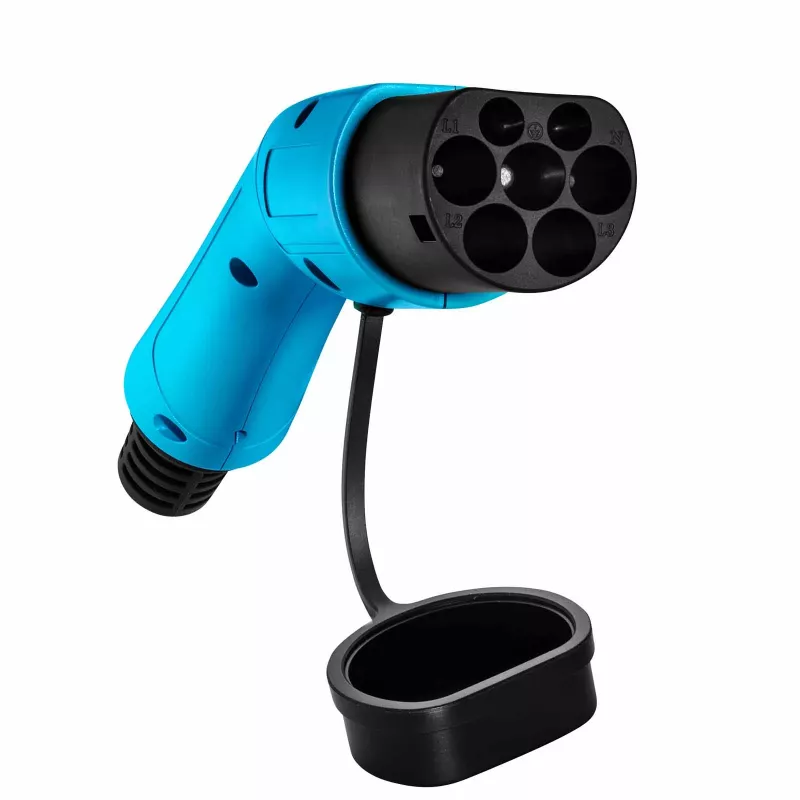

Akyga AK-SC-E16 Conector de carga de VE Tipo 2, trifásico, 32 A, azul

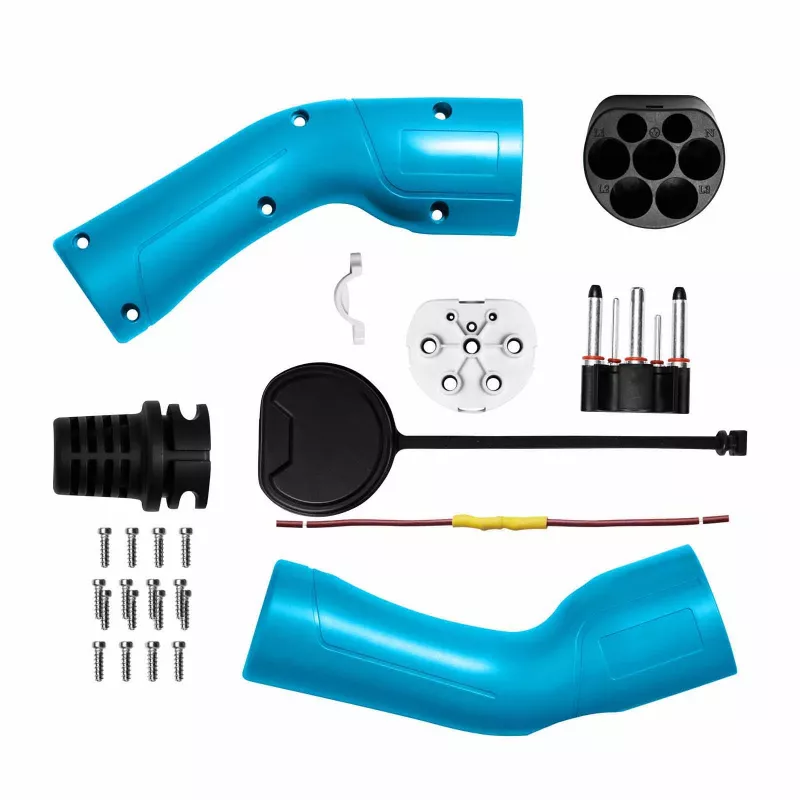

The Akyga AK-SC-E16 is a three-phase Type 2 (IEC 62196-2) male EV charging plug designed for electric vehicle charging. It is suitable for replacing a damaged connector or building a custom charging cable.

Key features

• Type 2 (IEC 62196-2) male connector
• Three-phase
• Maximum current: 32 A
• Silver-plated contacts
• Blue colour

Specifications

• Product type: EV charging plug
• Connector 1: Type 2 (IEC 62196-2) male
• Number of phases: 3
• Maximum current: 32 A
• Connector contacts plating: Silver
• Product colour: Blue
• Operating temperature (T-T): -30~+50
• Weight: 380 g
• Product size (L x W x H): 240 x 110 x 45 mm
• Brand: Akyga
• MPN: AK-SC-E16
