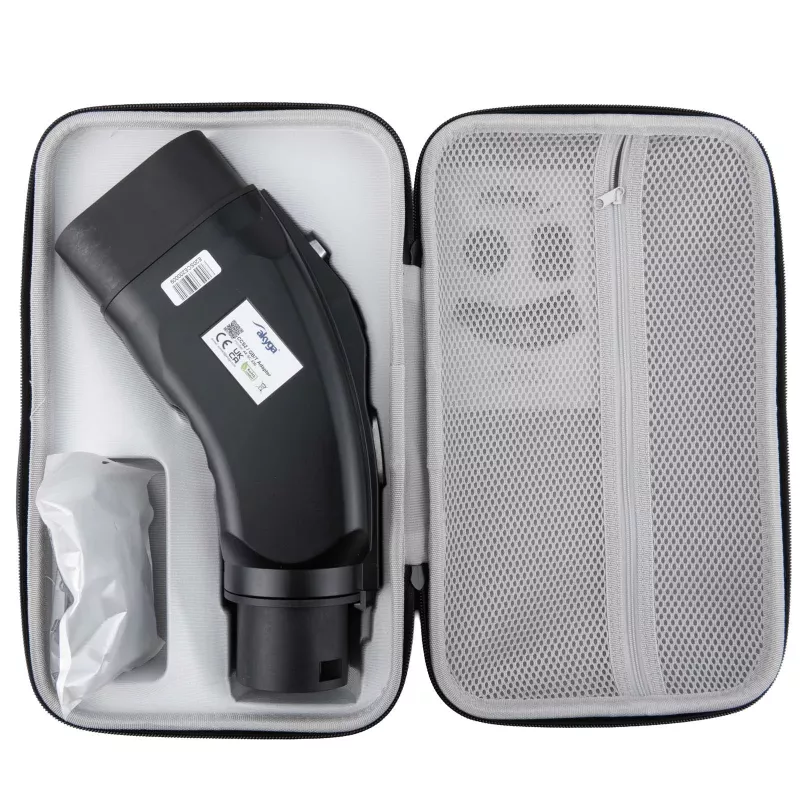

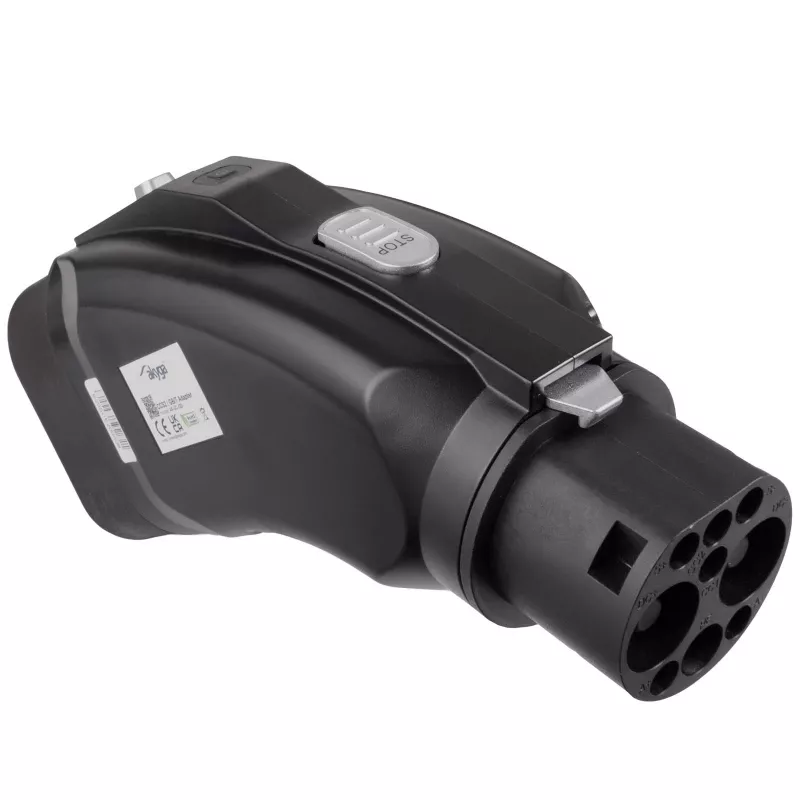

Akyga AK-SC-E20 adaptador de carga CCS2 a GB/T DC 1000V 250A negro

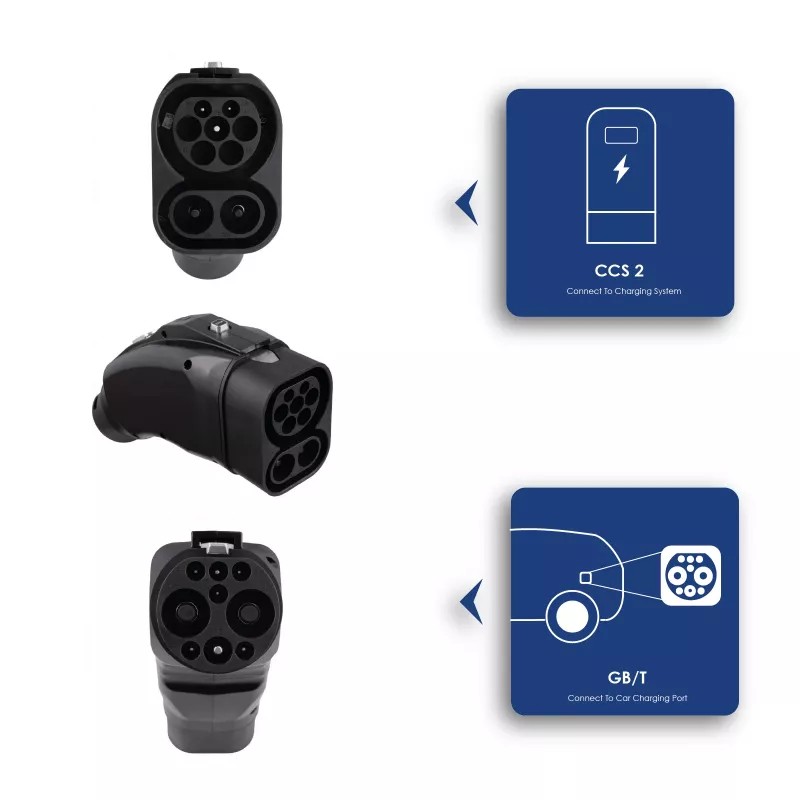

The Akyga AK-SC-E20 is a high-performance DC charging adapter designed to bridge CCS2 (Combined Charging System Type 2) charging stations with electric vehicles equipped with a GB/T DC charging port. This adapter enables fast and reliable DC charging at up to 250 kW, making it an essential accessory for EV owners and fleet operators in regions where GB/T is the standard.

Advantages

Enables seamless compatibility between CCS2 infrastructure and GB/T vehicles. Supports ultra-fast DC charging up to 250 kW, significantly reducing charging time. Robust construction with IP54 rating ensures durability in various weather conditions. Silver-plated copper alloy contacts provide excellent conductivity and long mechanical life exceeding 10,000 mating cycles.

Suitable for

• Electric vehicles with GB/T DC charging port
• CCS2 charging stations (public or private)
• EV fleet operators requiring cross-standard charging
• Home and commercial charging setups

Key specifications

• Product Type: EV DC Charging Adapter

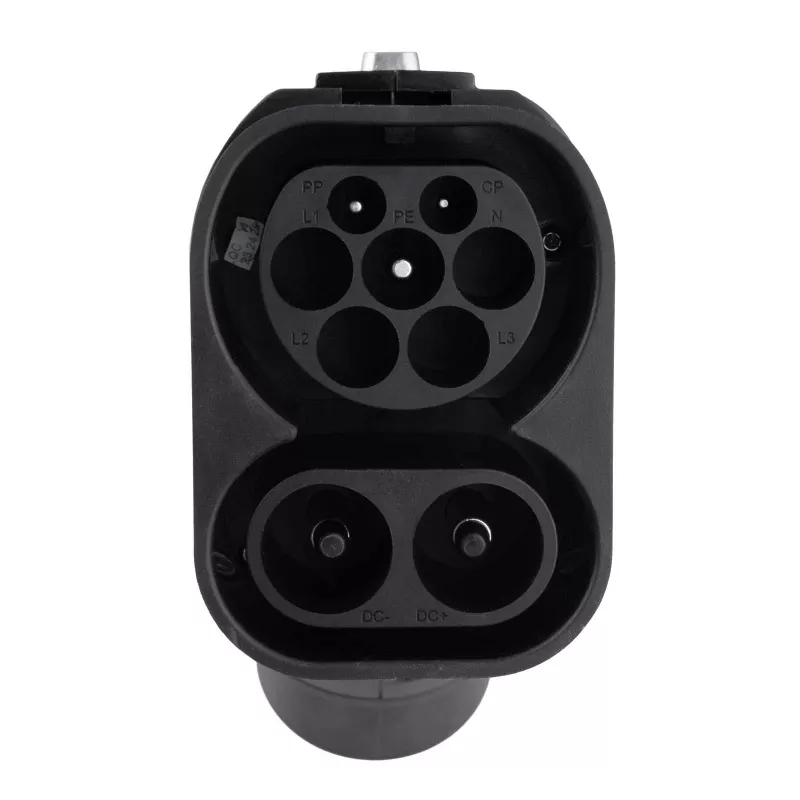

• Input Connector: CCS2

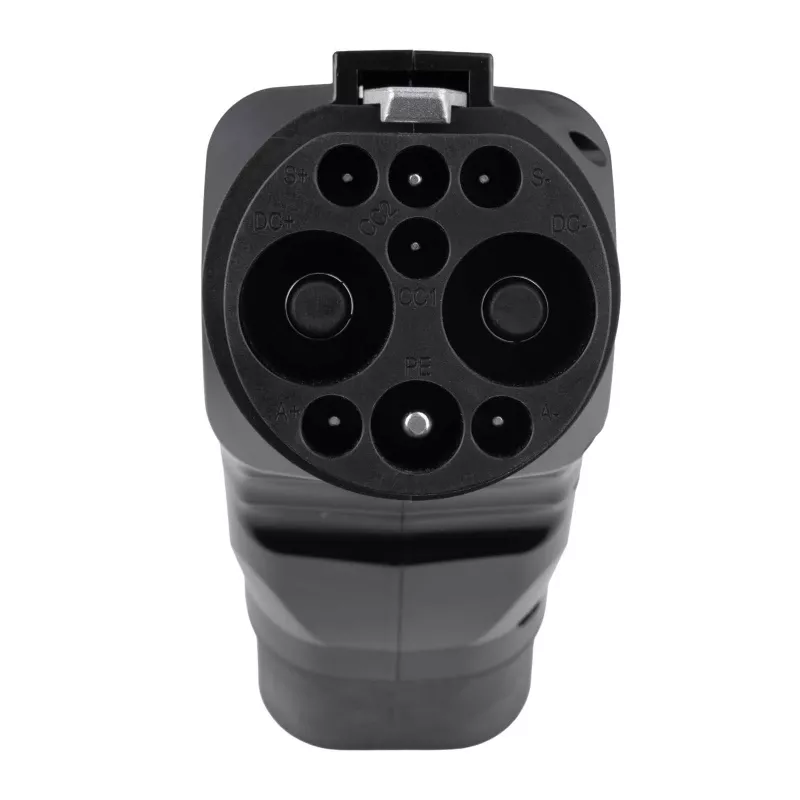

• Output Connector: GB/T DC
• Maximum DC Voltage: 1000 V
• Maximum DC Current: 250 A
• Maximum DC Power: 250 kW
• Charging Protocol: DC Fast Charging
• Housing Material: Thermoplastic
• Contact Material: Copper Alloy, Silver Plating
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -40°C to +80°C
• Ingress Protection: IP54 (when mated)
• Insulation Resistance: >1000 MΩ (DC500V)
• Withstand Voltage: 3200V AC
• Mechanical Life: >10,000 mating cycles
• Safety Standards: CE, RoHS
• Color: Black

Recommendations

For optimal performance, ensure that both the charging station and vehicle are compatible with the adapter's specifications. Always inspect the adapter for damage before use and store in a clean, dry environment when not in use.
