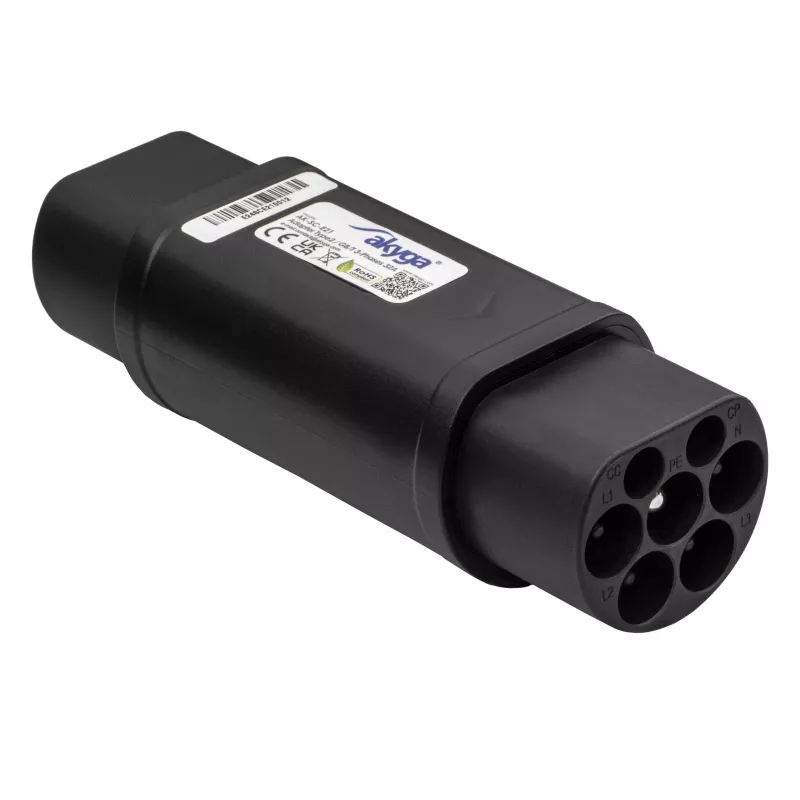

Akyga AK-SC-E21 Adaptador de carga para vehículos eléctricos de Type 2 a GB/T trifásico 32A

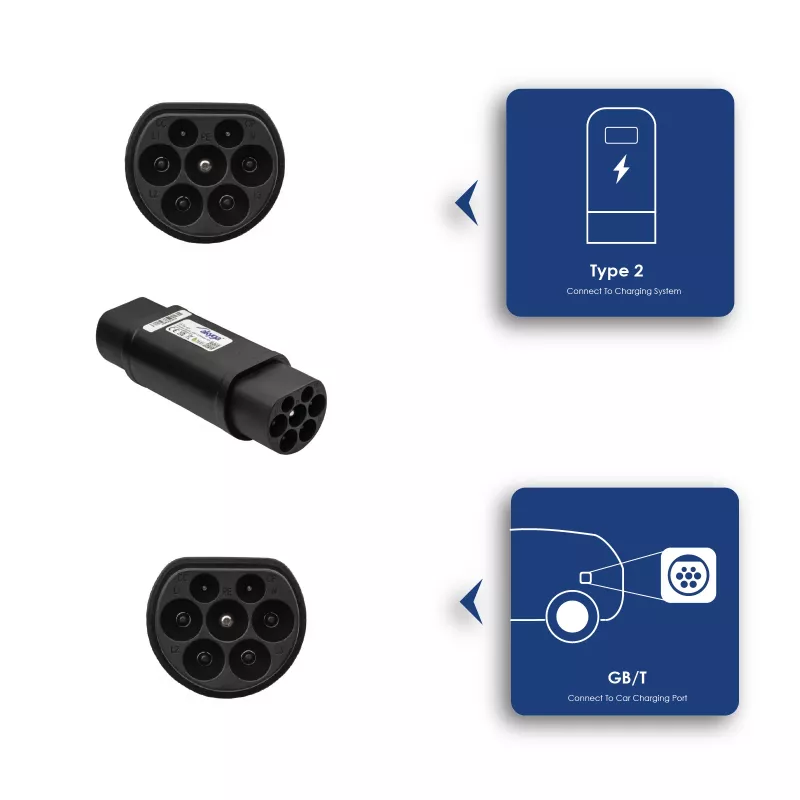

The Akyga AK-SC-E21 is a Type 2 to GB/T adapter designed for charging electric vehicles with a GB/T socket at Type 2 charging stations. It supports three-phase charging with a maximum current of 32 A and a maximum power of 22 kW.

Key features

• Type 2 to GB/T adapter for electric vehicles
• Three-phase charging up to 32 A
• Maximum power: 22 kW
• Silver-plated contacts
• IP55 rated for moisture and dust resistance
• Flame resistance: UL94V-0
• Compact and ergonomic design

Specifications

• Brand: Akyga
• MPN: AK-SC-E21
• Product type: Electric Car Accessory
• Supply voltage: 240-450 V / 50/60 Hz
• Number of phases: 3 phase
• Maximum current: 32 A
• Connector resistance: 0.5 mΩ
• Maximum power: 22 kW
• Flame resistance: UL94V-0
• IP Rating: IP55

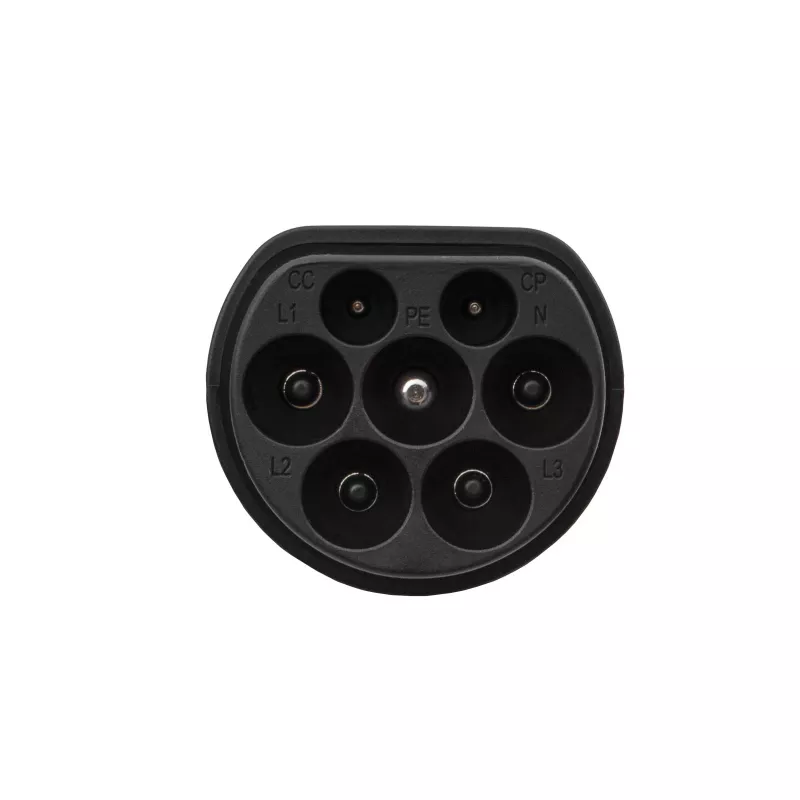

• Cable plug #1: Type 2 (IEC 62196-2) Male Connector
• Cable plug #2: GB/T (20234.2-2015) Male Connector
• Plated plugs: Silver
• Material: TPE
• Product color: Black
• Temperature: -30 / +50 °C
• Product size (L x W x H): 165 x 59 x 52 mm
• Net weight: 324 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5906708750610
