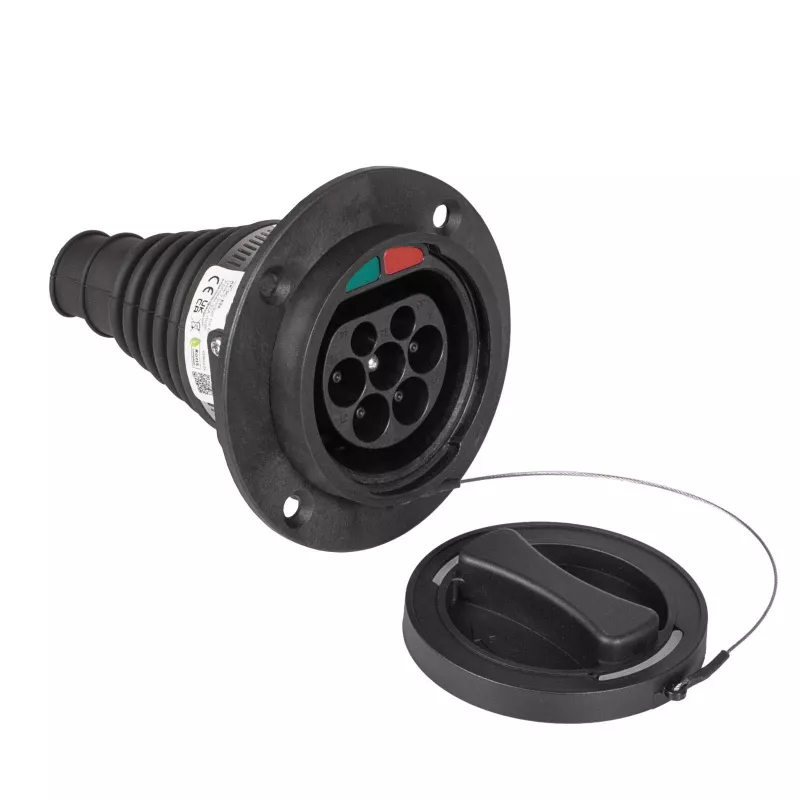

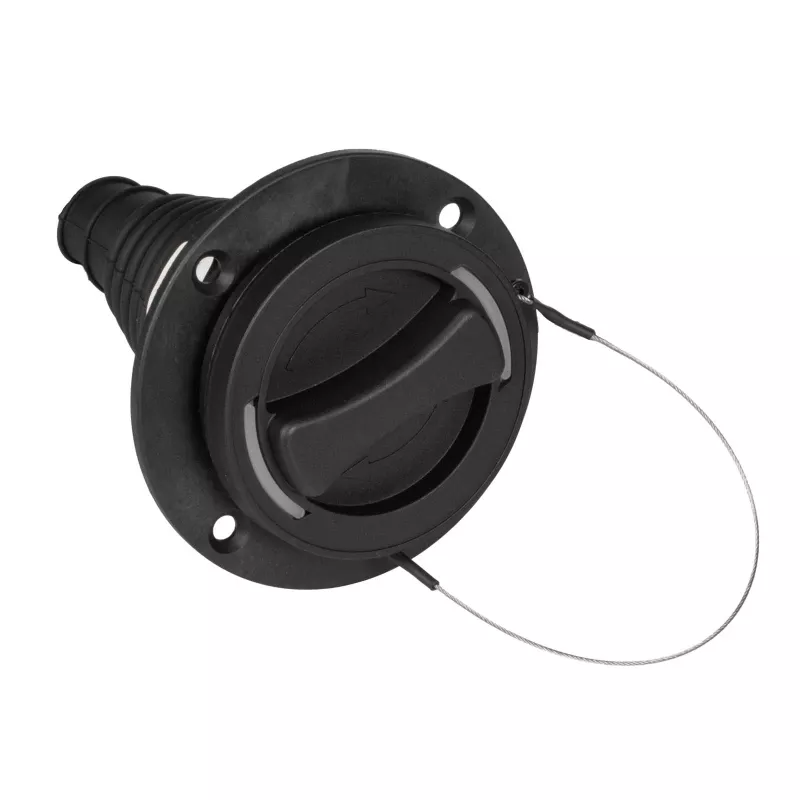

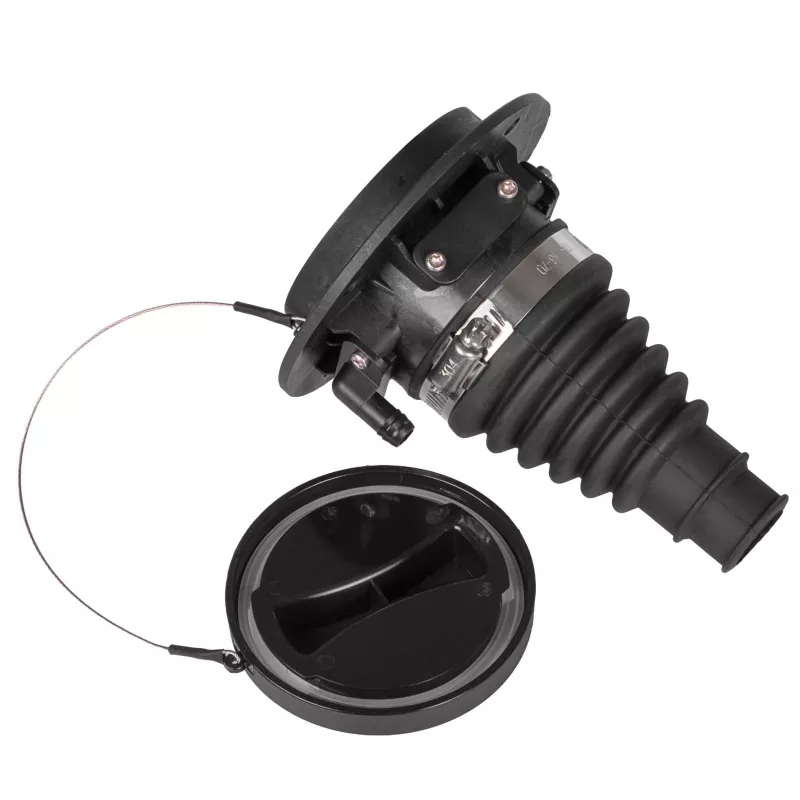

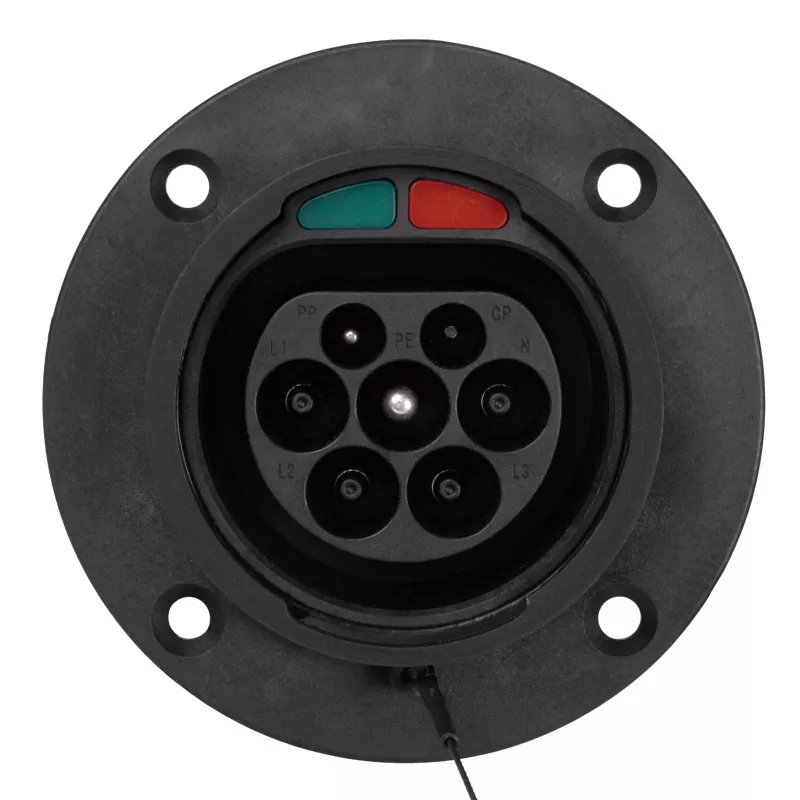

Akyga AK-SC-E26 conector de carga EV tipo 2 (macho), 3 fases, 32 A, IP44, negro

The Akyga AK-SC-E26 is a three-phase Type 2 EV charging connector (male) designed for electric vehicle charging installations. It supports up to 32 A per phase and features an IP44 rating, making it suitable for indoor and outdoor use.

Key features

• Three-phase Type 2 connector (male)
• Maximum current: 32 A per phase
• IP44 protection rating
• Silver-plated plugs
• Mounting holes for secure attachment

Specifications

• Brand: AKYGA
• Model: AK-SC-E26
• Product series: Type 2 EV Charging Connector
• Number of phases: 3
• Maximum current: 32 A
• Output connector: Type 2 (IEC 62196-2) Male
• IP rating: IP44
• Plated plugs: Silver
• Product colour: Black
• Product size (L x W x H): 160 x 120 x 120 mm
• Net weight: 383 g
