Akyga EN2060-20-S Filtro EMI monofásico, 20 A, 120–250 V AC, 50/60 Hz, conexiones roscadas M4

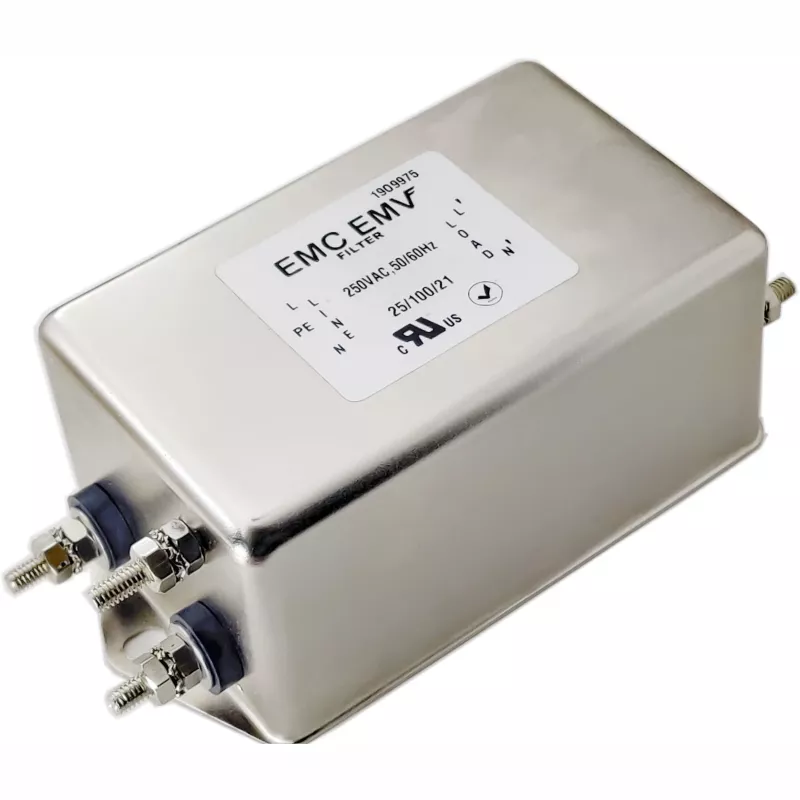

The Akyga EN2060-20-S is a single-phase EMI filter designed to eliminate electromagnetic interference in power systems operating up to 20 A. It features M4 screw connectors for a secure connection and a metal housing for mechanical protection and shielding.

Key features

• Single-phase EMI filter
• Rated current: 20 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: M4 screw connectors
• Metal housing
• Operating temperature: -25 - 100 °C

Specifications

• Brand: AKYGA
• MPN: EN2060-20-S
• Type: Single-phase EMI filter
• Rated current: 20 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: M4 screw connectors
• Material: Metal
• Operating temperature (T-T): -25 - 100 °C
• Width: 57 mm
• Height: 45 mm
• Depth: 124 mm
• Weight: 0.18 kg
• Compliance certificates: CE, RoHS, REACH
