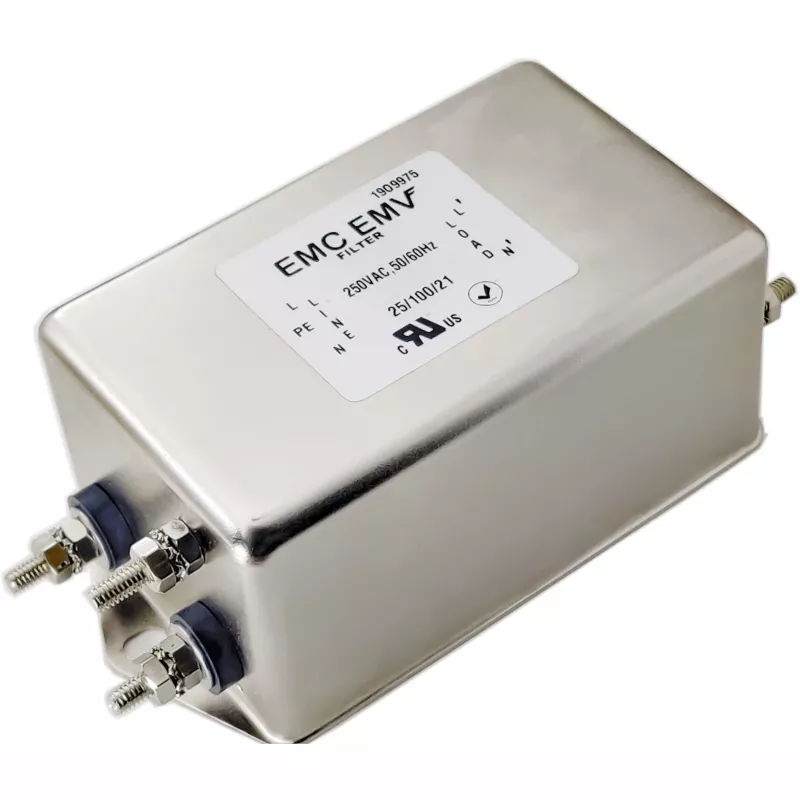

Akyga EN2090-20-S Filtro EMI monofásico, 20 A, 120–250 V AC, 50/60 Hz, conexiones roscadas M4

The Akyga EN2090-20-S is a single-phase EMI filter designed to protect systems operating with loads up to 20 A. It is suitable for industrial applications, large automation installations, server systems and other demanding systems where voltage stability and purity are crucial. The metal housing provides effective shielding against electromagnetic interference and high resistance to harsh environments.

Key features

• Single-phase EMI filter
• Rated current: 20 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• M4 screw connectors
• Metal housing
• Leakage current: 1.00 mA @120 VAC 60 Hz, 1.73 mA @250 VAC 50 Hz
• Operating temperature: -25 - 100 °C
• Compliance certificates: CE, RoHS, REACH

Specifications

• Brand: AKYGA
• MPN: EN2090-20-S
• Type: Single-phase EMI filter
• Rated current: 20 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: M4 screw connectors
• Material: Metal
• Width: 57 mm
• Height: 45 mm
• Depth: 124 mm
• Operating temperature (T-T): -25 - 100 °C
• Compliance certificates: CE, RoHS, REACH
