ALANTEC Armario de pared de 19 pulgadas 18U 600x450mm, dos piezas, puerta de cristal individual, negro

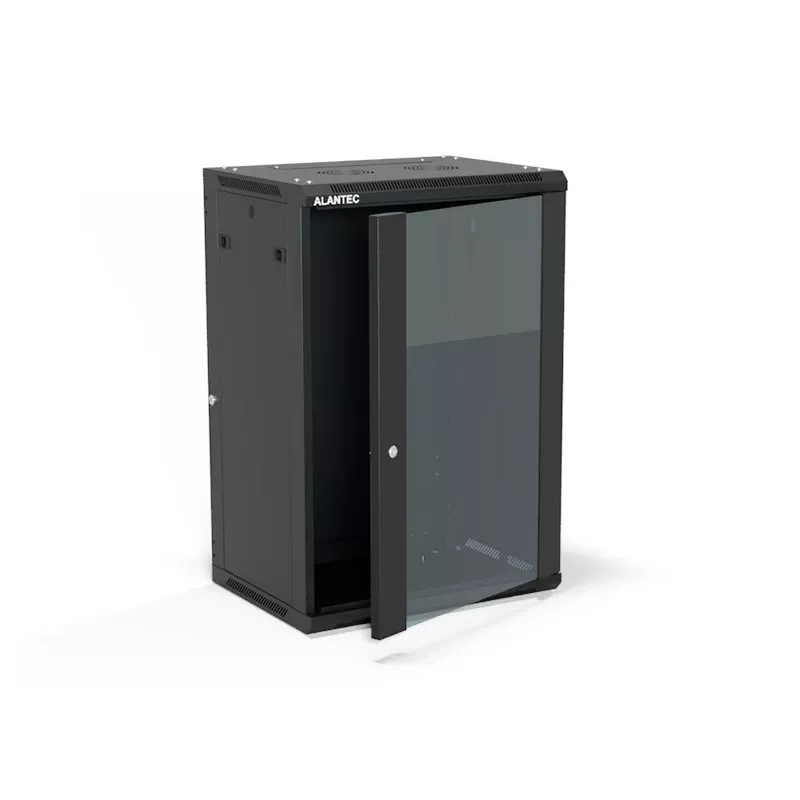

The ALANTEC SW-18U-600-450-01-CA is a professional 19-inch wall-mount cabinet designed for secure and organized installation of network equipment. With 18U of rack space, it accommodates standard 19-inch devices such as switches, patch panels, and servers. The cabinet features a two-section construction with a hinged rear frame for easy access, a single-leaf tempered glass front door, and fully removable, lockable side panels. The rear panel is also removable for cable management. Equipped with four adjustable 19-inch mounting profiles, it offers flexibility for various equipment depths. Made from SPCC cold rolled steel with a black RAL 9005 finish, it provides a static load capacity of 60 kg. Cable entry points at top and bottom with brush strips ensure neat cable routing. Ideal for data centers, server rooms, and commercial installations where space is limited.

Advantages

Secure and durable construction with lockable front door and side panels. Easy access for installation and maintenance thanks to removable panels and hinged rear frame. Versatile mounting options with adjustable depth profiles. Efficient cable management with top/bottom cable entries.

Suitable for

• Network cabinets for switches, routers, and patch panels
• Server rooms and data centers
• Commercial and industrial environments
• Wall-mounted installations to save floor space

Key specifications

• Rack Type: Wall-mounted Cabinet
• Rack Standard: 19-inch
• Rack Units: 18U
• External Dimensions (WxDxH): 600 x 450 x 800 mm
• Construction: Two-Section (Hinged Rear Frame)
• Front Door: Single-leaf Tempered Glass Door with Key Lock
• Side Panels: Removable, Full, Lockable
• Rear Panel: Removable, Full
• Mounting Profiles: 4 x 19-inch (Adjustable Depth)
• Material: SPCC Cold Rolled Steel
• Color: Black (RAL 9005)
• Static Load Capacity: 60 kg
• Cable Entry: Top and Bottom with Brush Strips
• Ventilation: Passive (Perforated Top/Bottom)
• IP Protection Class: IP20
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use cable management accessories to maintain airflow and organization.
