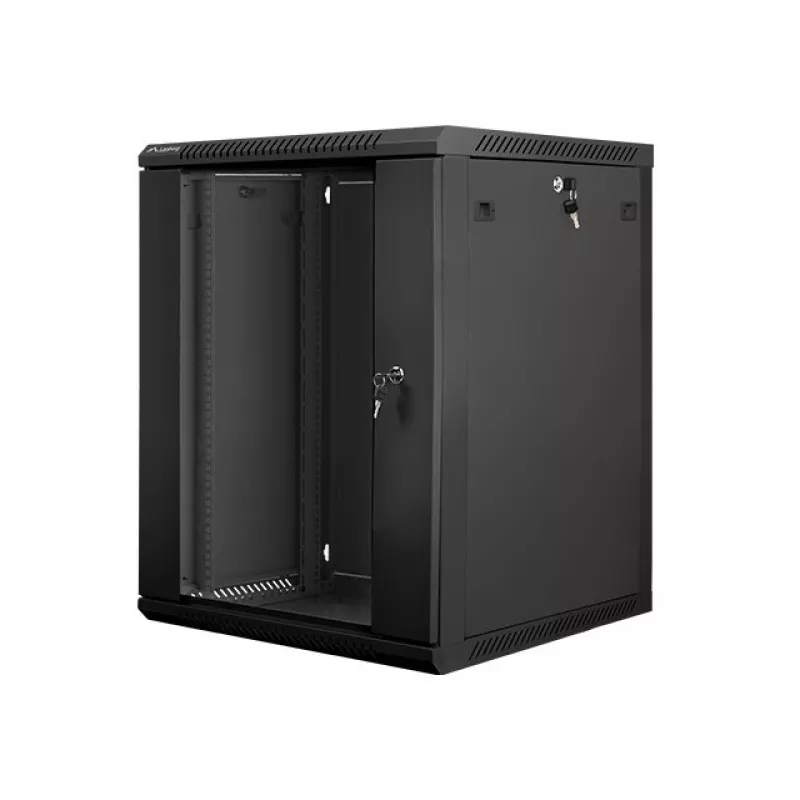

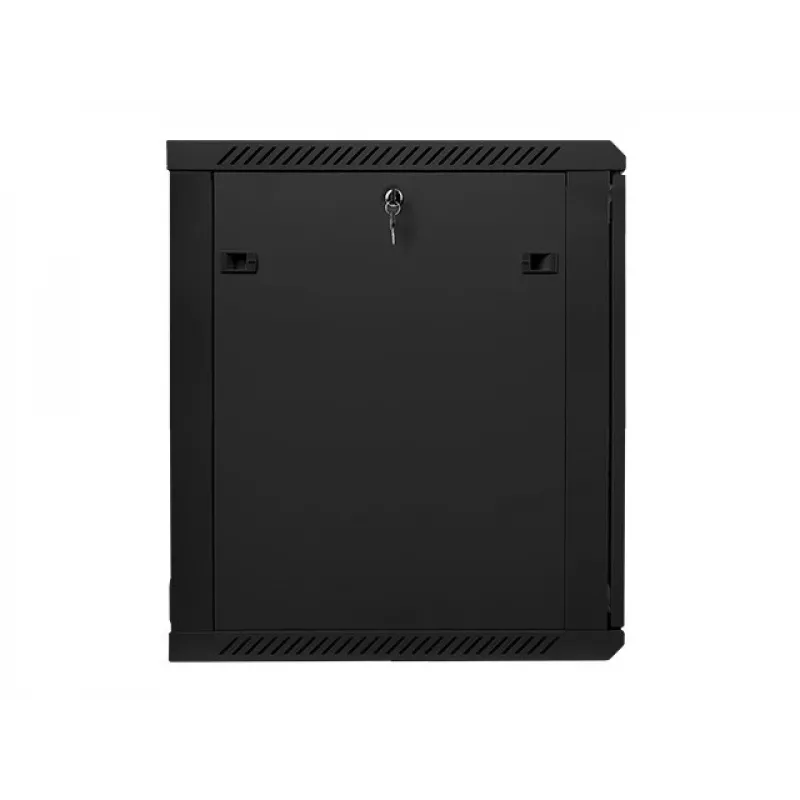

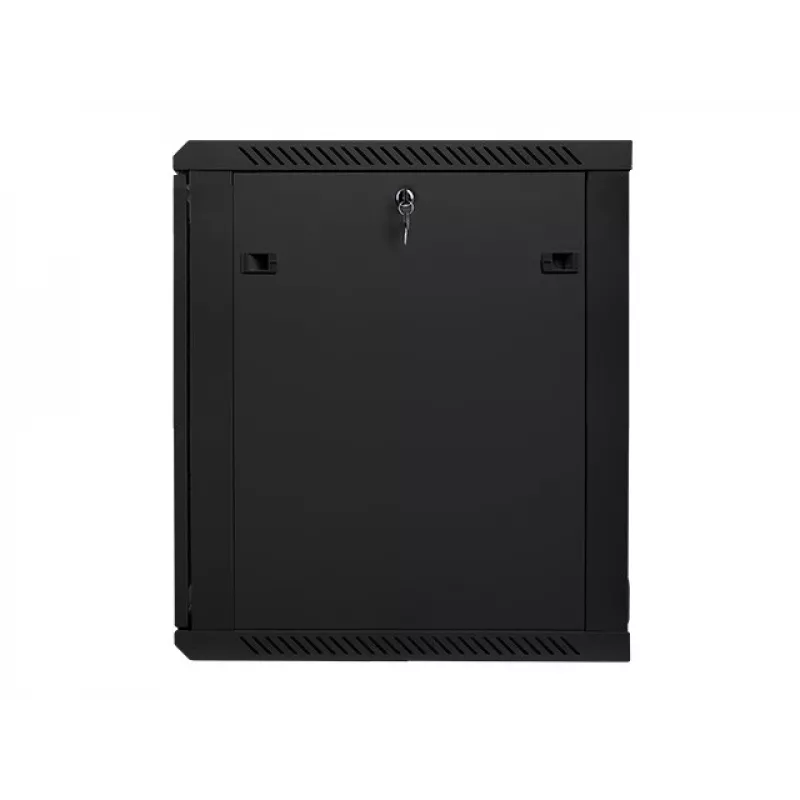

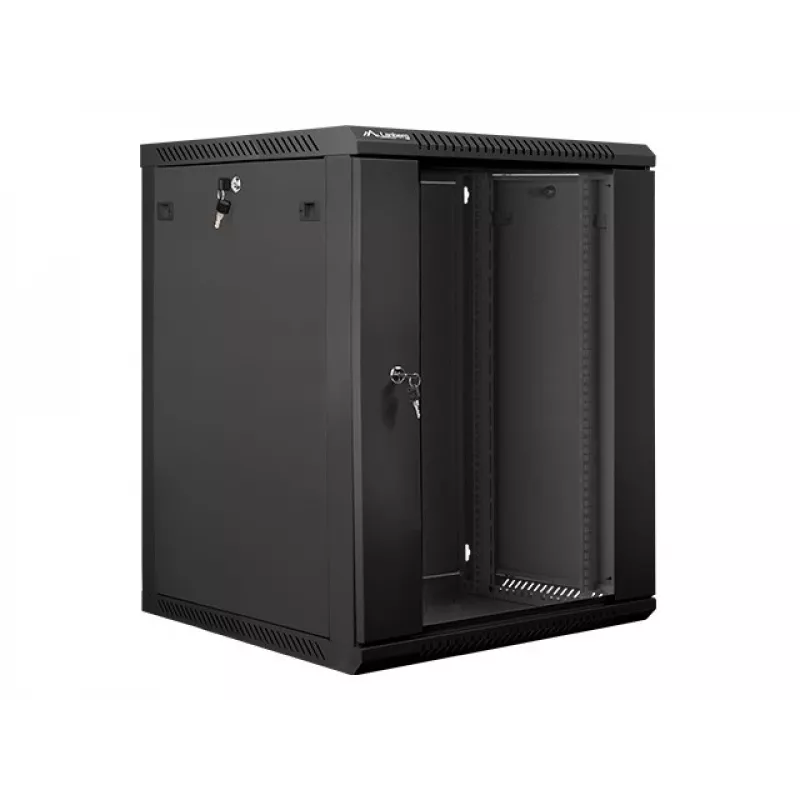

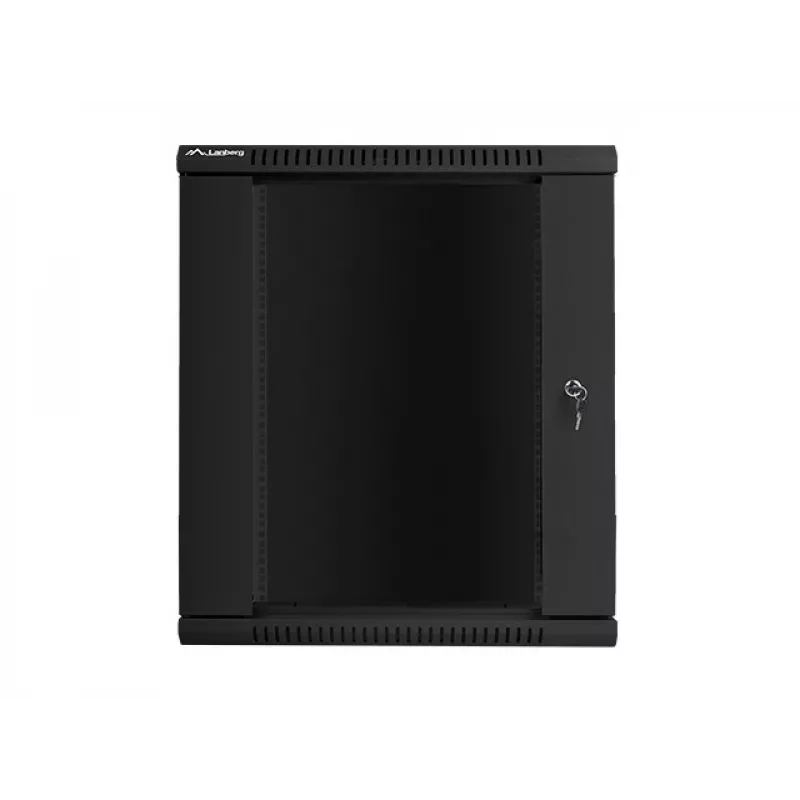

Armario de instalación de pared Lanberg 19'' 15U 600x600mm negro (puerta de cristal)

Managing network equipment in tight spaces often means choosing between accessibility and security. The Lanberg WF01-6615-10B solves this by mounting directly to the wall, freeing floor space while keeping your 19-inch gear organized and protected. Its 15U capacity accommodates switches, patch panels, and servers in a compact 600x600mm footprint, ideal for small offices, retail back rooms, or branch locations.

Who is it for

This cabinet suits IT installers and facility managers who need a secure, space-saving enclosure for network hardware. It's perfect for low-voltage systems like CCTV, access control, and alarm networks, as well as standard data cabling in SMBs and server rooms. The flat-pack design simplifies transport and on-site assembly, even in narrow corridors or stairwells.

Main features

• Wall-mountable 19" rack cabinet with 15U internal capacity
• Tempered glass front door with 180° opening and key lock for visibility and security
• Removable, lockable side panels for easy access during installation and maintenance
• Top and bottom cable entry panels with adjustable covers for clean cable routing
• Vented construction and provision for up to two fans to support active cooling
• Made from cold-rolled steel with black RAL 9004 finish for durability
• IP20 protection rating suitable for indoor environments
• Includes mounting rails, cage nuts, grounding set, and all necessary hardware

Specifications

• Rack type: Wall-mount cabinet, single-section
• Rack standard: 19 inch
• Rack units: 15U
• External dimensions (WxDxH): 600 x 600 x 770 mm
• Weight: 26 kg
• Static load capacity: 60 kg
• Material: Cold-rolled steel
• Colour: Black (RAL 9004)
• Front door: Tempered glass, key lock, 180° opening
• Side panels: Removable, lockable
• Back panel: Fixed, removable for wall mounting
• Cable entry: Top and bottom with adjustable panels
• Ventilation: Passive, with two fan mounting positions
• Protection rating: IP20
• Compliance: CE, RoHS

Tips

Plan your cable routing before mounting—use the top entry for incoming feeds and bottom for patching to avoid clutter. For active equipment, install fans in the provided mounts to maintain airflow. The flat-pack design means two people can carry and assemble it easily; follow the included guide for a secure wall installation.
