Alargador de corriente Bachmann 2x Schuko 1x módulo personalizado RAL9010

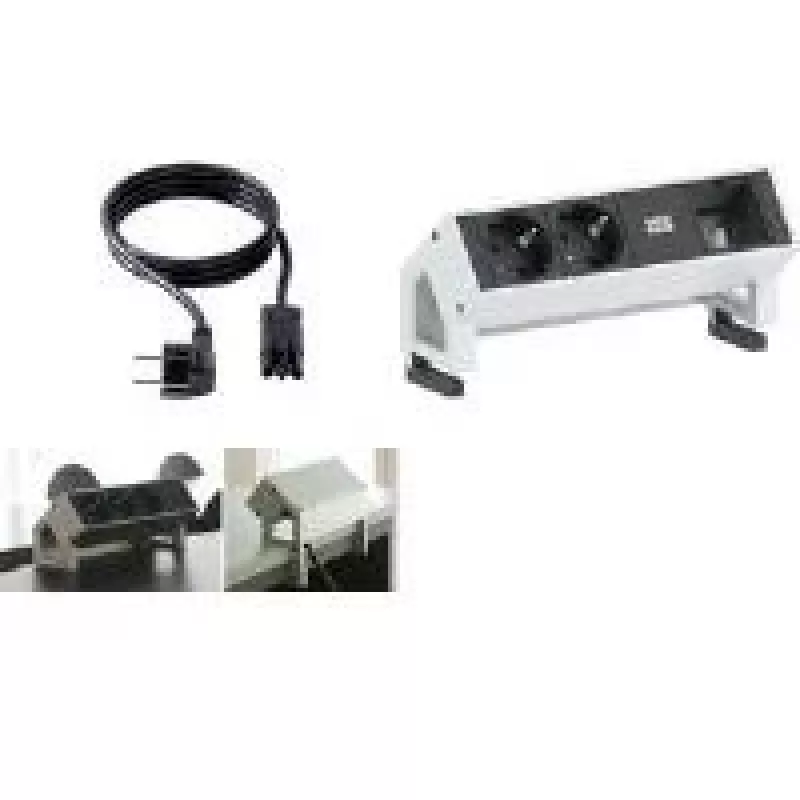

DESK 2 is a modular power strip designed for flexible use in offices, meeting rooms, home offices and desk-sharing environments. The unit is made from aluminium with a RAL9010 painted finish and accommodates two Schuko (Type F) AC outlets plus one custom module. Connections are mounted in standardized module windows and can be exchanged as needed. The power input cable (0.2 m H05VV-F 3G 1.5 mm² with GST18) and an aluminium mounting bracket are included; cables are routed behind the screen and the strip is fastened to the desktop with retaining brackets. Length is approximately 204 mm and the two child-proof earthing sockets are set at a 35° user-focused orientation.

Advantages

The aluminium construction and straightforward design provide durability and a compact appearance suitable for modern workstations. The 45° (35° for the sockets) user-oriented angle and covered wiring toward the desk edge support tidy cable management. Modular, screw-mounted connections allow easy customization or replacement of communication and power modules. The product has received multiple design recognitions, including the Red Dot Design Award 2011 and the iF Product Design Award 2012.

Suitable for

• Office desks and meeting room tables
• Home office workstations
• Desk-sharing and flexible workplace setups
• Environments requiring modular, replaceable connections

Key specifications

• Model: DESK 2 / Bachmann MPN 902.203
• Length: approx. 204 mm
• Material: aluminium profile with painted RAL9010 finish; plastic parts for sockets
• AC outlets: 2 × Schuko (Type F), earthing contact, child-proof, angled 35°
• Additional module: 1 × custom module (exchangeable)
• Power input: 0.2 m H05VV-F 3G 1.5 mm² with GST18
• Mounting: aluminium retaining brackets for desktop attachment; cables routed behind screen
• Colour: Black and White
• EAN: 4016514044115

How to use

Fasten the DESK 2 power strip to the desktop using the supplied aluminium retaining brackets so the wiring can be run behind the screen. Connect the power input cable (GST18) to a suitable supply. Modules and outlet units are screwed into the standardized module windows and can be swapped or upgraded by loosening the fixing screws, replacing the module, and re-securing it. Route connected device cables toward the desk edge to maintain covered wiring and a tidy workstation.

Recommendations

Install on stable desktop edges and ensure the GST18 connection and power rating are compatible with your local electrical standards. Do not exceed the rated current of the installed outlets; for custom modules follow the manufacturer’s instructions for safe installation and replacement.
