Alargador de corriente Bachmann 3x Schuko 1x CAT6 1x USB3.0 1.5m

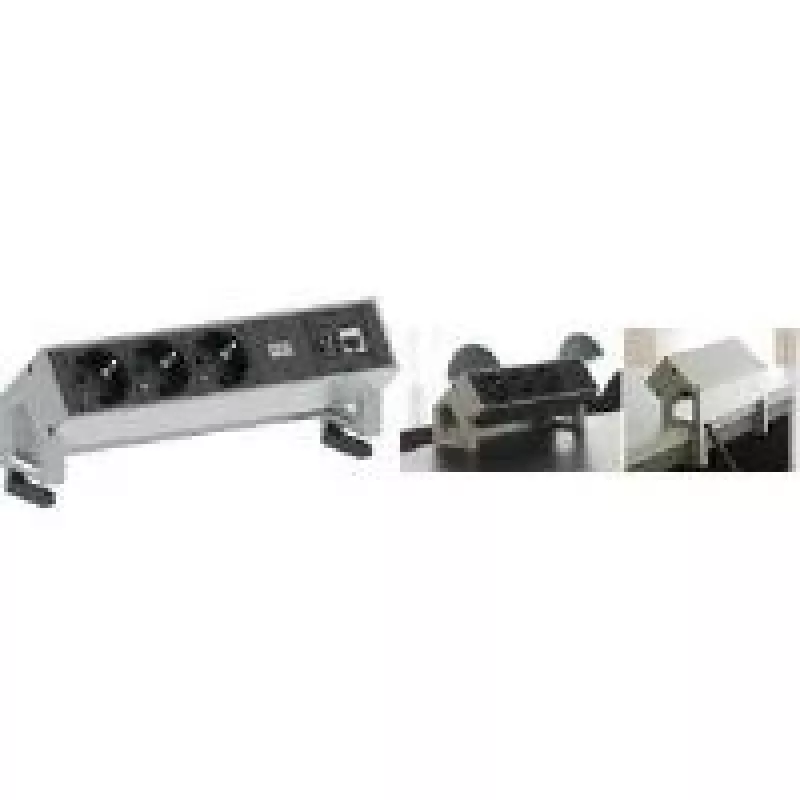

DESK 2 is a modular aluminium power strip designed for flexible use at office workstations, meeting rooms, home offices and desk-sharing environments. The unit features standardised module windows that accept a variety of screwed-in communication and power modules, allowing configurations to be changed as needs evolve. The profile mounts to the desktop with aluminium retaining brackets and routes cables discreetly behind the screen. The product is available in different colours and won the Red Dot Design Award 2011 and the iF Product Design Award 2012; it was also nominated for the German Design Award 2012.

Advantages

The power strip offers a user-focused 45° orientation for easier access, covered cable routing to the desk edge, and a robust aluminium profile with included mounting bracket. Customisable module windows let the unit adapt to future requirements. The supplied configuration includes three child-protected Schuko outlets, a CAT6 coupling, and a USB 3.0 A/A keystone module, with a 1.5 m device supply cable (GST18 with earth contact).

Suitable for

• Office workstations and desk clusters
• Meeting rooms and conference tables
• Home offices and study desks
• Hot-desking and shared workspaces

Key specifications

• Brand: Bachmann; MPN: 902.501; EAN: 4016514050635
• Material: aluminium profile with plastic module inserts
• Length: approx. 239 mm
• Power input cable: 0.2 m H05VV-F 3G 1.5 mm² with GST18 connector
• Device supply cable: 1.5 m GST18 with earth contact
• Outlets: 3 Schuko socket outlets with earthing contact, child-proof, set at 35° (black)
• Data/comm: 1 CAT6 coupling socket
• USB: 1 USB A/A 3.0 keystone module
• Orientation: 45° user-facing

How to use

Secure the aluminium profile to the desk edge using the supplied aluminium retaining brackets and route the device supply cable behind the screen so it reaches the mains inlet. Screw required communication or power modules into the standardised module windows according to your configuration. Connect the GST18 mains connector to a compatible inlet and plug devices into the Schuko outlets, CAT6 port or USB 3.0 module as needed.

Recommendations

Install the DESK 2 on a stable desk edge at a height that maintains the 45° user orientation for easy access. Use certified GST18 inlets and ensure earthing continuity. Do not exceed the rated current of connected modules; consult an electrician for custom installations or if the power strip will feed high-power equipment.
