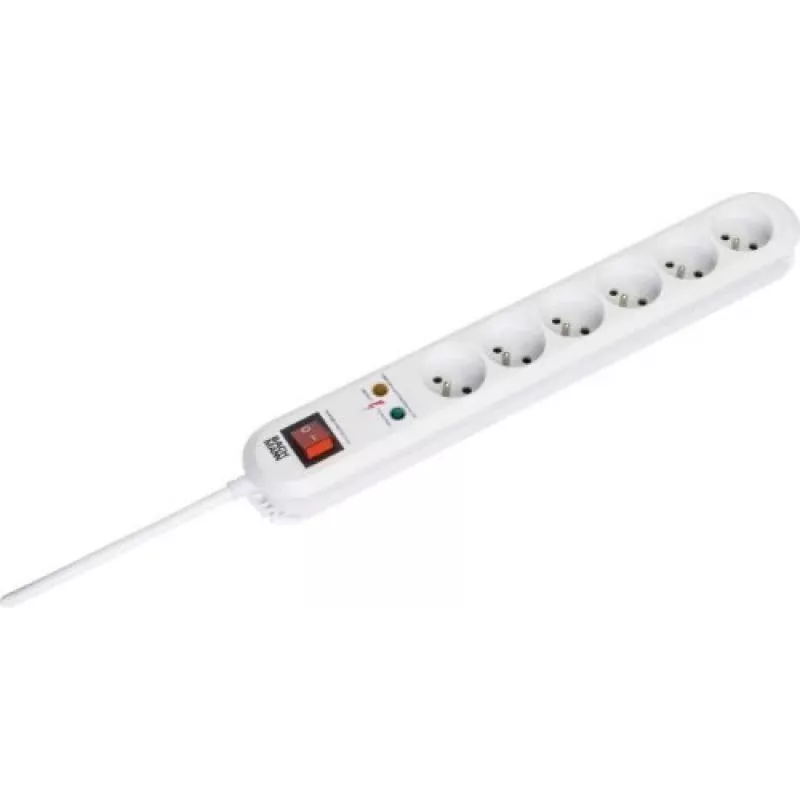

Alargador de corriente Bachmann SMARTLINE 3m 6 salidas AC interior blanco

The Bachmann SMARTLINE power extension provides six Type E (French/UTE) shuttered AC outlets and a 3.0 m rewireable supply cable with screw connection for indoor use. It supports a maximum input power of 3600 W at 16 A and includes integrated overvoltage protection consisting of two varistors, a nominal discharge current of 6.5 kA, a temperature fuse and a visual failure indicator. The unit is finished in white and measures 340 mm x 56 mm x 41 mm.

Advantages

This power extension offers six shuttered Type E sockets for safe connection of multiple devices, a long 3.0 m cable for flexible placement and a rewireable, screwed multi-use connection for installation or replacement. Built-in surge protection with varistors, a temperature fuse and a visual fail indicator provides enhanced protection against transient overvoltages while the 16 A rating and 3600 W maximum power support high-power appliances within its rated limits.

Suitable for

• Indoor power distribution for home or office equipment
• Connecting multiple computers, monitors and peripherals
• Powering printers, chargers and other small to medium electrical appliances

Key specifications

• Cable length: 3.0 m
• AC outlets quantity: 6
• AC outlet type: Type E (French / UTE), shuttered
• Maximum input power: 3600 W
• Current rating: 16 A
• Overvoltage protection: 2 varistors, nominal discharge current 6.5 kA, temperature fuse, visual fail indicator
• Dimensions: 340 mm x 56 mm x 41 mm
• Colour: White

How to use

Position the extension unit on a flat surface or mount as appropriate, route the 3.0 m supply cable to a suitable mains outlet and connect using the screwed, rewireable multi-use termination. Plug devices into the shuttered Type E sockets. Monitor the visual fail indicator to verify the overvoltage protection is operational; if the indicator shows a fault, stop using the unit and replace or service it according to the manufacturer instructions.

Recommendations

Do not exceed the rated current of 16 A or the maximum input power of 3600 W. Use the unit indoors and avoid exposure to moisture. For protection to remain effective, have the surge protection inspected or replaced by qualified personnel if the visual indicator signals a failure.
