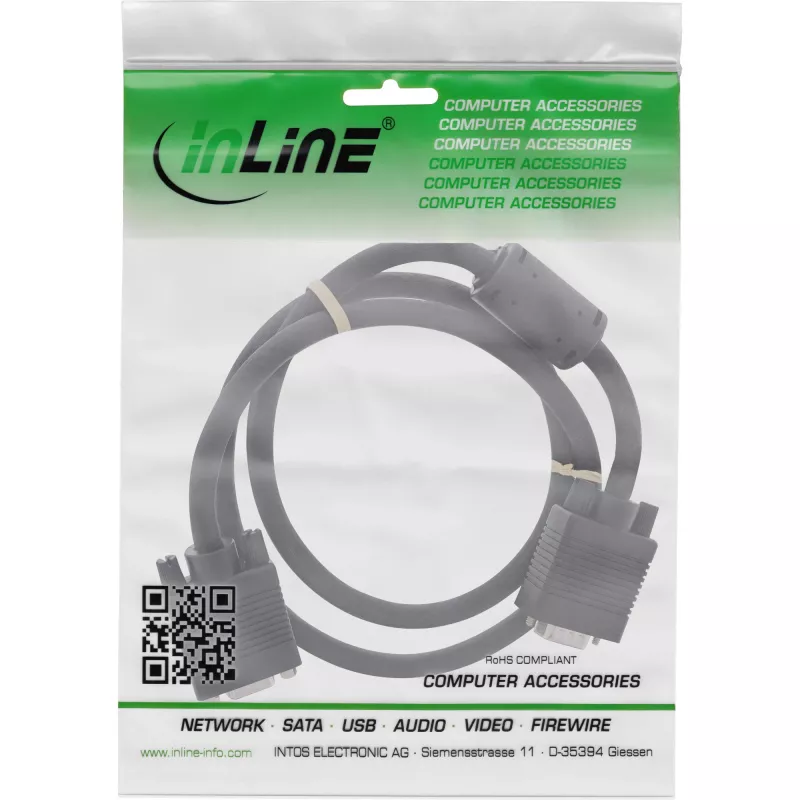

Alargador S-VGA InLine 15HD macho/hembra negro, 1 m

Reliable VGA extension:1:1 interconnected cable with HD15 plug to HD15 socket for clear signal transmission.
High-quality signal quality:Three coaxial cables (RGB) and seven data cores ensure stable image transmission.
Effective protection against interference:Overall and individual shielding and ferrite core reduce electromagnetic interference.
Easy installation:Color-coded die-cast connectors in accordance with the PC99 standard support error-free cabling.
Rugged workmanship:The robust connector design and precise pin assignment enable long-lasting use.

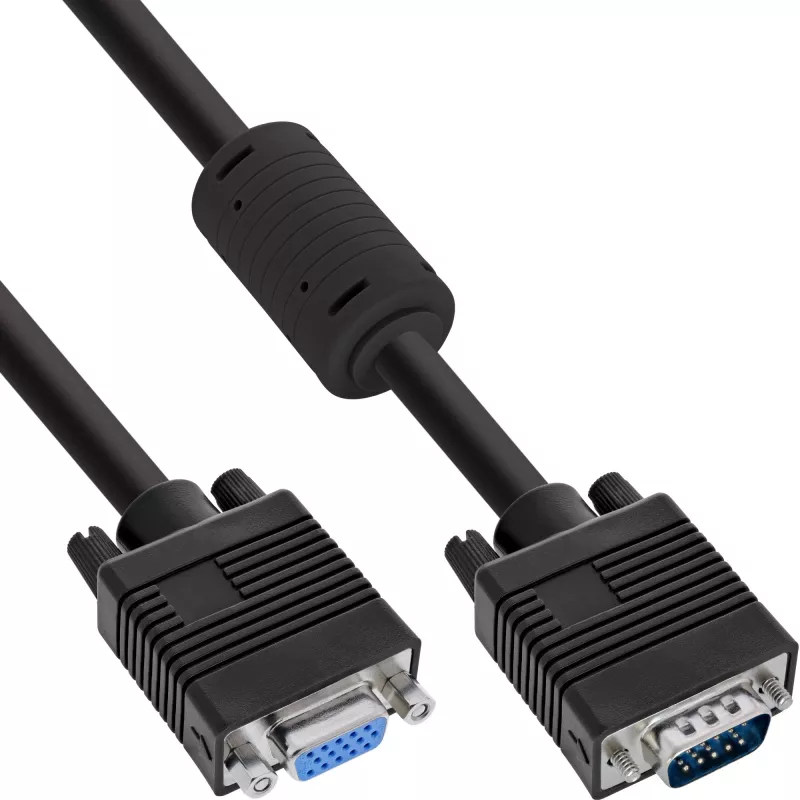

The InLine® S-VGA extension with HD15 plug to HD15 socket is a professional solution for extending analog image signals between monitors, projectors and computers. It provides a reliable connection for devices with a VGA connection, especially in presentation environments, educational institutions and office installations.
The cable has three single-shielded coaxial lines for RGB signal transmission and seven additional data lines. Thanks to the double shielding - consisting of overall and individual shielding - and the integrated ferrite core, the signal is effectively protected against electromagnetic interference.
The 1:1 pin assignment without PIN 9 ensures standard-compliant and stable transmission. The blue coloring of the die-cast connectors complies with the PC99 standard and makes it easier to correctly identify the connection ports. The robust design ensures high mechanical resilience even with frequent use.

Plug type: HD15 plug to HD15 socket
Pin assignment: 1:1 (without PIN 9)
Shielding: Overall and individual shielding
Cable construction: 3x coax (RGB) + 7x data cores
Special feature: ferrite core, PC99 color coding
Color: black

InLine S-VGA Extension Cable 15HD male / female black 1m. Cable length: 1 m, Connector 1: VGA (D-Sub), Connector 2: VGA (D-Sub). Weight: 151 g, Package volume: 1300 cm³. Package width: 175 mm, Package depth: 225 mm, Package height: 33 mm

How to use

Insert the male 15-pin VGA connector into the VGA output of your computer or video source and secure the screws. Connect the female end to the VGA cable from the monitor or projector, tightening the captive screws for a reliable mechanical and electrical connection. Ensure both devices are powered off when connecting or disconnecting to avoid signal disturbances.

Recommendations

For best signal quality keep cable length minimal and avoid routing the VGA cable alongside high-power electrical lines. Use this extension for standard-definition analog VGA signals; for higher resolutions or longer runs consider active extenders or digital alternatives.
