Alicate de corte Cimco 10 0802 resistente a impactos PU plástico Acero 120 mm

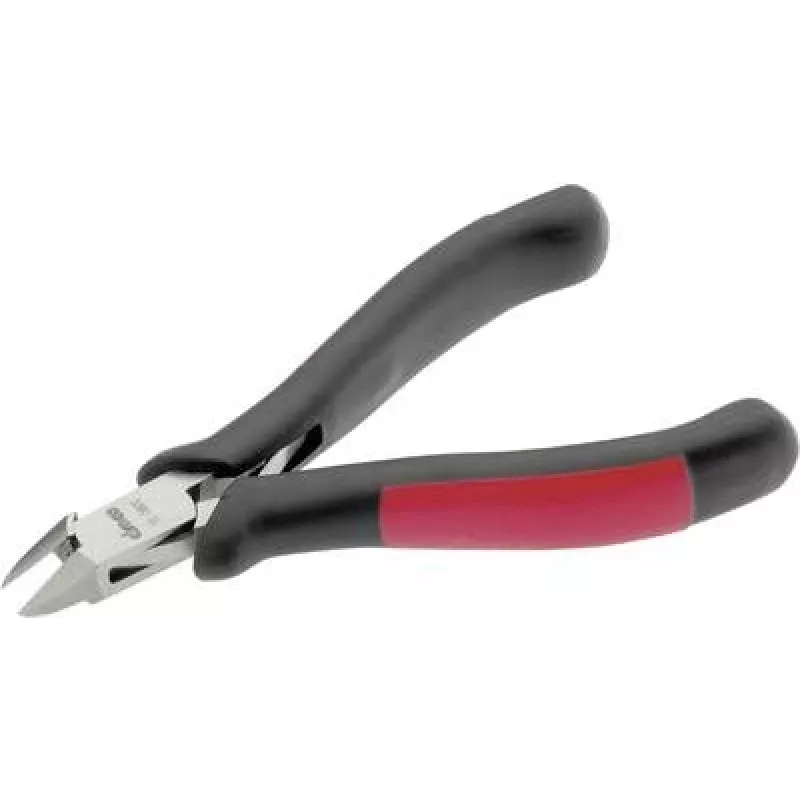

Diagonal pliers Cimco 10 0802 Shock resistant PU plastic Steel 120 mm are precision electronic pliers with a box-joint, drop-forged design. Made from high-alloy special steel with finely ground surfaces and ergonomically shaped two-component handle sleeves, these 120 mm diagonal pliers combine durable construction with precise cutting performance. The pliers feature double leaf springs for easy self-opening and are available on request with ESD protection or 1000 V insulation for electrical safety.

Advantages

The Cimco 10 0802 offers high cutting performance thanks to precisely closing, induction-hardened blades (approx. 64 HRC) suitable for all types of wire, including piano wire. A virtually clearance-free box joint ensures smooth, uniform opening and closing across the entire functional area. Special conical gripping surfaces and uniform serration provide reliable gripping of common workpieces. The product is produced in Germany using robot-supported processes and comes with a 10-year durability guarantee on Diamant-Plus pliers where material or processing defects are proven.

Suitable for

• Precision cutting of electrical and soft wires
• Work with piano wire and other hardened wires
• Electrical installation tasks (when using 1000 V insulated version)
• General DIY and trades use requiring compact, shock-resistant pliers

Key specifications

• Type: Diagonal pliers, box-joint, drop-forged
• Model: Cimco 10 0802 (MPN 100802, EAN 4021103008027)
• Length: 120 mm
• Material: Special high-alloy steel; handle sleeves: two-component PU plastic
• Cutting edge hardness: Induction hardened, approx. 64 HRC
• Features: Double leaf springs (self-opening), finely ground surfaces, conical gripping surfaces
• Options: ESD or 1000 V protective insulation on request (Diamant-Plus range complies with IEC 60900:2004 and VDE 0682/Part 201)
• Guarantee: 10-year durability guarantee for Diamant-Plus pliers (terms apply)

How to use

Hold the Cimco diagonal pliers by the ergonomic two-component handle sleeves and position the cutting edges around the wire or material to be cut. Apply a steady, controlled pressure until the cutting edges close fully. For gripping tasks, use the conical serrated areas to secure the workpiece. If working on live circuits, ensure you have the 1000 V insulated version and follow all applicable electrical safety procedures. After use, clean any debris from the joint and cutting faces and store the pliers in a dry place.

Recommendations

Use the induction-hardened cutting edges only for the intended types of wire to preserve blade life. Request the 1000 V insulated version for electrical work and follow VDE/IEC safety guidance. Replace pliers that show significant wear or damaged insulation to maintain safety and performance.
