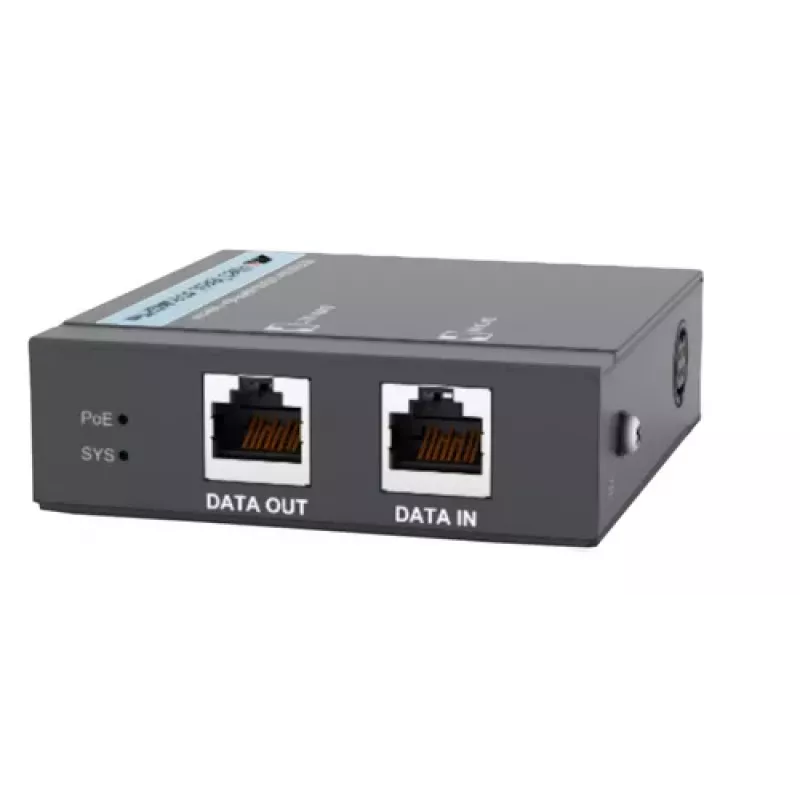

Allied Telesis AT-7101GHTM-50 inyector PoE++ IEEE 802.3bt 60W Multi-Gigabit

The Allied Telesis AT-7101GHTM-50 is a high-performance Power over Ethernet (PoE) injector designed to deliver up to 60W of power over 4-pair cabling, compliant with the IEEE 802.3bt PoE++ standard. It supports multi-gigabit data rates including 10/100/1000 Mbps, 2.5G, and 5G, making it ideal for powering advanced network devices such as Wi-Fi 6/6E access points, PTZ cameras, and IoT gateways.

Advantages

This PoE injector provides a reliable and cost-effective solution for deploying high-power devices without the need for separate power outlets. Its compact metal housing supports desktop or wall-mount installation, and it includes protection features against over-current, over-voltage, and short-circuits. The unit is fully compliant with FCC and CE standards, ensuring safe operation in professional environments.

Suitable for

• Powering IEEE 802.3bt PoE++ devices requiring up to 60W
• Multi-gigabit network upgrades (2.5G/5G) for high-bandwidth applications
• Enterprise, industrial, and commercial installations

Key specifications

• PoE Standard: IEEE 802.3bt PoE++
• PoE Power Output: 60W (Max)
• Data Rates: 10/100/1000 Mbps, 2.5G, 5G Multi-Gigabit
• Input: 100-240V AC, 50/60Hz
• Output: 56V DC
• Ports: 1 x RJ-45 Data In, 1 x RJ-45 PoE Out
• LED Indicators: Power, PoE Status
• Mounting: Desktop, Wall-mount
• Operating Temperature: 0 – 40 °C (32 – 104 °F)
• Housing: Metal
• Max Cable Distance: 100 meters (328 ft)
• Jumbo Frame Support: 10KB
• Power Consumption: 65W (Max)
• Compliance: FCC Part 15 Class A, CE, UL, CB

Recommendations

For optimal performance, use with Category 6a or higher cabling to support 5G speeds. This injector is an excellent choice for powering the latest multi-gigabit access points and edge devices.
