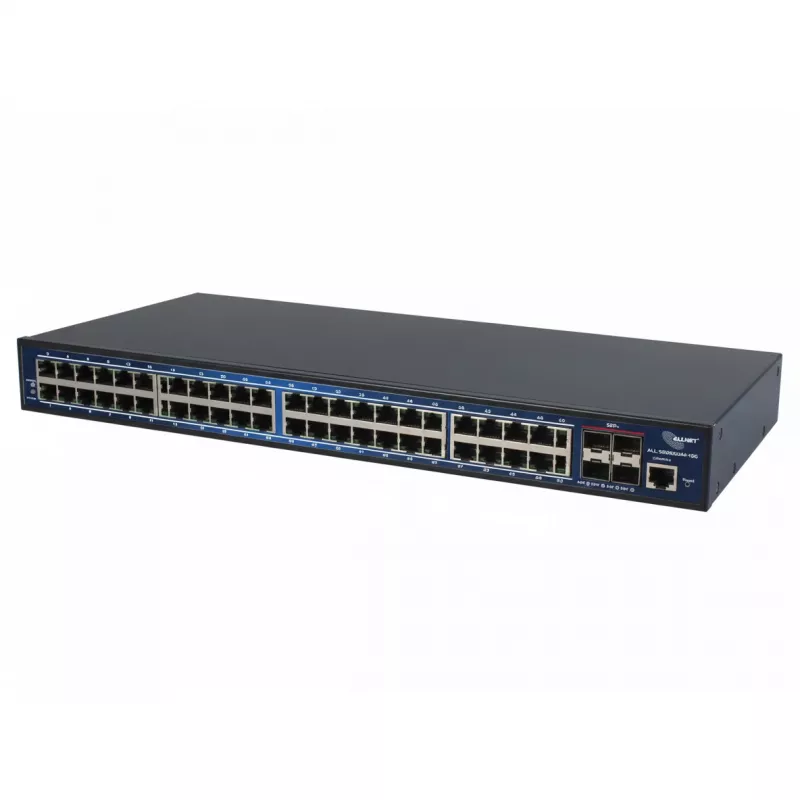

ALLNET 48+4P ALL-SG8652M-10G Switch Ethernet 48 x Gigabit + 4 x puertos 10G SFP+, montaje en rack

ALLNET 48+4P ALL-SG8652M-10G is a rack-mount Ethernet switch offering 48 Gigabit RJ45 access ports and 4 SFP+ 10G uplink ports. Implementing Layer 2 and basic Layer 3 switching functions, it is intended for environments that require high port density combined with 10G aggregation or server access. The device supports standard switching features needed for enterprise networks, edge of data centers and office distribution where reliable wired connectivity and 10G uplinks are required.

Advantages

The ALLNET ALL-SG8652M-10G combines a large number of Gigabit ports with dedicated 10G SFP+ uplinks in a 19-inch rack form factor, simplifying cabling and aggregation. Its Layer 2/Layer 3 capabilities enable VLAN segmentation, switching and basic routing between segments, while the SFP+ ports provide higher-speed links for uplinks to core switches or servers. The modular SFP+ uplink approach allows use of compatible fiber or direct-attach modules to match infrastructure needs.

Suitable for

• Enterprise access layer with many wired endpoints
• Office floor distribution requiring centralized 10G uplinks
• Edge switch in small data center or server aggregation
• Network upgrades where port density and 10G connectivity are needed

Key specifications

• Port count: 48 x Gigabit RJ45 access ports
• Uplink ports: 4 x 10G SFP+ ports
• Switching functionality: Layer 2 features with Layer 3 basic routing support
• Form factor: Rack-mount, 19-inch compatible
• Use case: Designed for aggregation, access and server connectivity

How to use

Install the switch in a standard 19-inch rack and connect power and grounding according to site requirements. Configure access ports, VLANs and uplink interfaces using the device management interface or CLI following network design. Populate the SFP+ slots with appropriate fiber transceivers or direct-attach cables to connect to core switches or servers at 10 Gbit/s. Monitor port status and traffic and apply access control, QoS and routing settings as required by the network topology.

Recommendations

Place the switch in a properly ventilated rack space, use compatible SFP+ transceivers for the intended fiber type or DACs for short-distance 10G connections, and separate management and data VLANs where security and traffic isolation are needed.
