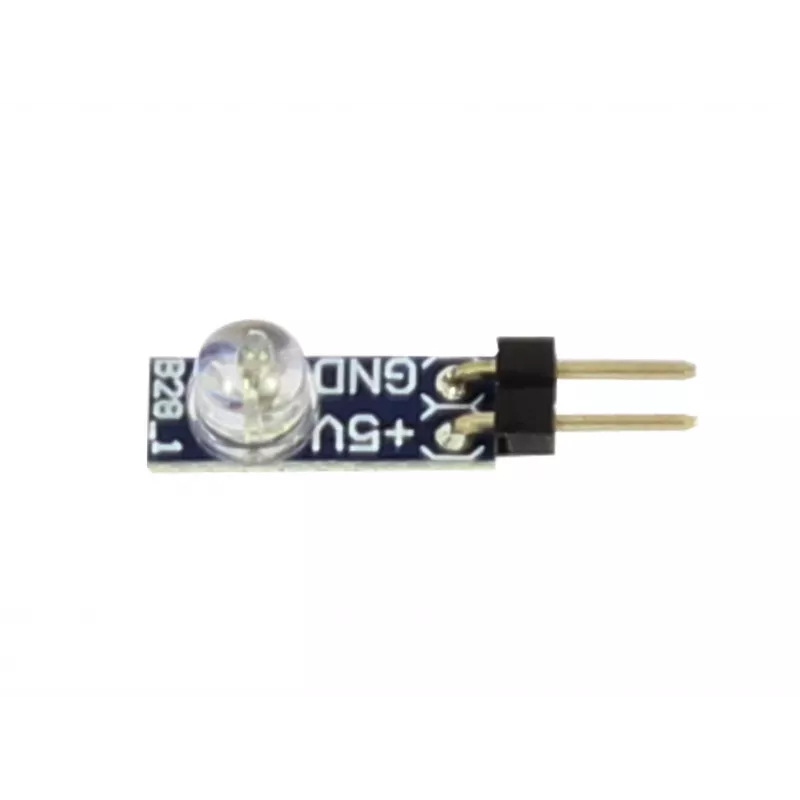

ALLNET 4duino Módulo LED flash – rojo, Digital I/O, 3,3-5V, compatible con breadboard 4duino_B28

ALLNET 4duino Módulo LED flash – rojo, Digital I/O, 3,3-5V, compatible con breadboard 4duino_B28
ALLNET 4duino Módulo LED flash – rojo, Digital I/O, 3,3-5V, compatible con breadboard 4duino_B28
19,24 €
PDF
PDF

Envíos y devoluciones

Entrega estimada jueves, 10 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Flash LED module for visual indication and signaling in DIY electronics, compatible with Arduino, 4duino, Raspberry Pi, and other microcontrollers. Provides a simple controllable red light output via a digital HIGH/LOW signal.

Advantages

Built-in resistor allows direct connection to digital I/O pins without additional components. 3-pin header with standard 2.54mm pitch fits breadboards and prototyping boards. Operates from 3.3V to 5V DC, making it suitable for both 3.3V and 5V logic systems.

Suitable for

  • Visual status indication in microcontroller projects
  • Signaling and alerts in DIY electronics
  • Educational experiments with Arduino and Raspberry Pi
  • Prototyping and breadboard circuits

Key specifications

  • Module type: Flash LED Module
  • LED colour: Red
  • Number of LEDs: 1
  • LED type: 5mm through-hole
  • Operating voltage: 3.3V - 5V DC
  • Interface: Digital I/O
  • Control method: Digital HIGH/LOW signal
  • Built-in resistor: Yes
  • Connector type: 3-pin header (male)
  • Pinout: VCC, GND, Signal (S)
  • Compatibility: Arduino, 4duino, Raspberry Pi, microcontrollers
  • Mounting: Breadboard compatible, 2.54mm pitch
  • Max current consumption: 20 mA

Recommendations

Connect the signal pin to any digital output on your microcontroller and toggle it HIGH to turn the LED on, LOW to turn it off. For PWM-capable pins, you can vary brightness.

Especificaciones

Especificaciones
Categoría
Flash LED Module
Color del producto
Red
EAN
4038816153814
Marca
ALLNET
Modelo
4duino_B28
MPN
4duino_B28
Peso
0.01 kg
