ALLNET accesorio de 19" regleta múltiple 9 tomas (CEE7) a conector (CEE7) gris claro Synergy 21

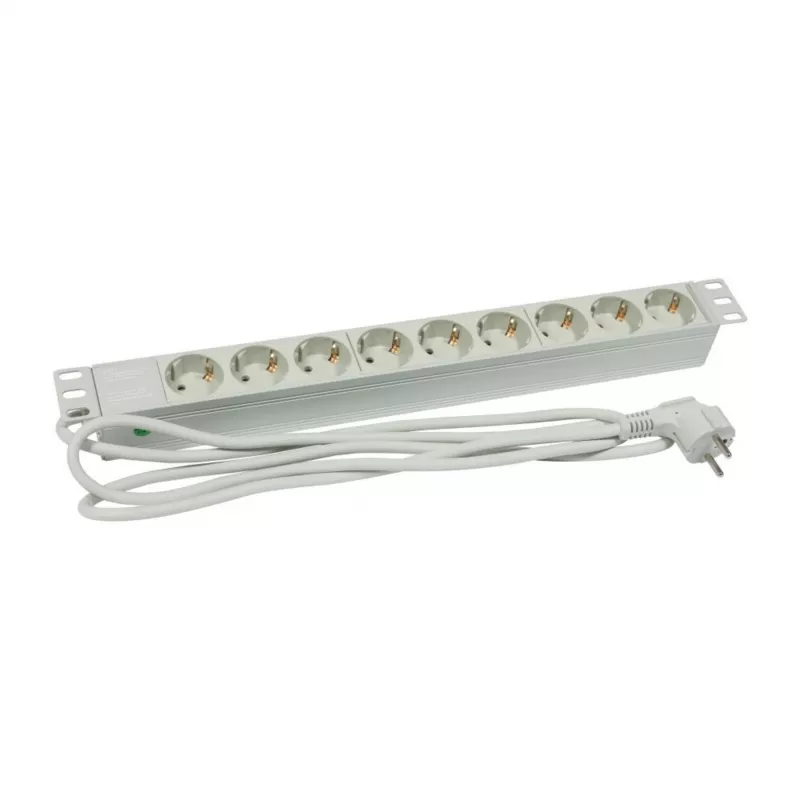

The ALLNET 19" Accessories Multiple Socket Outlet from the Synergy 21 series is a professional power distribution unit designed for 19-inch racks. It features 9 Schuko sockets (CEE 7/3) with a 45° rotated orientation for easy plug access, and a 2-meter power cable with a Schuko plug (CEE 7/7). The housing is made of durable aluminum profile in light grey, and includes an illuminated ON/OFF switch for convenient control. Rated for 230V AC, 16A, and 3680W max power output, it is CE certified and ideal for server rooms, data centers, and network cabinets.

Advantages

Space-saving 1U design with reversible mounting brackets for flexible installation. The 45° rotated sockets allow for better cable management and accommodate bulky power adapters without blocking adjacent outlets. The illuminated switch provides clear power status indication.

Suitable for

• 19-inch racks and cabinets in IT environments
• Powering servers, network switches, and other rack-mounted equipment
• Workshops and industrial applications requiring reliable power distribution

Key specifications

• Number of Sockets: 9
• Socket Type: CEE 7/3 (Schuko)
• Plug Type: CEE 7/7 (Schuko)
• Mounting Type: 19-inch Rack Mount (1U)
• Housing Material: Aluminum Profile
• Color: Light Grey
• Cable Length: 2 m
• Cable Specification: H05VV-F 3G1.5mm²
• Rated Voltage: 230 V AC
• Rated Current: 16 A
• Max Power Output: 3680 W
• Integrated Switch: Yes, illuminated ON/OFF
• Socket Orientation: 45° Rotated
• Frequency: 50/60 Hz
• Cable Entry: Rear
• Mounting Brackets: Reversible, included
• Form Factor: 1U
• Certifications: CE

Recommendations

For optimal performance, ensure the total connected load does not exceed 3680 W. Use with a compatible UPS for critical systems. The reversible mounting brackets allow both front and rear installation in the rack.
