ALLNET ALL-RJ45-MAGNET tarjetas/adaptadores de interfaz RJ-45 blanco 90W

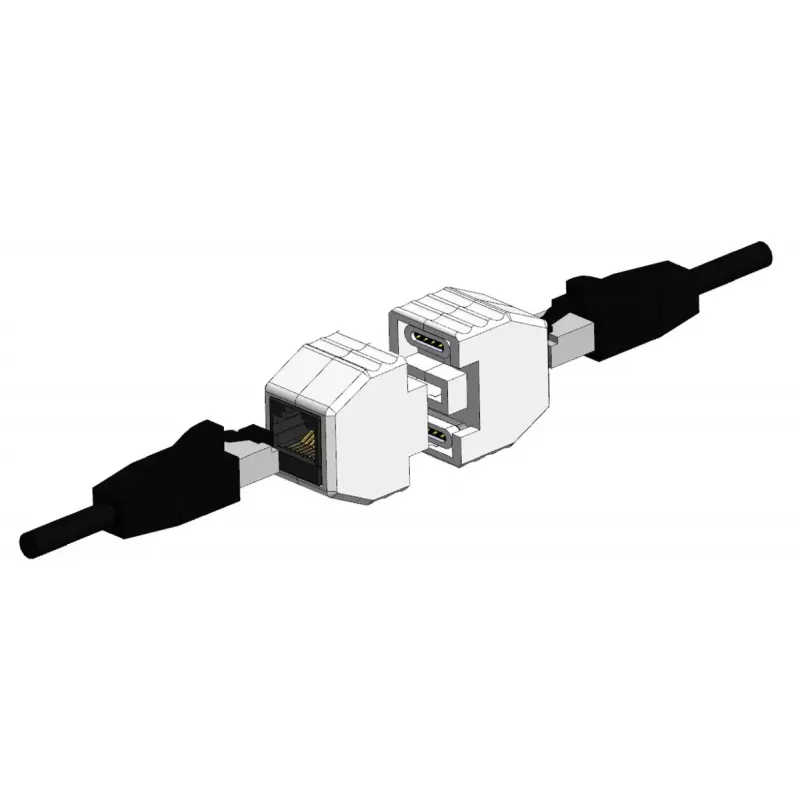

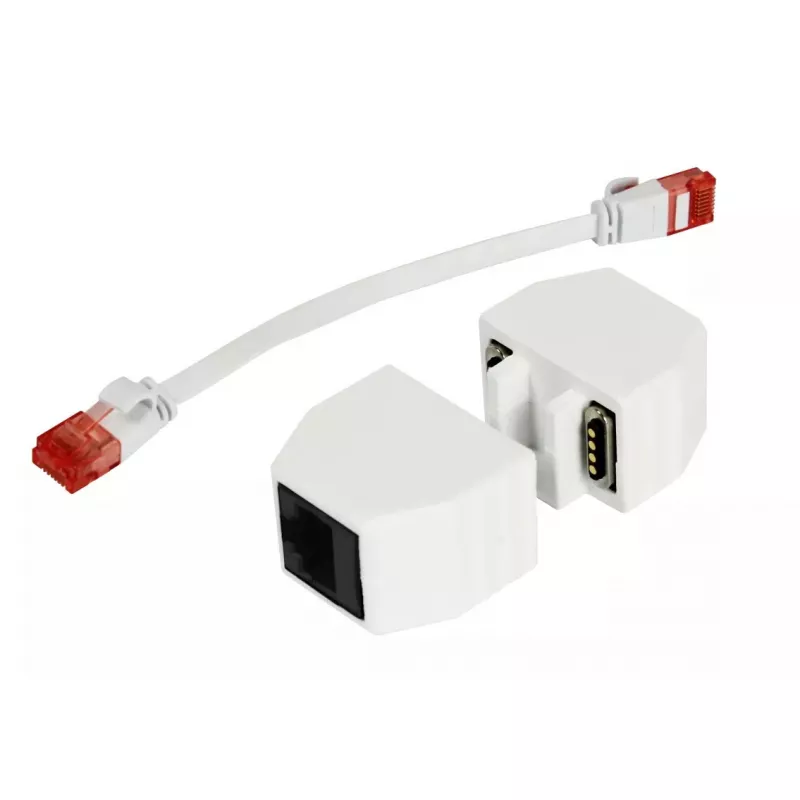

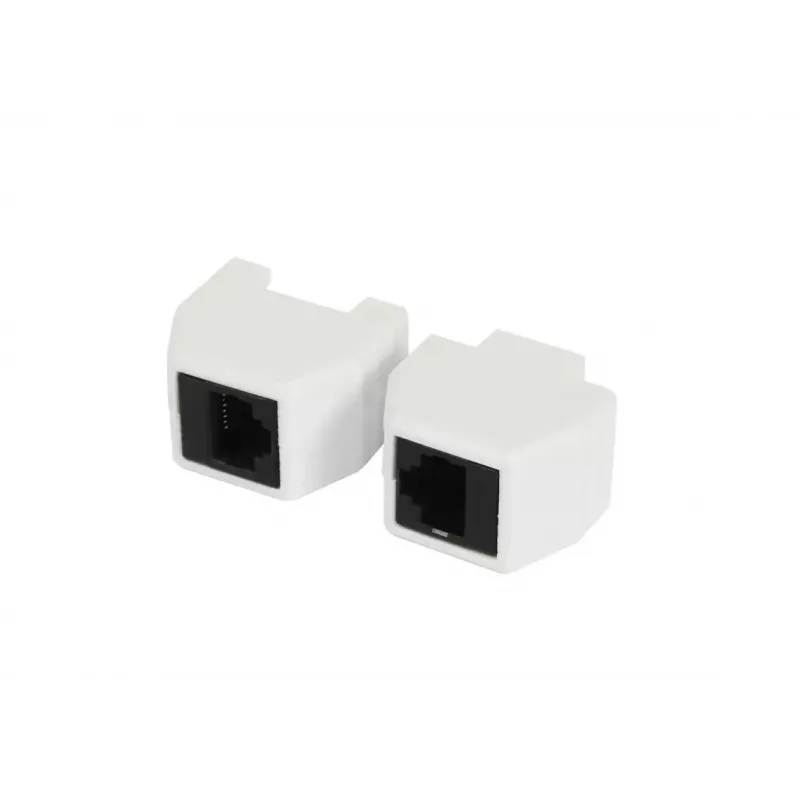

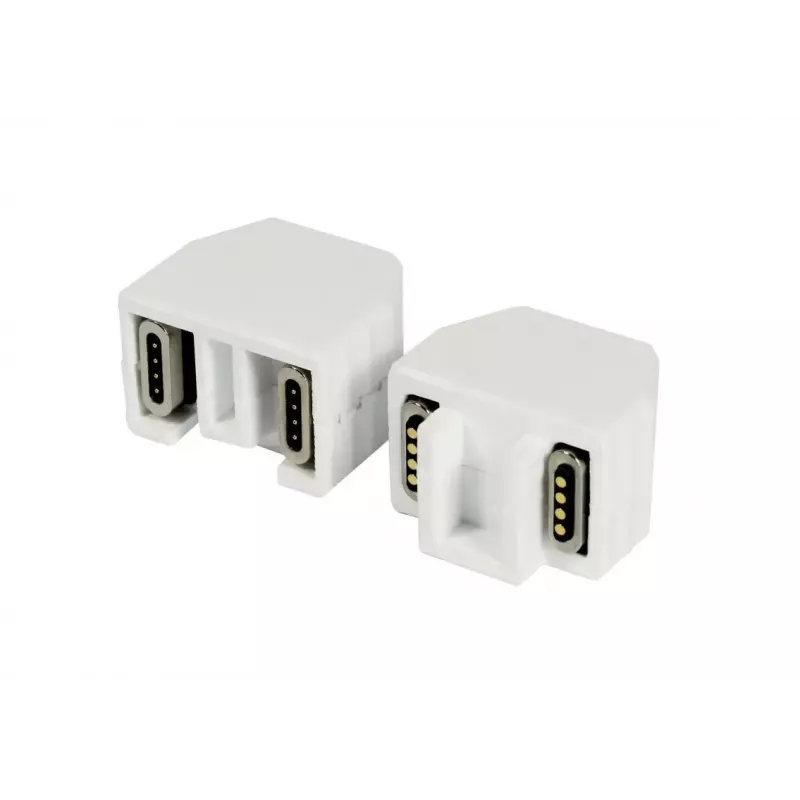

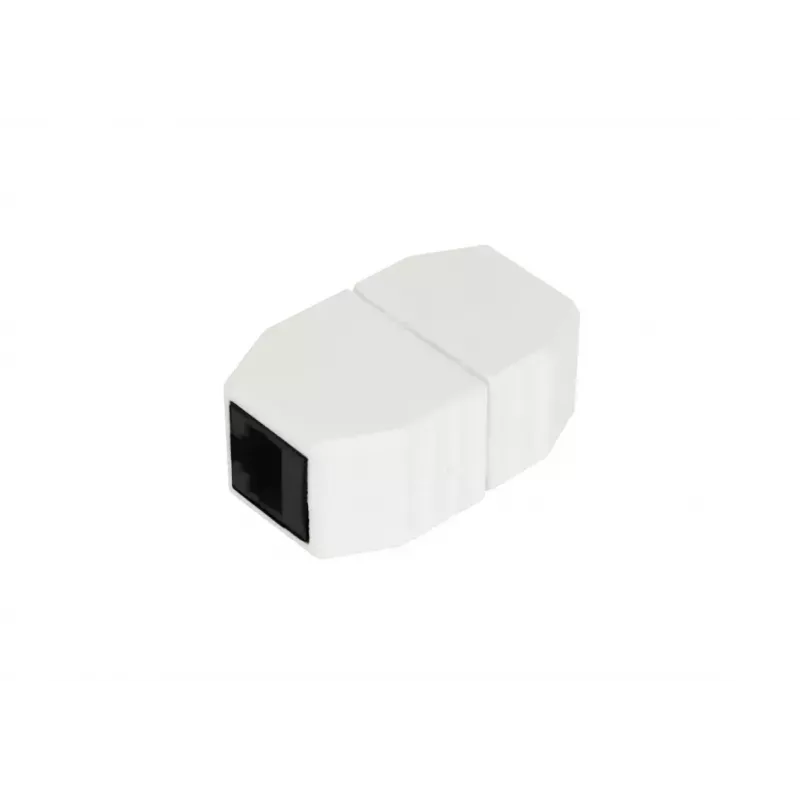

The ALLNET ALL-RJ45-MAGNET is a magnetic RJ45 coupling designed to protect network devices and RJ45 sockets from damage caused by excessive tensile force. The two parts attach via magnetic contacts and separate when the pulling force exceeds a predefined threshold, preventing RJ45 sockets from being torn out and devices from being damaged. The coupling is compatible with existing RJ45 infrastructure and supports Cat5–Cat6a connectors, PoE according to IEEE 802.3af/at/bt (up to 90 W) and data rates up to 10 Gbps.

Advantages

This magnetic adapter reliably prevents mechanical damage to RJ45 ports by separating before the connector or device is harmed. It is compatible with standard RJ45 plug and socket designs and supports Power over Ethernet (IEEE 802.3af/at/bt) up to 90 W. The design allows continued use of existing cabling and connector types while offering added protection in environments such as hospitality and managed IT deployments.

Suitable for

• Hospitality installations (hotels, conference rooms)
• IT system houses and managed service environments
• Wall-mounted or exposed network devices where accidental cable pulls are a risk
• PoE-powered devices up to 90 W (IEEE 802.3af/at/bt)

Key specifications

• Product name: ALLNET ALL-RJ45-MAGNET
• Connector type: RJ45 magnetic coupling, compatible with Cat5–Cat6a
• PoE support: IEEE 802.3af/at/bt, up to 90 W
• Data rate: up to 10 Gbps
• Color: White
• MPN: ALL-RJ45-Magnet
• EAN: 4038816193971

How to use

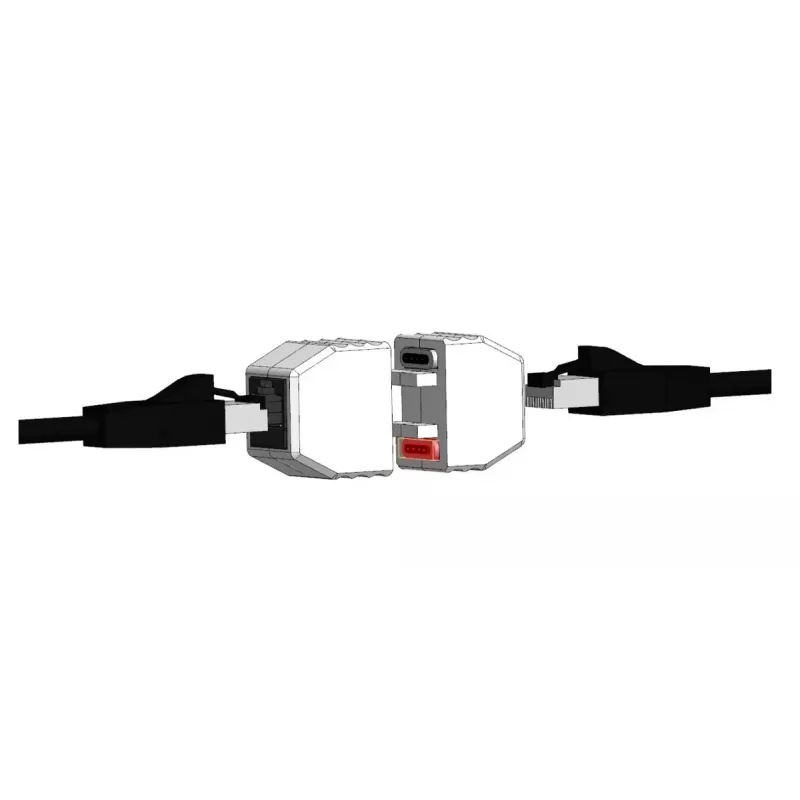

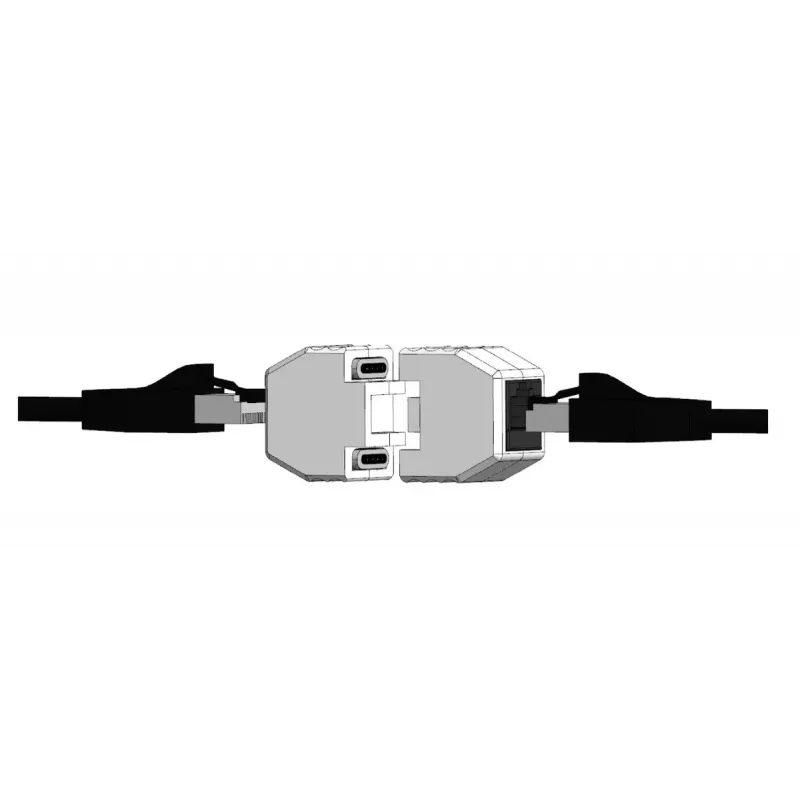

Install the magnetic coupling between the RJ45 cable and the device’s RJ45 socket by connecting the two parts until the magnetic contacts engage. Under normal conditions the coupling behaves like a standard RJ45 connection and supports data and PoE transmission. If the cable is pulled with excessive force, the magnetic parts will detach to protect the socket and connected equipment. Reconnect the parts by bringing them back into contact when safe to do so.

Recommendations

Use this magnetic RJ45 coupling in locations where cables are frequently moved or where accidental pulls can occur. Verify compatibility with your PoE equipment and cabling category (Cat5–Cat6a) and ensure connections are made correctly to maintain data and power delivery.
