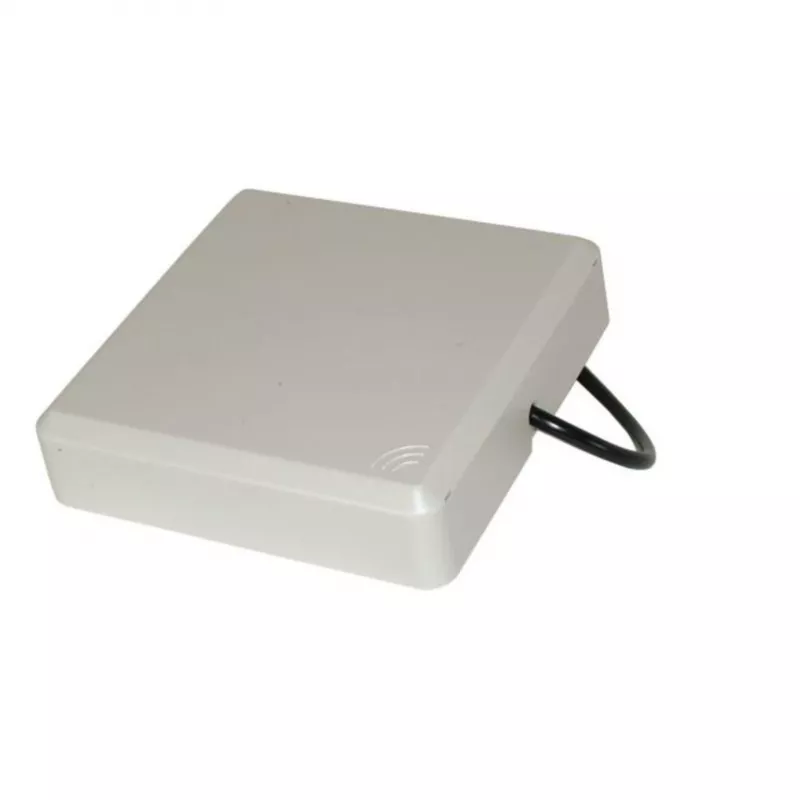

ALLNET ALL19011 antena sectorial exterior 9 dBi 2,4 GHz conector hembra N

The ALLNET ALL19011 is a high-performance 9 dBi sector antenna designed for outdoor 2.4 GHz Wi-Fi applications. It supports IEEE 802.11b/g/n standards and features a directional radiation pattern with a horizontal beamwidth of 70° and vertical beamwidth of 65°, making it ideal for point-to-multipoint and coverage extension. The antenna is constructed from UV-resistant ABS and includes a pole mount kit for easy installation. With a robust design capable of withstanding wind loads up to 200 km/h and operating temperatures from -20°C to 65°C, it ensures reliable performance in harsh environments.

Advantages

High gain of 9 dBi provides extended range and improved signal strength. Directional sector pattern reduces interference and increases network capacity. Durable outdoor construction with UV-resistant materials ensures long-term reliability. Easy pole mount installation with included kit saves time and effort.

Suitable for

• Outdoor Wi-Fi coverage for campuses, warehouses, and industrial sites
• Point-to-multipoint wireless bridges
• WISP (Wireless Internet Service Provider) deployments
• Extending Wi-Fi range in rural or remote areas

Key specifications

• Frequency Range: 2400-2500 MHz
• Gain: 9 dBi
• Horizontal Beamwidth: 70°
• Vertical Beamwidth: 65°
• Polarization: Vertical
• Connector: N-Type Female
• Impedance: 50 Ohm
• VSWR: < 1.5:1
• Front-to-Back Ratio: > 20 dB
• Material: UV-resistant ABS
• Mounting: Pole Mount (kit included)
• Operating Temperature: -20°C to 65°C
• Wind Loading: Up to 200 km/h
• DC Grounded: Yes

Recommendations

For optimal performance, pair the ALL19011 with a compatible 2.4 GHz access point or router. Ensure proper alignment for maximum coverage. The antenna is weatherproof and suitable for continuous outdoor use.
