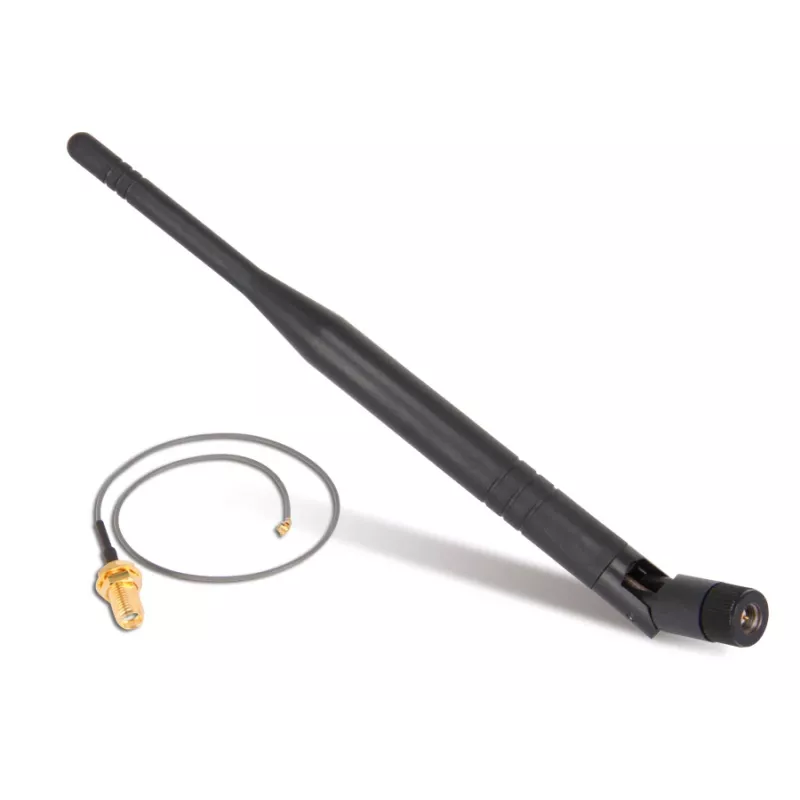

ALLNET Antena GSM 5dBi 4G/LTE con cable U.FL a RP-SMA FriendlyELEC (ALL191005)

The ALLNET GSM Antenna 5dBi is a high-performance cellular antenna designed for 4G/LTE, 3G, and 2G applications. It includes a pre-attached U.FL to RP-SMA cable for easy connection to compatible devices such as routers, gateways, and IoT modules. This antenna is ideal for improving signal strength in areas with weak coverage, ensuring reliable data and voice communication.

Advantages

With a gain of 5 dBi, this antenna provides enhanced signal reception and transmission compared to standard internal antennas. The compact design and direct screw-on mounting make installation straightforward. The included 15 cm RG178 coaxial cable with U.FL connector allows direct connection to modules without additional adapters.

Suitable for

• 4G/LTE routers and modems
• IoT and M2M devices
• GSM gateways and terminals
• Industrial cellular applications

Key specifications

• Antenna Type: GSM/4G/LTE Cellular Antenna
• Gain: 5 dBi
• Frequency Range: 698-960 MHz and 1710-2700 MHz
• Impedance: 50 Ohm
• VSWR: ≤ 2.0
• Polarization: Vertical
• Connector (Antenna): RP-SMA Male
• Connector (Cable Device Side): U.FL / IPEX
• Connector (Cable Antenna Side): RP-SMA Female
• Cable Length: 15 cm
• Cable Type: RG178 Coaxial
• Mounting: Direct Screw-on
• Housing Material: ABS
• Color: Black

Recommendations

For optimal performance, ensure the antenna is mounted in a location with minimal obstructions. This antenna is compatible with devices that have a U.FL connector on the module side and an RP-SMA female connector on the antenna side. If your device has a different connector, a pigtail adapter may be required.
