ALLNET Bandeja accesoria de 19" extraíble para armario de 1000 mm de profundidad, gris claro, 750-850 mm

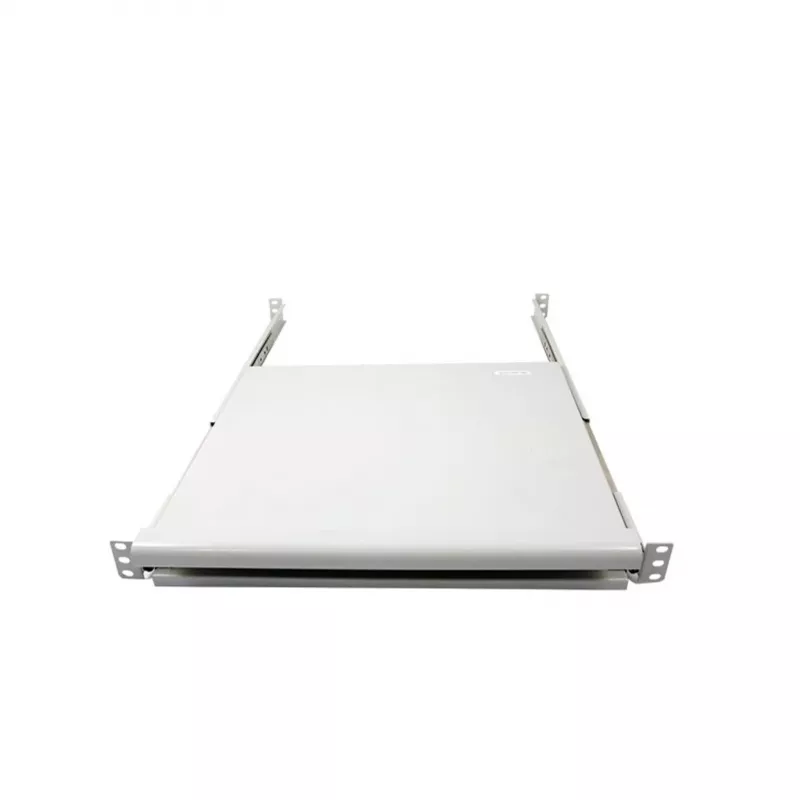

The ALLNET ALL-S0002167 is a robust 1U telescopic shelf designed for 19-inch racks with a cabinet depth of 1000 mm. Its adjustable installation depth from 750 to 850 mm allows flexible mounting of various components. Made from sheet steel with a light grey (RAL 7035) dip-primed and powder-coated finish, this shelf offers a static load capacity of 100 kg and a dynamic load capacity of 50 kg when extended. Ideal for organizing and supporting equipment in server rooms and data centers.

Advantages

High load capacity, extendable design for easy access, durable steel construction, and simple installation with included fastening material.

Suitable for

• Mounting network switches, patch panels, or other 19-inch equipment
• Use in server racks with 1000 mm depth
• Applications requiring adjustable depth for optimal component placement

Key specifications

• Product Type: Telescopic Shelf
• Mounting Standard: 19-inch Rack
• Height Units (U): 1U
• Compatible Cabinet Depth: 1000 mm
• Installation Depth (Adjustable): 750 - 850 mm
• Static Load Capacity: 100 kg
• Dynamic Load Capacity (Extended): 50 kg
• Material: Sheet Steel
• Color: Light Grey (RAL 7035)
• Surface Finish: Dip-primed, Powder-coated
• Width: 482.6 mm
• Height: 44 mm
• Extendable: Yes
• Mounting Position: Front and Rear Mounting Angles
• Application: For mounting components in 19" enclosures
• Included Accessories: Fastening material
• Series: Rittal PS
• EAN: 4038816032645

Recommendations

For optimal performance, ensure the rack depth is at least 1000 mm and use appropriate mounting hardware. The shelf is suitable for heavy equipment up to 100 kg static load.
