Bandeja Digitus DN-19 TRAY-1-SW para montaje fijo en armarios de 19"

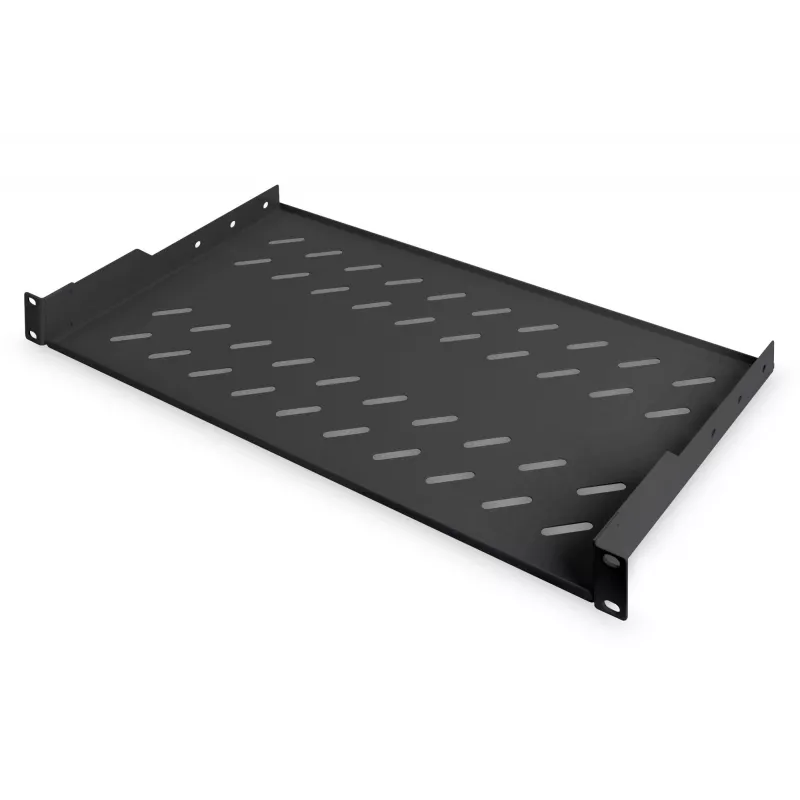

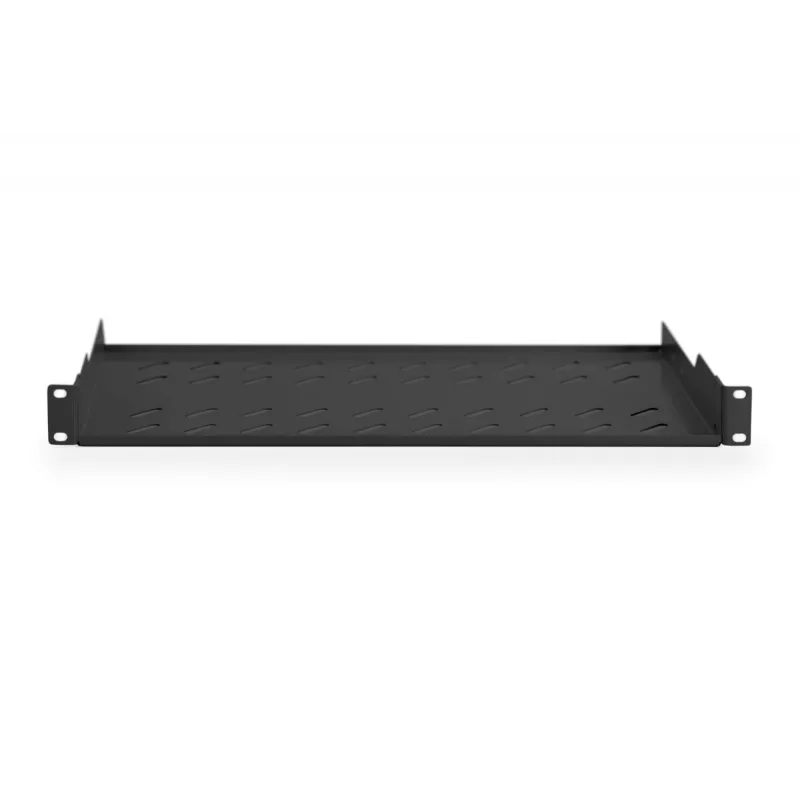

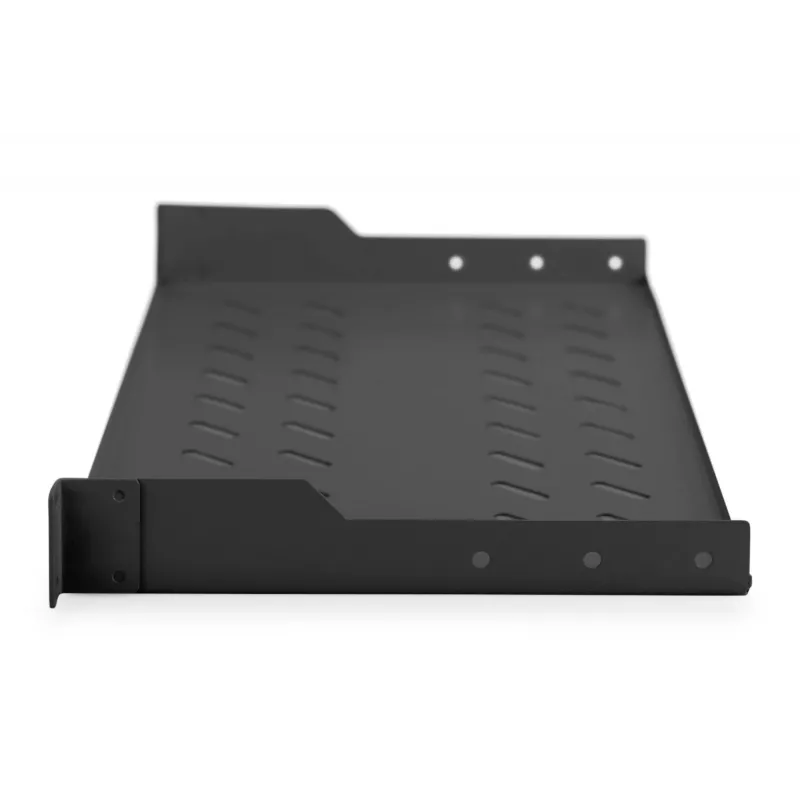

Storage shelf for accessories or components designed for 483 mm (19") cabinets, occupying 1 height unit with a slim profile and 250 mm installation depth. The shelf is made of robust perforated sheet steel to support airflow inside the cabinet and is rated for loads up to 15 kg. It mounts directly to the front 483 mm (19") profile rails using integrated mounting brackets with two screw holes each.

Advantages

The shelf provides a compact, space-saving surface for items that cannot be mounted on 483 mm (19") rails. Its perforated steel construction improves ventilation within the cabinet while maintaining a high load capacity. Installation requires only two attachment points, simplifying fitment to standard 483 mm (19") profile rails.

Key specifications

• Fit: 483 mm (19") cabinet, front profile rails
• Height: 1 U (one height unit)
• Installation depth: 250 mm
• Load capacity: up to 15 kg
• Material: perforated sheet steel

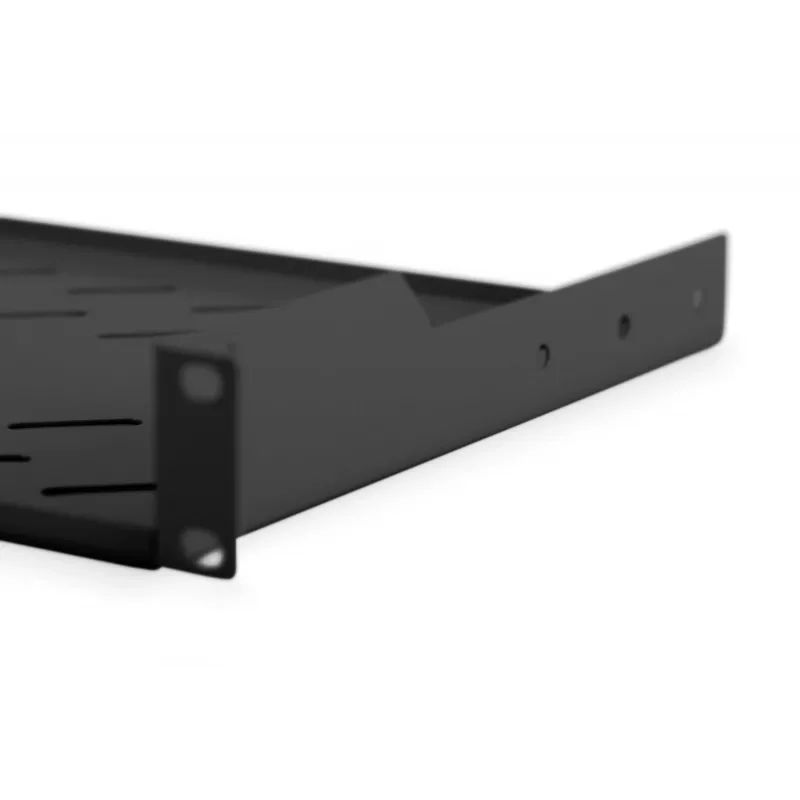

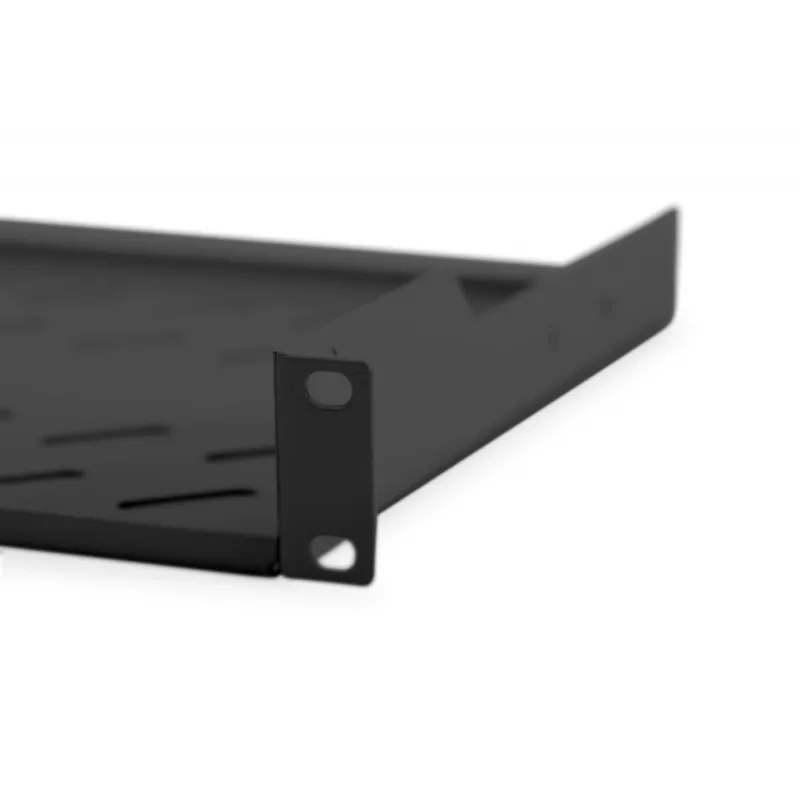

• Mounting: integrated brackets with two screw holes per bracket

How to use

Align the shelf with the front 483 mm (19") profile rails in the cabinet and secure it using the integrated mounting brackets and appropriate screws through the two screw holes on each bracket. Ensure the shelf is level and firmly fixed before placing components or accessories on it. Do not exceed the specified load capacity of 15 kg and maintain clear airflow around installed equipment.

Recommendations

Use suitable cabinet mounting screws and verify compatibility with your 483 mm (19") enclosure. Distribute weight evenly and avoid placing concentrated heavy objects on the shelf to preserve structural integrity and ventilation.
