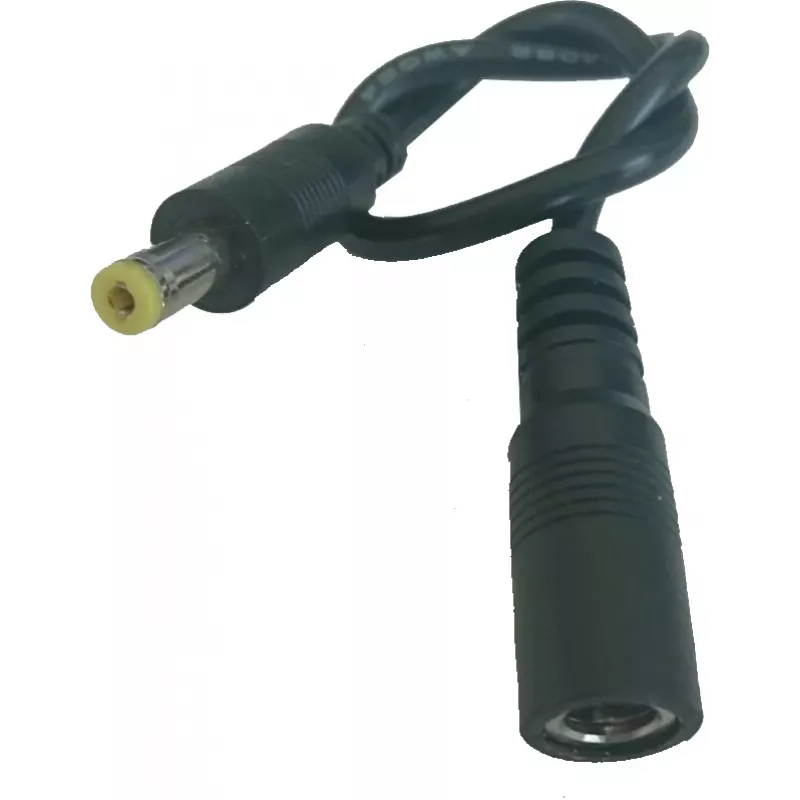

ALLNET cable adaptador de alimentación DC 5.5x2.1mm hembra a 4.75x1.7mm macho, 15cm, negro

The ALLNET DC Power Adapter Cable (ALL_DC_5,5-4,75_Adapter) is a high-quality adapter cable designed to convert a standard 5.5x2.1mm DC barrel jack to a 4.75x1.7mm DC plug. This cable allows you to power devices that require a 4.75x1.7mm DC input from a power supply with a 5.5x2.1mm output. With a length of approximately 15 cm, it provides a compact and convenient solution for connecting your devices.

Advantages

This adapter cable eliminates the need for multiple power supplies by enabling compatibility between different DC connector sizes. It maintains the original polarity (center positive) and supports up to 24V DC and 3A, making it suitable for a wide range of low-power electronics. The durable PVC and copper construction ensures reliable performance and long-lasting use.

Suitable for

• Powering devices with a 4.75x1.7mm DC input jack from a 5.5x2.1mm power source
• Replacing lost or damaged power cables for compatible devices
• Testing and prototyping with different DC power supplies

Key specifications

• Input Connector: DC Barrel Jack, Female, 5.5mm outer diameter, 2.1mm inner diameter
• Output Connector: DC Barrel Plug, Male, 4.75mm outer diameter, 1.7mm inner diameter
• Polarity: Center Positive
• Maximum Voltage: 24V DC
• Maximum Current: 3A
• Cable Length: Approx. 15 cm
• Colour: Black
• Material: PVC, Copper

Recommendations

Ensure that your power supply's voltage and current ratings do not exceed the maximum ratings of this adapter cable. Always verify the polarity of your devices before connecting.
