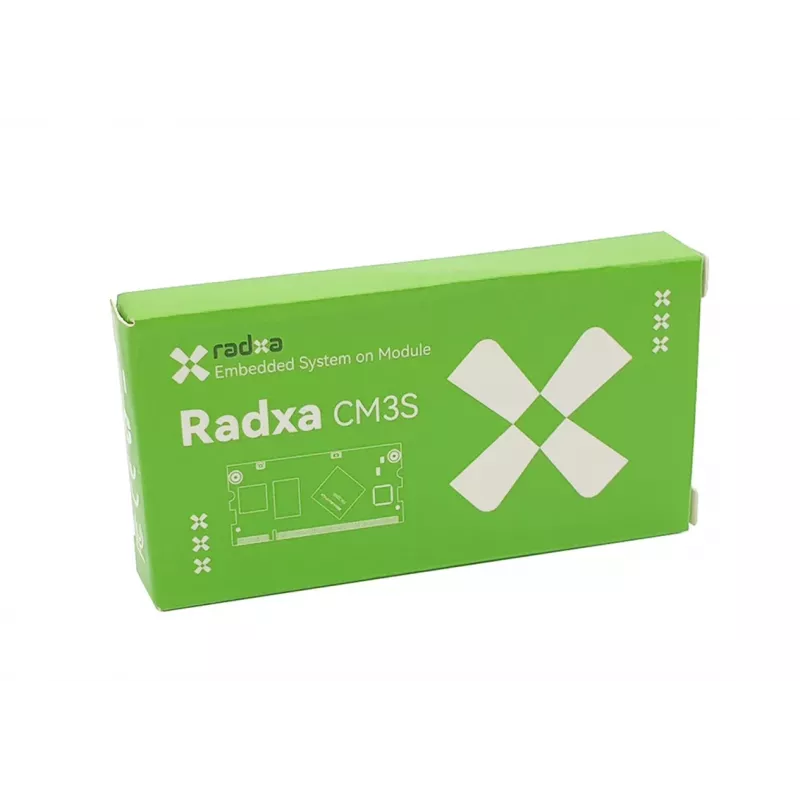

ALLNET Radxa CM3S 1GB 8GB RK3566 1,6GHz LPDDR4 8GB eMMC (RM117-D1E8)

The ALLNET Radxa CM3S is a compact, high-performance System-on-Module (SoM) based on the Rockchip RK3566 processor. With 1GB LPDDR4 RAM and 8GB eMMC storage, it is ideal for embedded applications, edge computing, and IoT solutions. Its industrial-grade design ensures reliable operation in harsh environments.

Advantages

Powerful quad-core Cortex-A55 CPU with Mali-G52 GPU for smooth multimedia. Supports 4K video decoding and encoding. Rich connectivity via SODIMM interface including PCIe, USB, MIPI DSI/CSI, and Gigabit Ethernet. Industrial temperature range (-40°C to 85°C) for extreme conditions.

Suitable for

• Embedded systems and single-board computers
• Edge computing and IoT gateways
• Digital signage and multimedia players
• Industrial automation and control

Key specifications

• Processor: Rockchip RK3566, quad-core Cortex-A55 @ 1.6GHz
• GPU: ARM Mali-G52 2EE
• NPU: 0.8 TOPS
• RAM: 1GB LPDDR4
• Storage: 8GB eMMC 5.1
• Video: 4K@60fps decode, 1080p@60fps encode
• Interface: 200-pin SODIMM connector
• PCIe: 1x PCIe 2.1 (1 lane)
• USB: 1x USB 2.0 OTG, 1x USB 2.0 Host (via carrier)
• Display: 1x MIPI DSI (4 lanes)
• Camera: 2x MIPI CSI (4 lanes total)
• Ethernet: Gigabit Ethernet (via carrier)
• GPIO: Up to 28 pins
• Operating temperature: -40°C to 85°C
• Power: 5V DC (via carrier)

Recommendations

This module requires a compatible carrier board for full functionality. Ideal for developers and integrators seeking a powerful yet compact computing solution.
